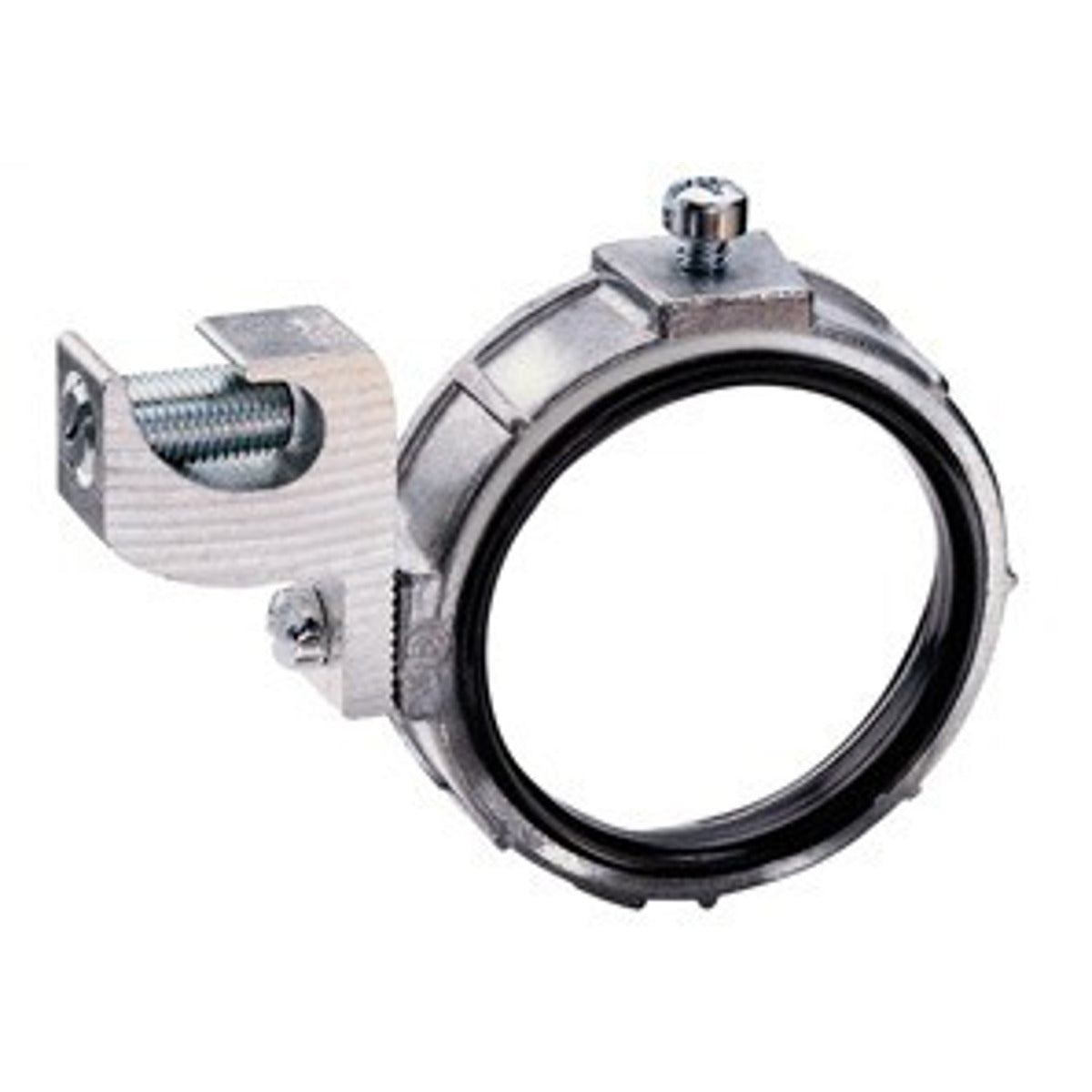

Bridgeport 390-DC40 Bushing Insulated Grounding Zinc Die Cast 4 Inch

Bridgeport 390-DC40 Bushing Insulated Grounding Zinc Die Cast 4 Inch

Brand: BRIDGEPORT
SKU: 390-DC40
Availability: Out Of Stock

Earn [points_amount] when you buy this item.
$223.40
$223.40
Manuals:
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The Bridgeport 390-DC40 is a bushing designed for insulated grounding applications. This product helps in terminating service conduits to cabinets. It has a grounding lug made from aluminum alloy and is rated for high temperatures.

  • Grounding lug provides bonding jumper to the neutral busbar.
  • Constructed from durable zinc die-cast material.
  • Plastic metal liner prevents wire insulation damage.

Product Highlights

This bushing is suitable for use in multiple applications where reliable grounding is needed.

Product Information

Standard Information

  • Catalog Number: 390-DC40
  • Manufacturer: Bridgeport Fittings, LLC

Technical Specifications

  • Brand: Bridgeport
  • Material: Zinc Die Cast
  • Trade Size: 4 IN
  • Temperature Rating: 150 Degrees C
  • Color: Gray; Black Insulator
  • Finish: Ball Burnished
  • NEMA Rating: FB-1
  • Grounding Lug Wire Capacity: #6 - #250 MCM
