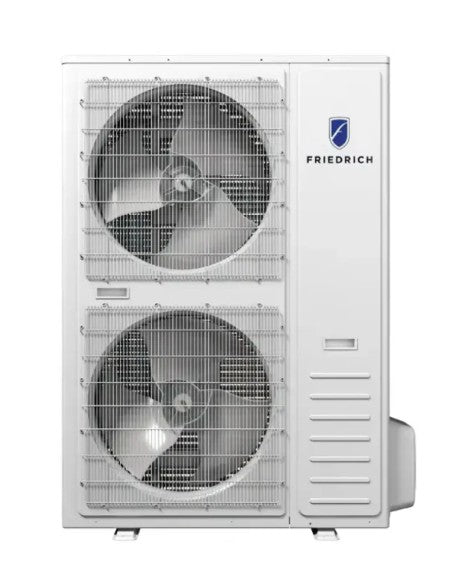

Breeze WFPU17Y363D Select Inverter Heat Pump 36K BTU/H

Product Description

The BREEZE WFPU17Y363D Select Series delivers energy-efficient performance with flexible installation options. This inverter heat pump condenser operates as quietly as 35 dB(A) and is equipped with a rotary inverter using Precision Inverter technology. It uses R-454B refrigerant and is compatible with existing air handlers or gas furnaces when paired with a rated R-454B coil.

• Up to 18.0 SEER2, 10.0 EER2, and 9.0 HSPF2 for cooling and heating.
• Operates in heating mode down to -4�F with a built-in base pan heater.
• Supports a maximum line length of 131 ft and a height differential of 98 ft.

Product Highlights

The Select Series heat pump offers dependable performance, quiet operation, and flexible installation, making it suitable for new and retrofit applications.

Product Information

Standard Information

• Brand: BREEZE
• Manufacturer Part Number: WFPU17Y363D
• Country of Origin: CHN

Technical Specifications

• ERP ID: 453346
• UOM: EA
• AHRI - Usage: Outdoor
• CFM: 3,800
• Cooling Capacity: 35,000
• EER2: 9.8
• Energy Star Rated: No
• Heating Capacity: 36,000
• Prop 65: Yes
• SEER2: 17
• Equipment Type: Heat Pump
• Product Family: WFPU
• Unit Type: CBU - Compressor Bearing Unit
• Compressor Type: Rotary
• Condenser Motor HP: 1/7
• Condenser Motor RPM: 880
• Cycle/Hertz: 60 Hz
• Maximum Overcurrent Protection (MOCP): 30
• Phase: Single
• Rated Current Amps (RCA): 13.09
• Rated Load Amps (RLA): 0.8
• Substantial Commodity: Steel; Copper; Aluminum
• Voltage: 208-230 VAC
• Liquid Line Fitting Type: Sweat or Braze
• Sound Level (dBA): 57
• Suction Line Fitting Type: Sweat or Braze
• Refrigerant: R-454B
• Liquid Line Size (OD): 3/8"
• Metering Device: EEV - Electronic Expansion Valve
• Suction Line Size (OD): 3/4"
