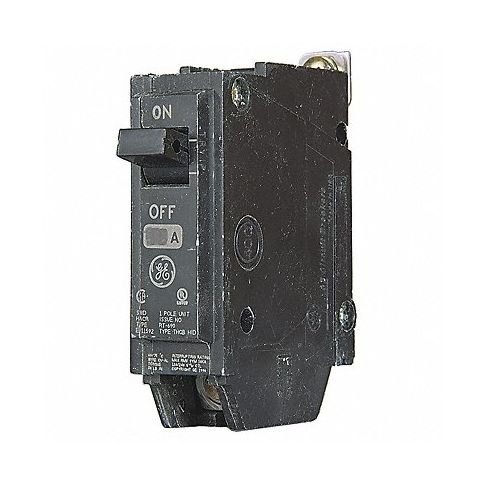

BREAKERS UNLIMITED THQB1115 Circuit Breaker 15A Bolt On 120/240V 1P

Product Description

The BREAKERS UNLIMITED THQB1115 circuit breaker is a miniature model designed to enhance safety and reliability in electrical systems. It is ideal for use in panelboards and load centers, providing essential protection for appliances and machinery. This circuit breaker accommodates a capacity of 15A, allowing it to handle significant electrical loads while meeting UL safety standards. This product is particularly effective in HACR applications, ensuring the protection of electrical circuits from overloads and short circuits.

• Stable installation compared to plug-in models
• Automatically interrupts currents during faults
• Connects through bus bars for efficient power supply

Product Highlights

This miniature circuit breaker features a bolt-on style and is suitable for lighting panels and load centers, ensuring easy installation.

Product Information

Standard Information

• Item: Miniature Circuit Breaker
• Amps: 15 A

Technical Specifications

• AC Voltage Rating: 120/240V AC
• Circuit Breaker Type: Standard
• Number of Poles: 1
• Circuit Breaker Actuator: Toggle
• Circuit Breaker Mounting Style: Bolt On
• Phase: Single
• Max. AIR Rating: 10kA at 120/240V AC
• For Use With: Lighting Panels, Load Centers
• Terminal Connection: Screw Clamp
• Frame Size: 100A/THQ
• Length: 3.53 in
• Width: 1 in
• Depth: 3.28 in
• Min. Wire Size: 12 AWG (Al), 14 AWG (Cu)
• Max. Wire Size: 8 AWG
• Standards: UL Listed
• Manufacturer: GE
• MPN: THQB1115
• Country of Origin: ZZ
• UNSPSC: 39121601
