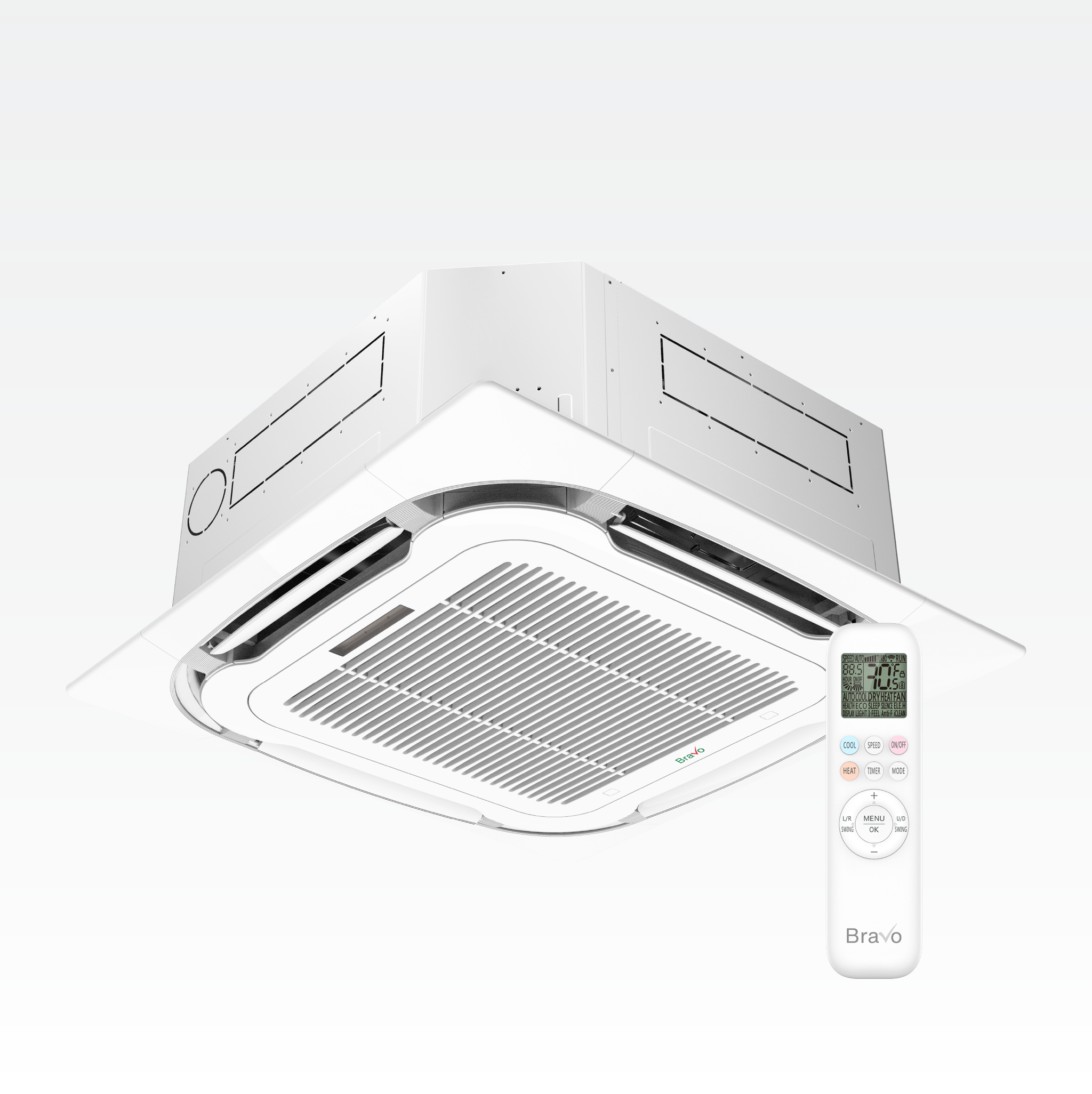

BRAVO ROMA BRV-P09CT-230VI Ceiling Cassette 9K BTU Indoor Unit

Product Description

The BRAVO ROMA BRV-P09CT-230VI is a 9,000 BTU ceiling cassette indoor unit designed for multi-zone ductless mini split systems. This compact four-way discharge cassette installs flush into standard drop ceilings, delivering discreet, distributed airflow ideal for commercial offices, retail spaces, hospitality environments, and residential applications where wall-mounted units are impractical. The unit features inverter-driven technology paired with R32 refrigerant for reduced environmental impact and efficient year-round climate control.

Engineered for 208-230V single-phase power, this indoor unit integrates with BRAVO multi-zone outdoor condensers to provide zoned cooling and heating. The cassette configuration enables uniform air distribution across larger floor areas while maintaining clean sight lines and maximizing usable wall and floor space.

Key Features

• Four-way ceiling cassette design with 360° airflow distribution for even temperature control
• R32 low-GWP refrigerant for environmentally responsible operation
• Inverter compressor technology for precise capacity modulation and reduced energy consumption
• Compact 22.44" × 22.44" panel fits standard 2' × 2' ceiling grid
• WiFi-enabled smart control via BRAVO mobile app for remote monitoring and adjustment
• Quiet operation with multiple fan speed settings including Sleep and Turbo modes

Compatibility

The BRV-P09CT-230VI is compatible with BRAVO multi-zone outdoor units operating on 208-230V, 1-phase, 60Hz power. This indoor unit connects with 1/4" liquid line and 3/8" gas line refrigerant piping. Verify outdoor unit capacity and port availability prior to system configuration. Compatible outdoor models include BRV-M18-230VO and other BRAVO Milano series multi-zone condensers. Cross-reference manufacturer submittal data for confirmed system matches.

Installation Notes

Ceiling cassette installation requires minimum 10.24" above-ceiling clearance for the unit body. Maintain adequate access for service and condensate drainage. Refrigerant piping maximum length and elevation difference must comply with outdoor unit specifications. Professional HVAC installation by licensed technicians required; improper handling of R32 refrigerant poses safety hazards. Ensure proper support structure for unit weight and vibration isolation per local code.

Technical Specifications

• Cooling Capacity: 9,000 BTU/h
• Power Supply: 208-230V, 1Ph, 60Hz
• Voltage Range: 165-264V
• Refrigerant Type: R32
• Refrigerant Piping: 1/4" liquid / 3/8" gas
• Unit Dimensions (W×D×H): 22.44" × 22.44" × 10.24"
• Packing Dimensions (W×D×H): 28.35" × 25.59" × 11.42"
• System Type: Multi-zone indoor unit

Standard Information

• Brand: BRAVO ROMA
• MPN: BRV-P09CT-230VI
• MasterSKU: 60818215-405f-48a7-b339-b1c7e9a76699
• Country of Origin: Not specified in manufacturer documentation
