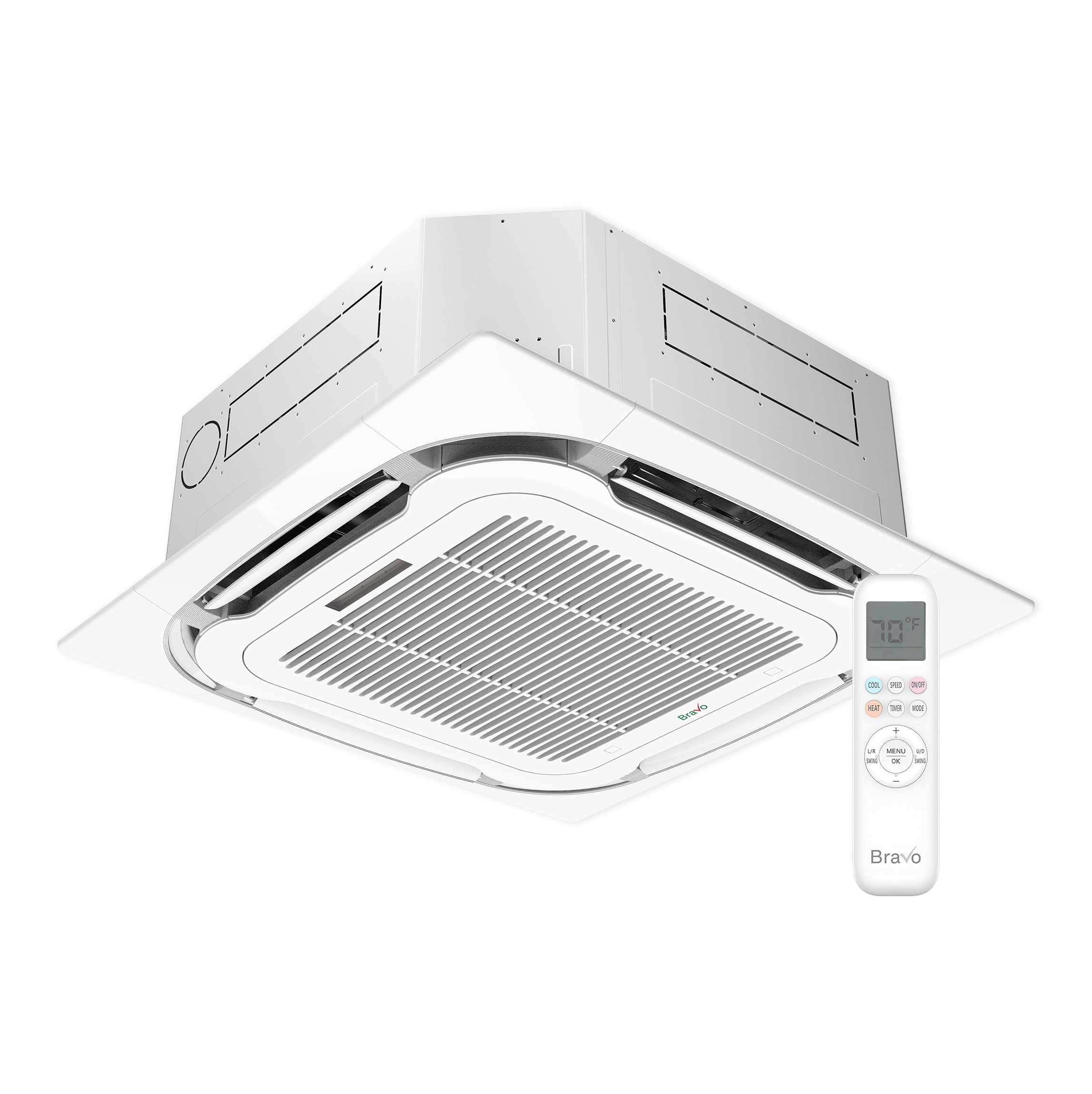

BRAVO ROMA BRV-M12CT-230VI Ceiling Cassette Indoor Unit 12K BTU

Product Description

The BRAVO ROMA BRV-M12CT-230VI is a 12,000 BTU ceiling cassette indoor unit engineered for multi-zone ductless mini-split systems. Designed for discreet overhead installation, this unit delivers 360° four-way airflow distribution for consistent temperature control across medium-sized commercial and residential spaces. The low-profile grille blends seamlessly with standard ceiling grids, making it ideal for offices, retail environments, hospitality settings, and open-concept residential areas where wall-mounted units are impractical or undesirable.

This indoor unit pairs with BRAVO multi-zone outdoor condensers to provide both cooling and heating capabilities. The inverter-driven compressor compatibility ensures efficient part-load operation, while the R32 refrigerant charge reduces environmental impact compared to legacy refrigerants. Built-in WiFi connectivity enables remote management through the BRAVO Smart App, and the included wireless remote provides convenient local control.

Key Features

• 360° four-way airflow with auto-swing for uniform room coverage
• Whisper-quiet operation at 40 dB(A) high / 36 dB(A) medium / 33 dB(A) low
• R32 refrigerant with lower global warming potential
• Built-in Smart App WiFi connectivity for remote control and scheduling
• Self-cleaning anti-mildew function maintains indoor air quality
• Eco, Super, Sleep, and Turbo modes for flexible operation

Compatibility

The BRV-M12CT-230VI is compatible with BRAVO multi-zone outdoor units including BRV-M24-230VO, BRV-M30-230VO, BRV-M36-230VO, and BRV-M42-230VO systems. This unit requires the BRV-PN9-18CT panel (sold separately or included in bundle configurations). Designed for 208-230V single-phase 60Hz electrical systems. Confirm total connected indoor capacity does not exceed outdoor unit maximum capacity.

Installation Notes

Licensed HVAC installation required for warranty validation; register within 60 days if required by terms. Unit requires 1/4" liquid line and 3/8" gas line refrigerant connections. Minimum 5/8" drainage water pipe required. Provide adequate ceiling cavity clearance for 22.44" × 22.44" × 10.24" unit body. Panel dimensions are 25.59" × 25.59" × 2.17". Follow all manufacturer wiring, piping, and safety guidelines per installation manual.

Technical Specifications

• Cooling Capacity: 12,000 Btu/h
• Heating Rated Capacity: 12,000 Btu/h
• Power Supply: 208-230V, 1Ph, 60Hz
• Voltage Range: 165-264V
• Max Fuse: 5A
• Indoor Airflow: 383 CFM
• Indoor Noise Level: 40/36/33 dB(A) (Hi/Med/Lo)
• Refrigerant Piping: 1/4" liquid / 3/8" gas
• Drainage: 5/8" water pipe
• Operation Temperature: 60.8°F–89.6°F cooling; 50°F–89.6°F heating
• Unit Dimensions: 22.44" W × 22.44" D × 10.24" H
• Panel Dimensions: 25.59" W × 25.59" D × 2.17" H
• Net/Gross Weight: 30.9/37.5 lb

Standard Information

• Brand: BRAVO ROMA
• MPN: BRV-M12CT-230VI
• MasterSKU: f6fc9708-2df9-4faa-bbc0-3025ff590677
• Product Type: Ceiling Cassette Indoor Unit
• Refrigerant: R32
• System Type: Multi-zone unit
