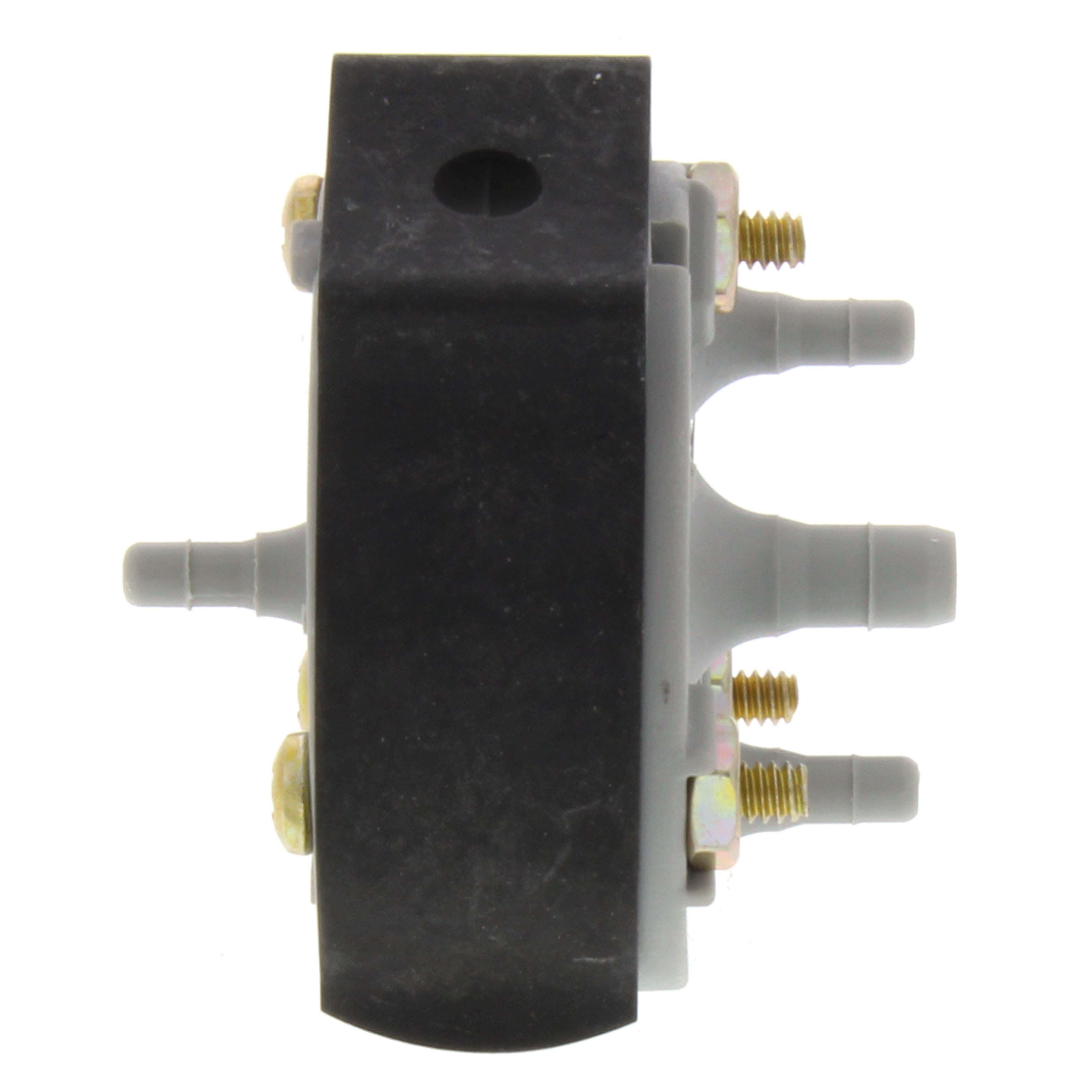

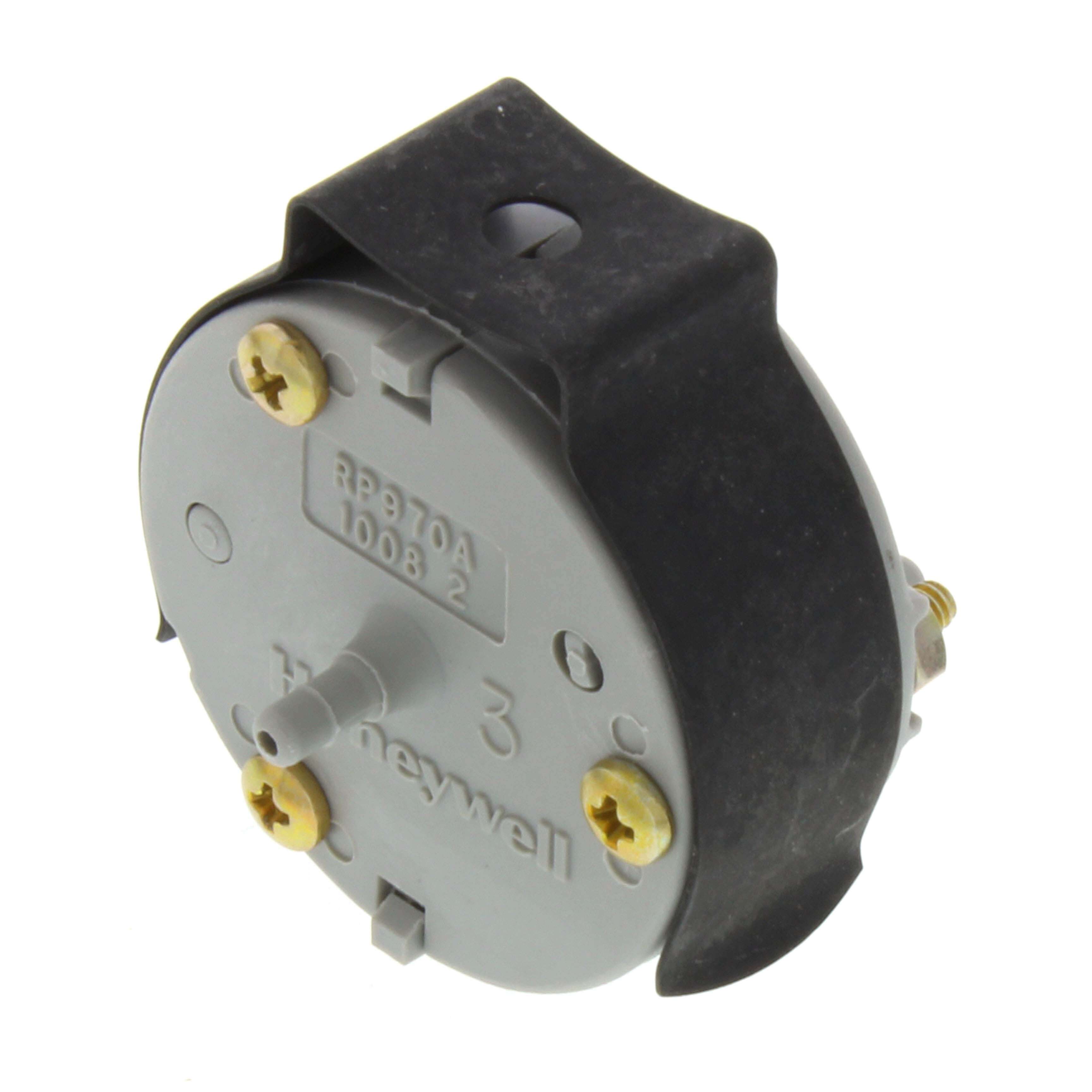

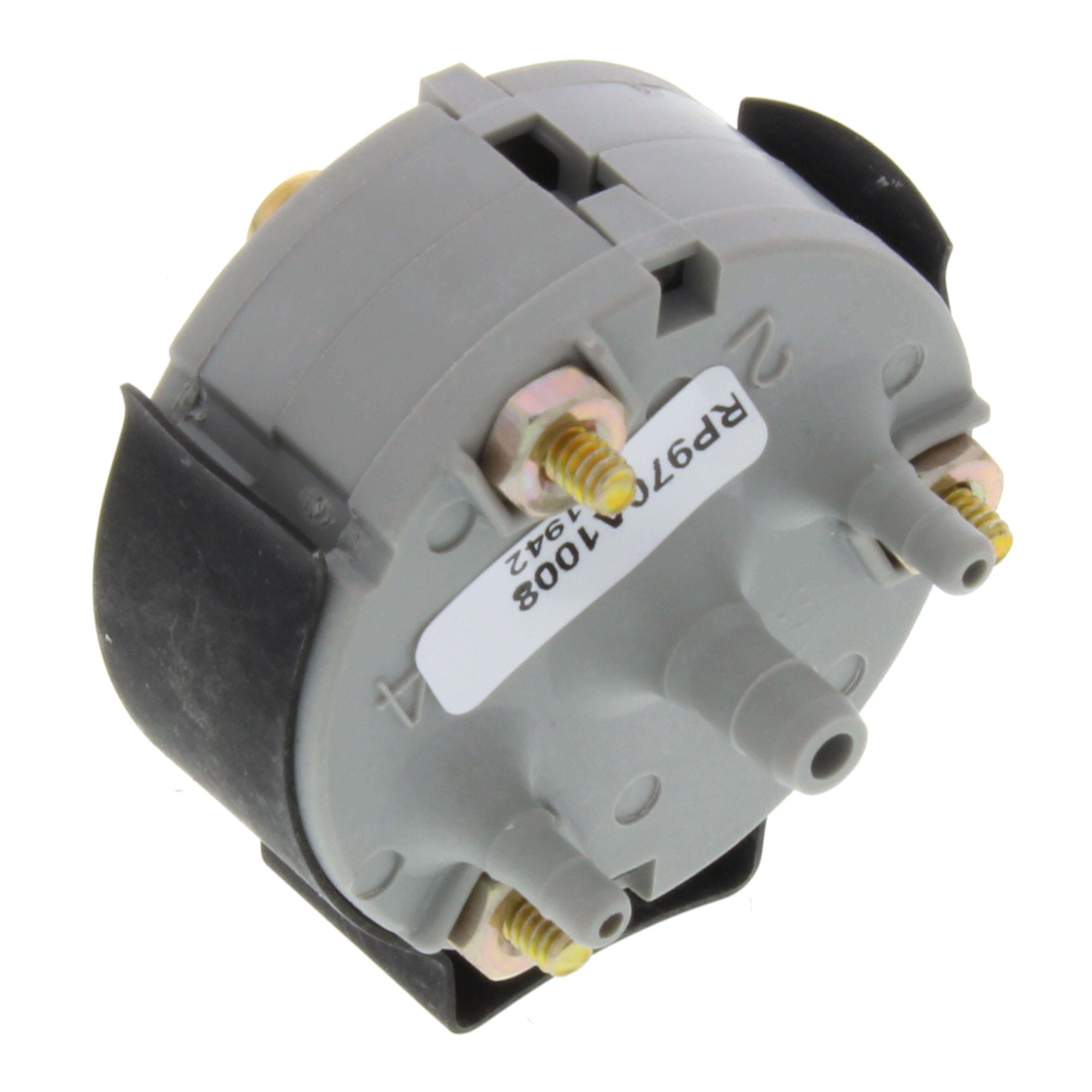

Honeywell RP970A1008 Pneumatic Capacity Relay

Product Description

The Honeywell RP970A1008 Pneumatic Capacity Relay is an industrial-grade device designed to provide reliable pressure control in various applications. Built by Honeywell, this relay ensures precise pressure management and robust performance.

• Accurate Pressure Control
• Robust Construction
• Versatile Applications

Product Highlights

The Honeywell RP970A1008 ensures precise pressure regulation, making it suitable for industrial processes like air compressors and hydraulic systems.

Product Information

Standard Information

• Brand: Honeywell
• Type: Pneumatic Capacity Relay

Technical Specifications

• Action: Direct Acting
• Operation: Increases capacity of branchline pressure to the final control device
• Airflow Usage: 0.002 scfm (1.0 mL/s) maximum
• Air Connections: Barb fittings, Port 1: 1/4 inches O.D. plastic tubing; Other Ports: 5/32 inches O.D. plastic tubing
• Capacity: 0.039 scfm at 1 psi differential (18 mL/s at 5 kPa differential)
• Mounting: Wall, In-line, or panel
• Maximum Safe Operating Pressure: 30 psi
• Operating Humidity Range: 5 to 95% RH
• Temperature Range: 0 F to 140 F
• Includes: 14003030-001, 1 1/2 inches Mounting Clip
• Input Operating Pressure: 0 to 20 psi
