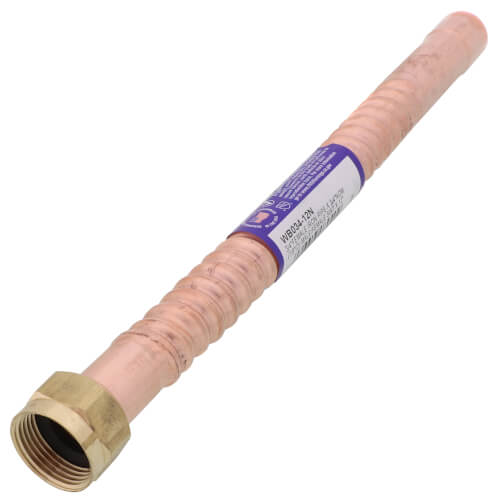

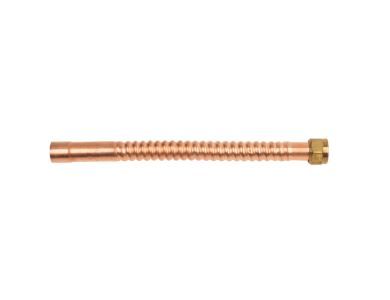

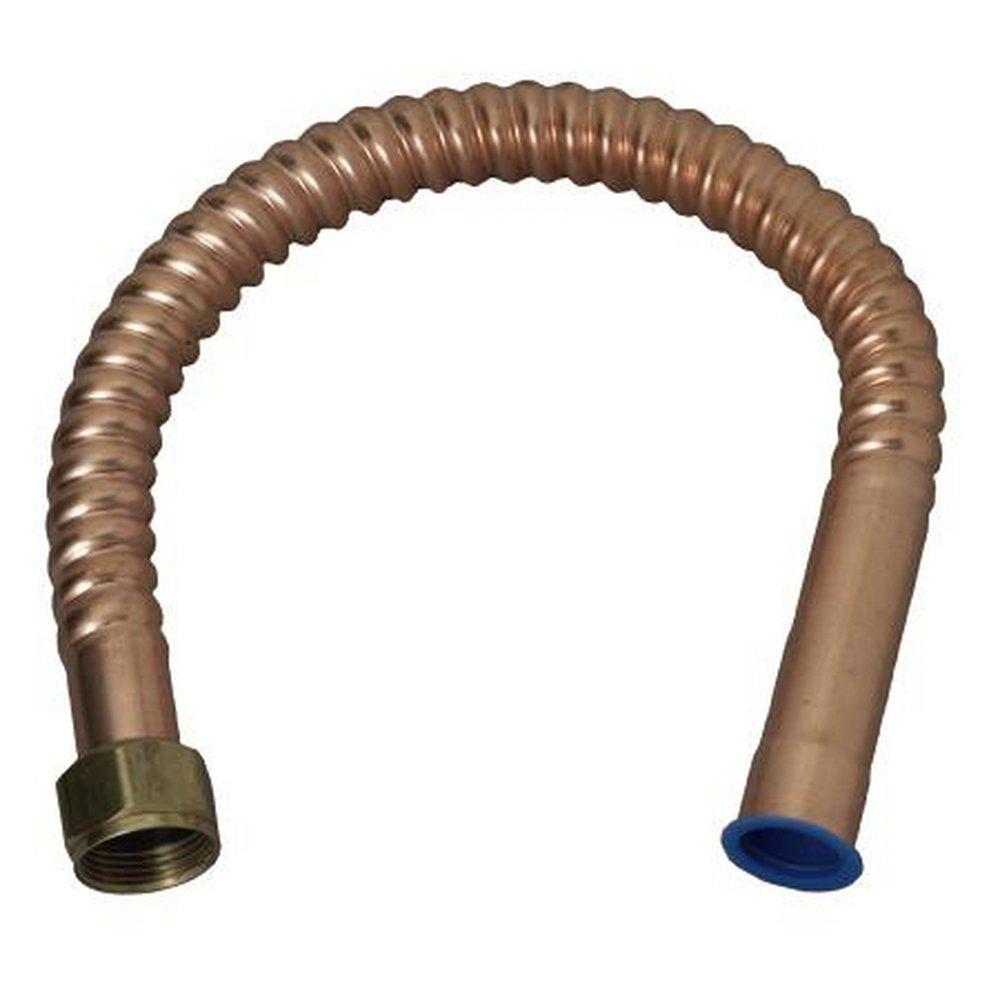

BrassCraft WB034-12N 3/4 inch FIP x 3/4 inch Nominal Male/Female Sweat Water Heater Connector 12 inch

Product Description

The BrassCraft WB034-12N is a 3/4 inch FIP x 3/4 inch nominal male/female sweat connector designed for water heater installations. This BrassCraft part, MPN WB034-12N, is ideal for connecting the water supply to water heaters. It features a built-in dielectric sleeve to prevent galvanic and electrolytic corrosion.

• Integrated dielectric sleeve
• Corrugated copper construction
• Suitable for electric and gas water heaters

Product Highlights

The integrated dielectric sleeve prevents galvanic corrosion, ensuring a long-lasting and reliable connection. The connector is designed for use in exposed locations, facilitating easy access and maintenance.

Product Information

Standard Information

• Manufacturer: BrassCraft
• Brand: BrassCraft
• Model Number: WB034-12N
• UPC: 026613089409

Technical Specifications

• Material: Copper
• Length: 12 inches
• Thread Size: 0.75 inches
• Connector Type: Nipple
• Exterior Finish: Brass
• Maximum Pressure Rating: 125 PSI
• Maximum Operating Temperature: +140 degrees Fahrenheit
• Minimum Operating Temperature: +40 degrees Fahrenheit
• Compliance: CSA (US and Canada) Certified, IAPMO (US and Canada) Listed, UPC Approved
• Weight: 4.8 ounces
• Dimensions: 12 x 0.75 x 0.75 inches
• Use Case: Suitable for use with electric or gas water heaters and softeners
