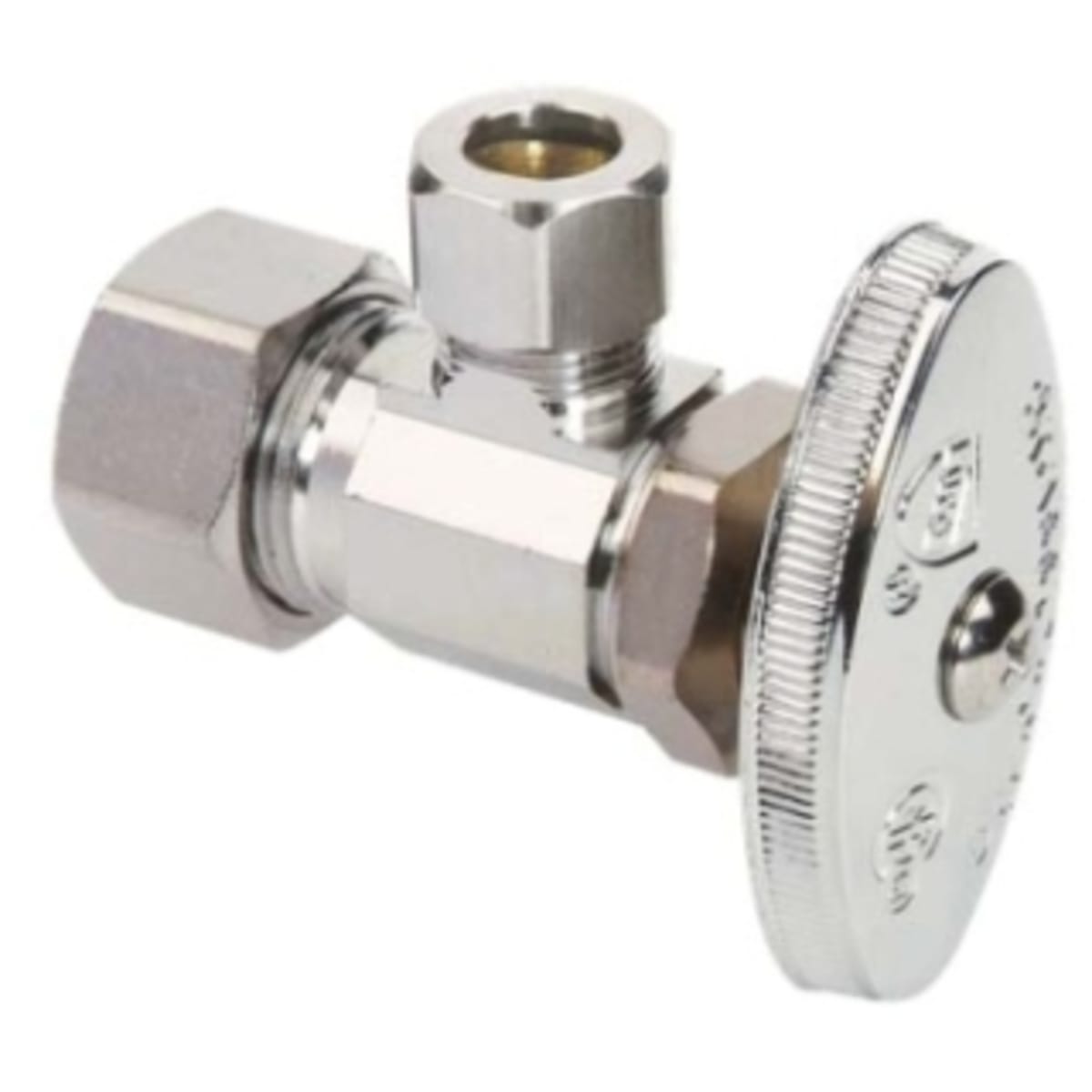

Brasscraft OCR19XC Angle Stop 1/2 Inch x 3/8 Inch Replacement MPN

Product Description

The Brasscraft OCR19XC angle valve is designed to control water flow to plumbing fixtures in homes and buildings. With a one-piece brass body, it is compatible with copper piping, making it suitable for various installation needs.

• Single solid brass construction ensures durability.
• Multi-turn valve design allows for easy water flow control.
• Ideal for residential, commercial, and potable water systems.

Product Highlights

This angle stop provides reliable water flow control with minimal effort, designed for easy maintenance.

Product Information

Standard Information

• Brand: Brasscraft
• MPN: OCR19XC

Technical Specifications

• Actuation Type: Multi-Turn, Oval Knurled Handle
• Additional Information: Lead-Free
• Applicable Standard: CSA (Canada and US), ASME A112.18.1/CSA B125.1, NSF/ANSI 61/372, IAPMO, CUPC
• Application: Residential, Commercial, Potable Water Distribution System
• Body Material: Chrome Plated Brass
• End Connection: Compression x Compression
• End To End Distance: 2.75 inches
• Handle Material: Die-Cast Plated Zinc, Plated ABS Plastic

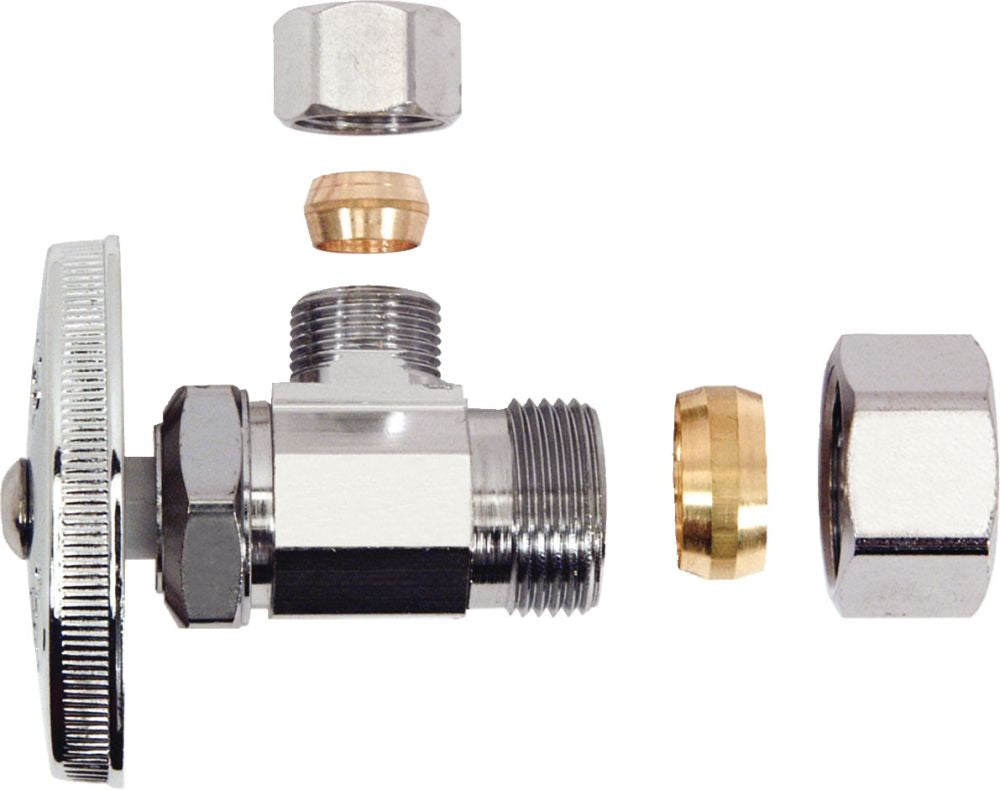

• Inclusions Features: Rubber Bib/Packing Washer, Chrome Plated Brass/POM Stem, Chrome Plated Brass Packing Nut/Compression Nut, Brass Sleeve
• Nominal Size: 1/2 Inch x 3/8 Inch
• Pressure Rating: 125 PSI
• Temperature Rating: 40 to 140 Degrees F
• Type: 1-Piece, Angle
