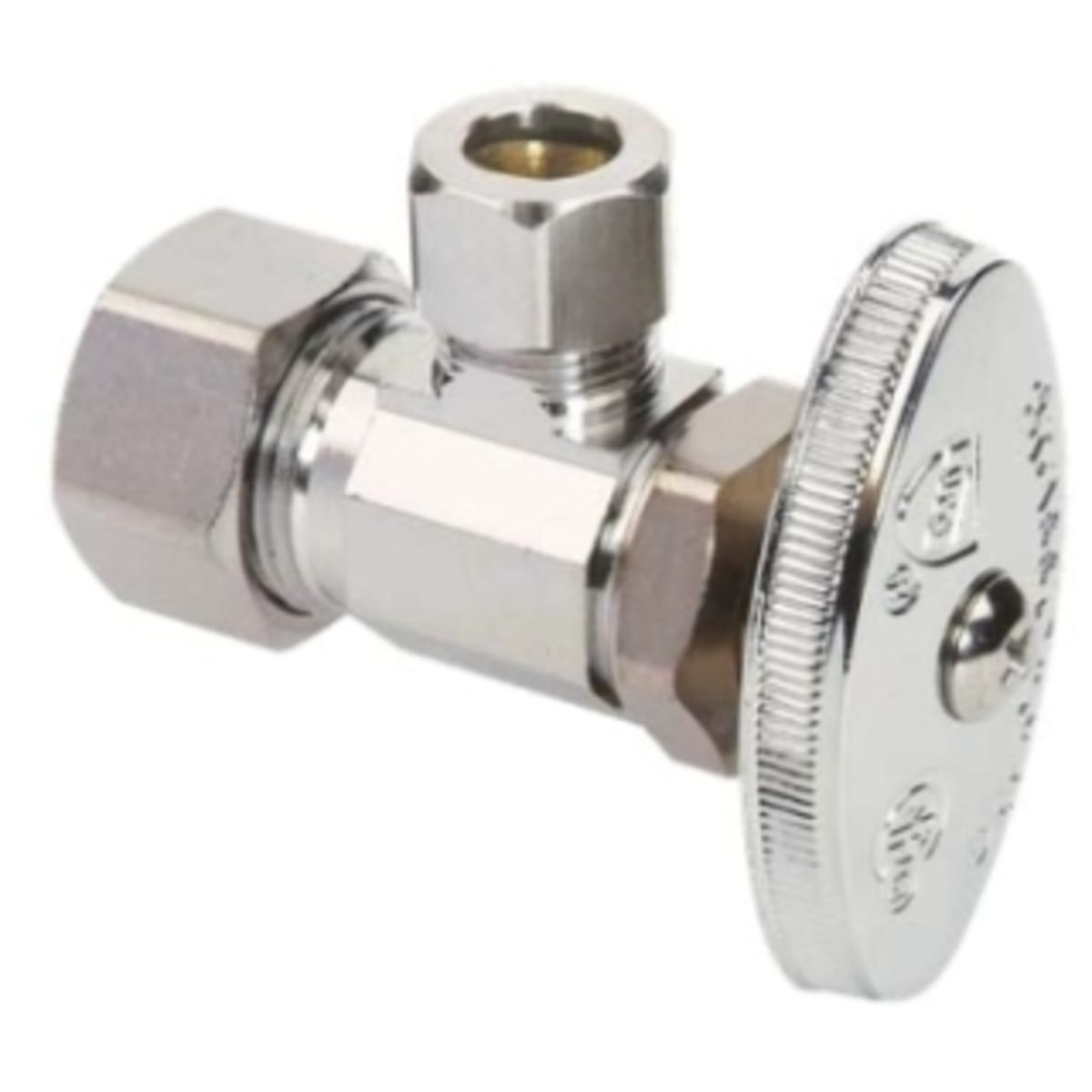

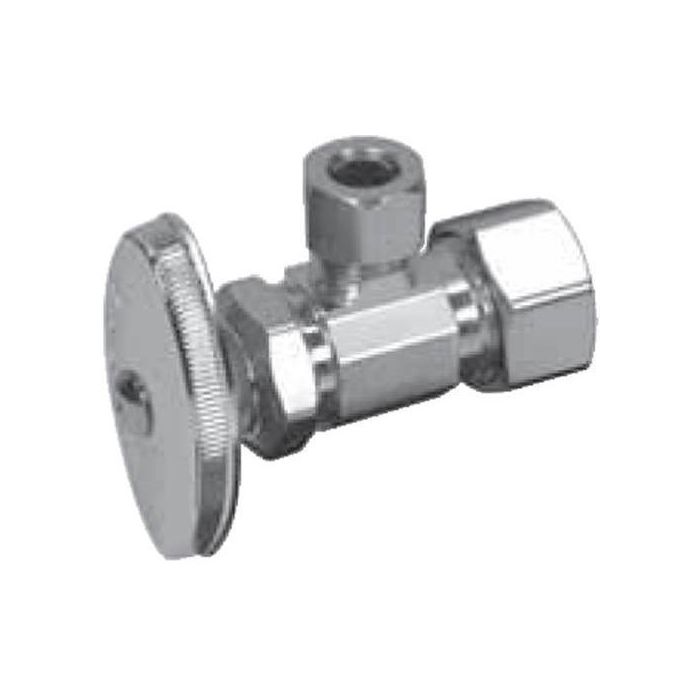

Brasscraft ocr19xc angle stop 1/2 inch x 3/8 inch

Product Description

The Brasscraft OCR19XC angle valve controls water flow to household plumbing fixtures, such as faucets, toilets, dishwashers, icemakers, and washing machines. Its machined, one-piece brass body ensures strength and durability. The multi-turn operation allows water flow control with just a few turns of the handle.

• Machined 1-Piece Brass Body Construction for Strength, Durability and Long Lasting Performance
• Compatible with Copper
• Multi-Turn Operation Means Water Flow Control with Only a Few Turns of the Handle

Product Highlights

This angle valve is ideal for residential and commercial potable water distribution systems. It features a lead-free design and is made in the USA.

Product Information

Standard Information

• Brand: Brasscraft
• Manufacturer Part Number: OCR19XC
• Country of Origin: USA

Technical Specifications

• Actuation Type: Multi-Turn, Oval Knurled Handle
• Additional Information: Lead-Free
• Applicable Standard: CSA (Canada and US), ASME A112.18.1/CSA B125.1, NSF/ANSI 61/372, IAPMO, CUPC
• Application: Residential, Commercial, Potable Water Distribution System
• Body Material: Chrome Plated Brass
• End Connection: Compression x Compression
• End To End Distance: 2.75 Inch
• Features/Benefits: Machined 1-Piece Brass Body Construction for Strength, Durability and Long Lasting Performance; Compatible with Copper; Multi-Turn Operation Means Water Flow Control with Only a Few Turns of the Handle; Oval Knurled Handle Provides a Secure Grip for On/Off Operation; Easy-to-Remove Handle Protects against Accidental Operation During Rough-Ins; Lead-Free; Made in USA
• Handle Material: Die-Cast Plated Zinc, Plated ABS Plastic

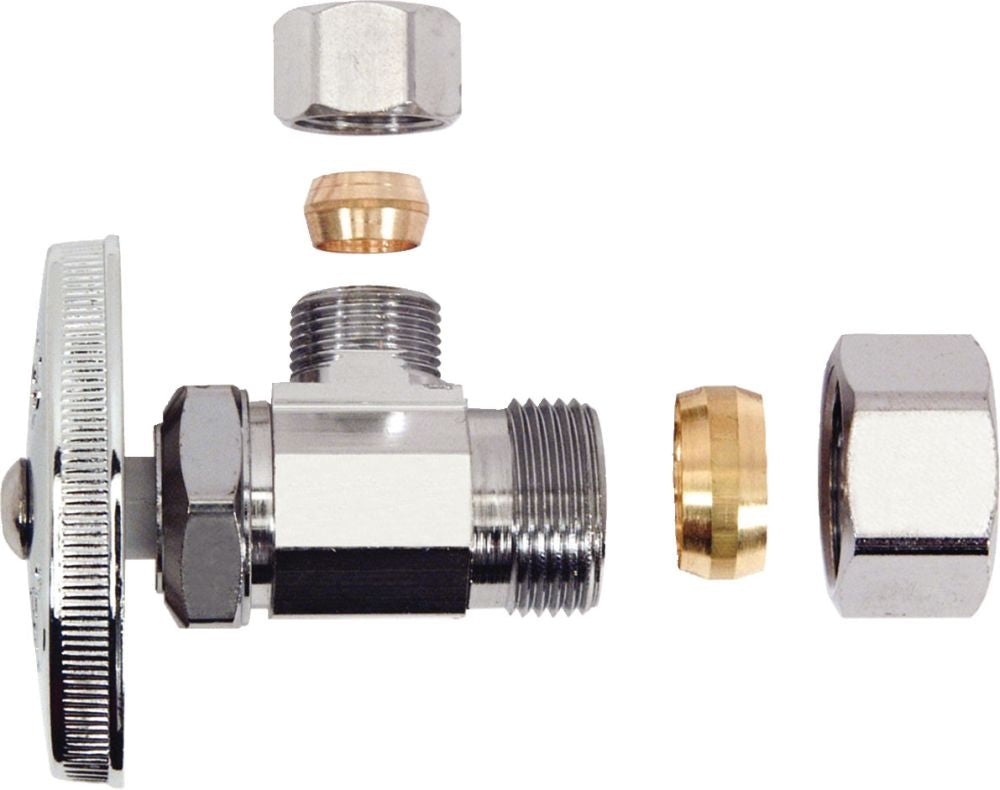

• Inclusions Features: Rubber Bib/Packing Washer, Chrome Plated Brass/POM Stem, Chrome Plated Brass Packing Nut/Compression Nut, Brass Sleeve, Stainless Steel PEX Insert, Zinc Plated Steel Handle Screw
• Manufacturer Name: BrassCraft
• Manufacturer Part Number: OCR19X-C
• Marketing Text: BrassCraft 1/2 in. Nominal Compression Inlet x 3/8 in. OD Compression Outlet Multi-Turn Angle Valve controls water flow to household plumbing fixtures - faucets, toilets, dishwashers, icemakers, washing machines, etc. The angle valve is most often used where the water pipe enters the room from the wall. With a few turns of the valve handle, you are able to stop the flow of water leading to the plumbing fixture, allowing for maintenance and repair without turning off water to the entire home.
• Nominal Size: 1/2 Inch x 3/8 Inch
• Pressure Rating: 125 PSI
• Series/Model: OCR19X
• Temperature Rating: 40 to 140 Deg F
• Type: 1-Piece, Angle
• UNSPSC Code: 40141600
• UPC: 026613135113
• Type of Material: Brass
• Valve Type: Stop
• Angle: Angle Valve
• Material: Brass
• Size Compatibility: 1/2 in. Inlet x 3/8 in. Outlet
• Maximum Pressure Rating: 125 psi
• Handle Type: Oval-knurled, Multi-turn
• Temperature Range: 40 to 160 F
• Corrosion Resistance: Water Hammer Protection
• Country of Origin: United States
