BrassCraft OCR14XC Multi-Turn Straight Stop 1/2 x 3/8 inch Compression

Product Description

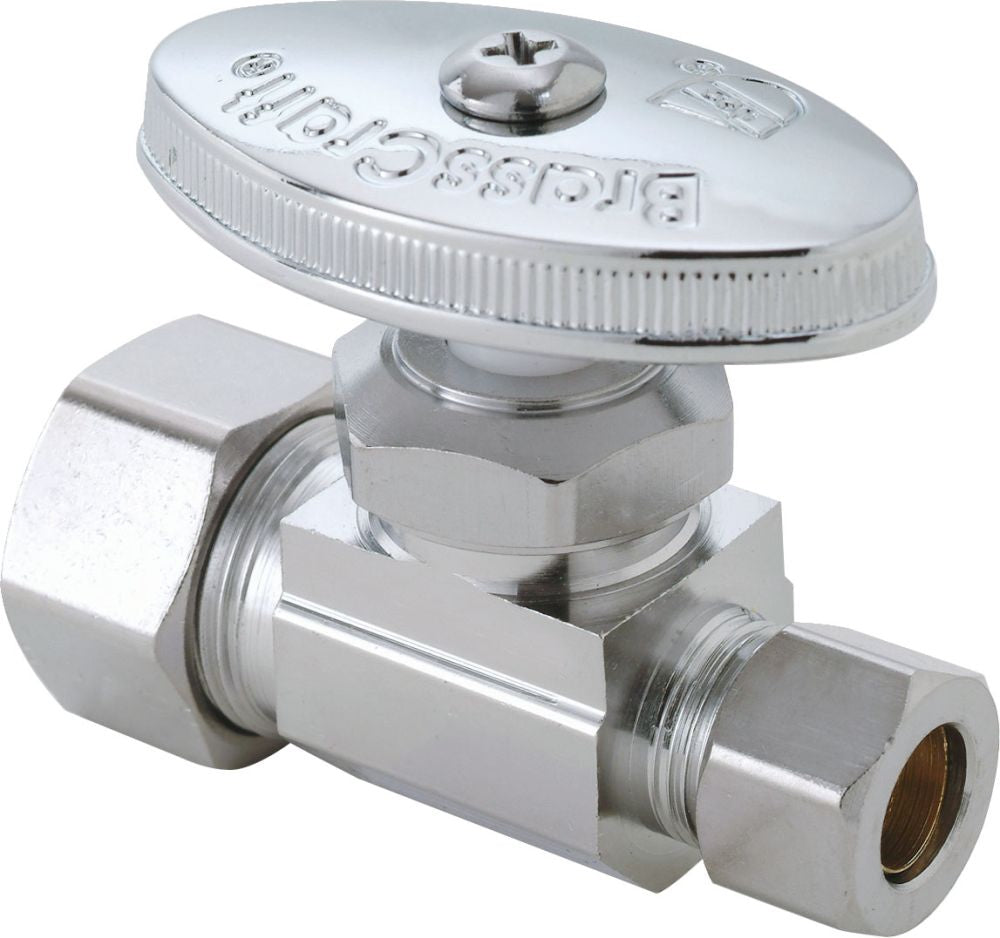

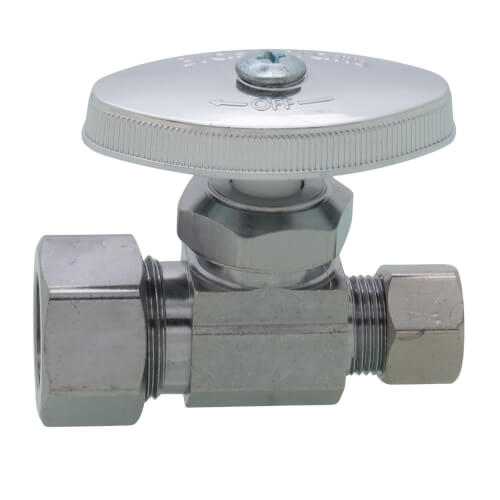

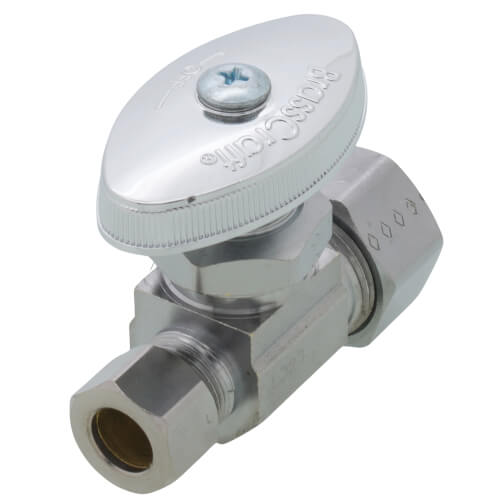

The BrassCraft OCR14XC is a multi-turn straight supply stop valve designed for residential and commercial water supply applications. With a nominal size of one half inch by three eighths inch, it features a compression x compression connection. The chrome plated brass body ensures durability and resistance to corrosion. The knurled oval handle allows for smooth operation and effective water flow control.

• Lead-free construction for safe use.
• Multi-turn operation for precise flow management.
• Compatible with various plumbing fixtures and systems.

Product Highlights

This valve is suitable for use in potable water systems, offering reliability and long-lasting performance.

Product Information

Standard Information

• Manufacturer: BrassCraft
• Model Number: OCR14XC

Technical Specifications

• Body Material: Chrome Plated Brass
• Handle Material: Plated Die-Cast Zinc
• Nominal Size: 1/2 inch x 3/8 inch
• End Connection: Compression x Compression
• Pressure Rating: 125 PSI
• Temperature Rating: 40 to 140 degrees F

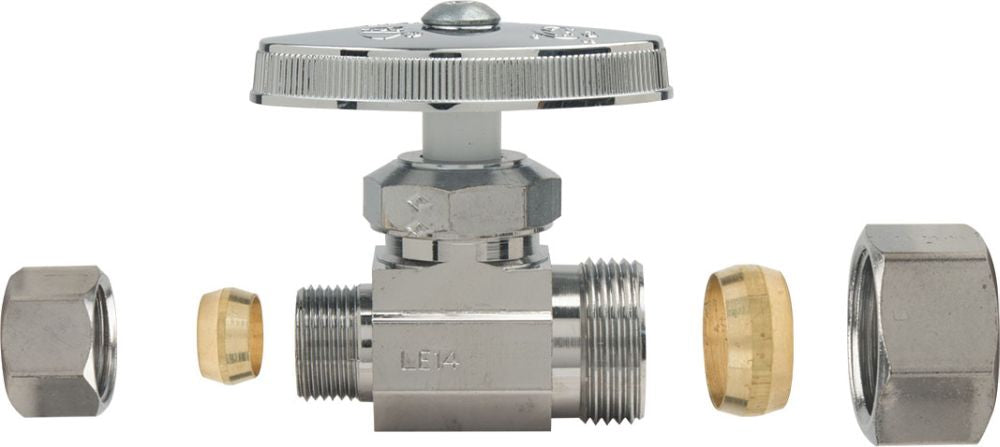

• Inclusions: POM/Plated Brass Stem, Rubber Packing Washer, Zinc Plated Steel Handle Screw, Brass Compression Nut
• Applicable Standards: ASME A112.18.1/CSA B125.1, NSF/ANSI 372
