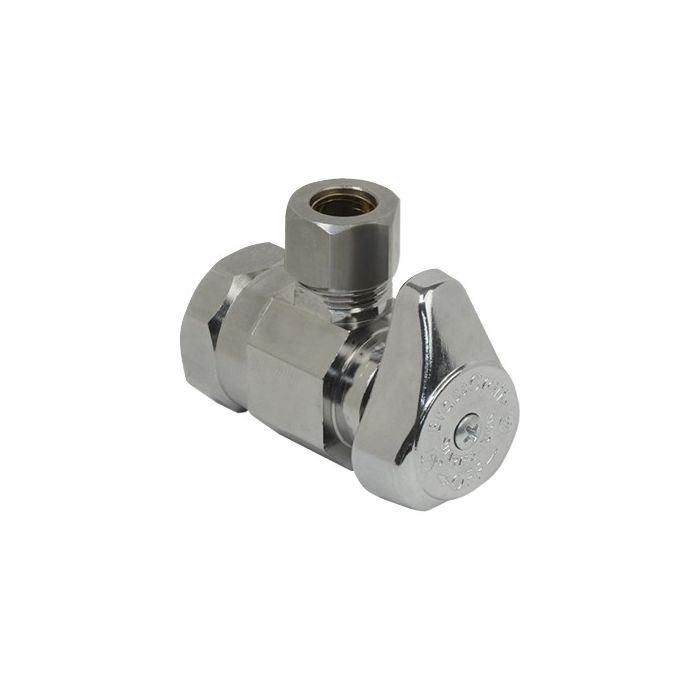

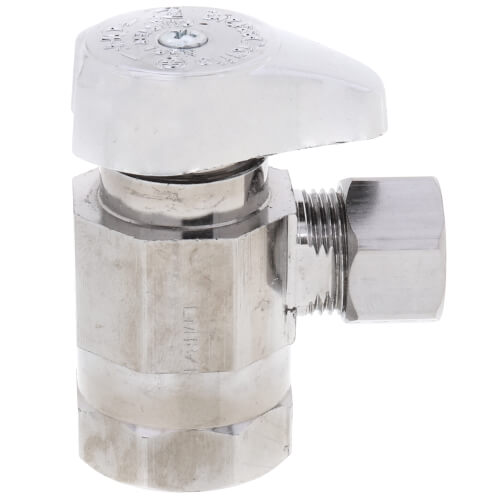

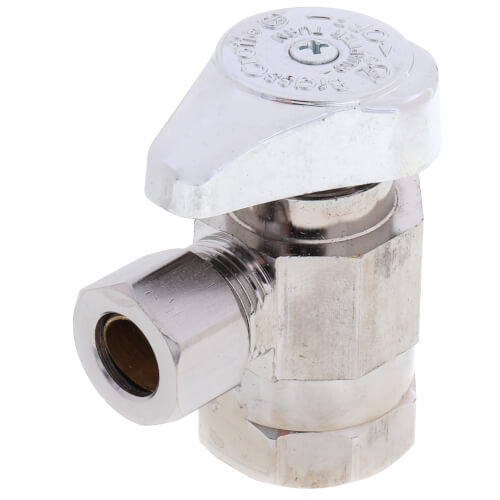

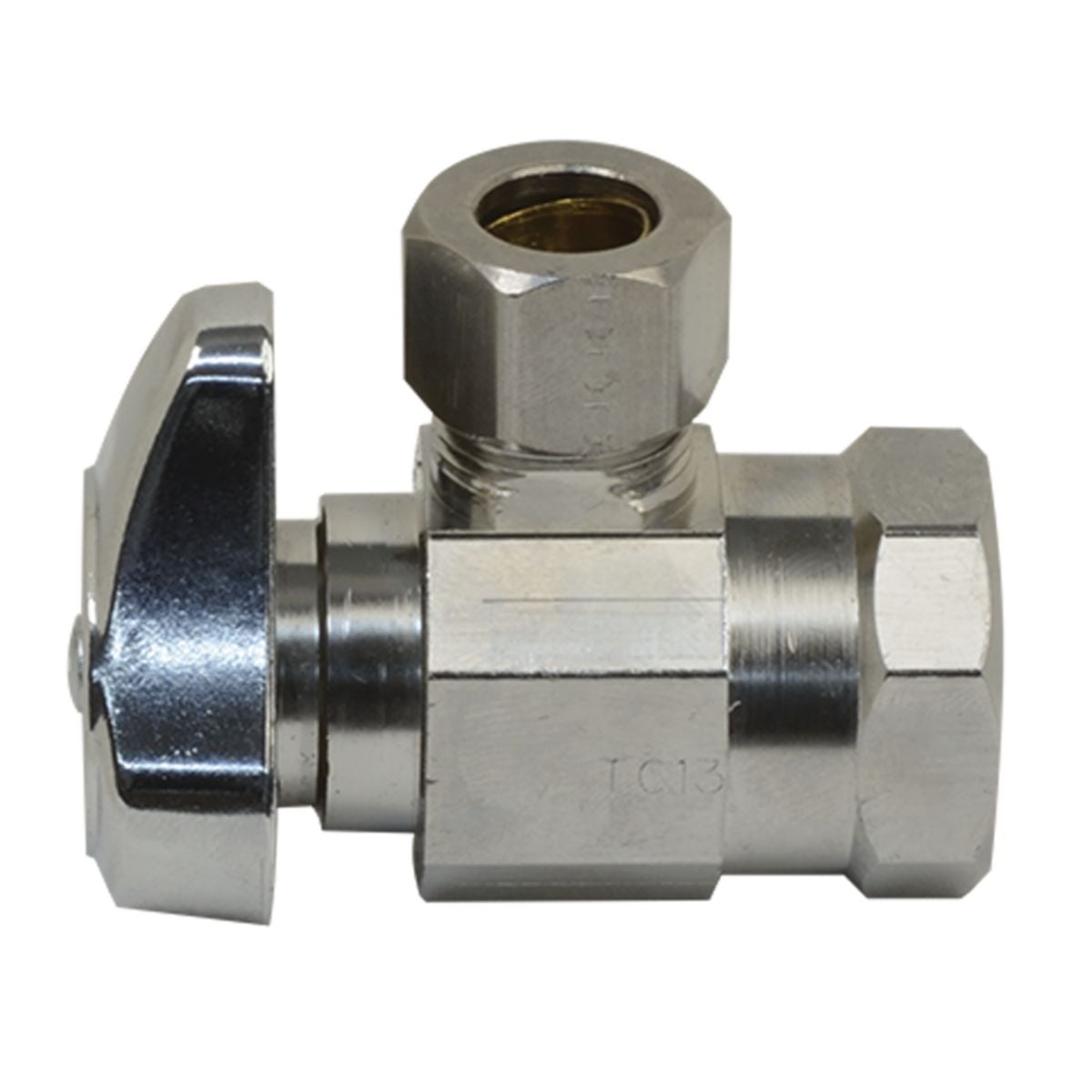

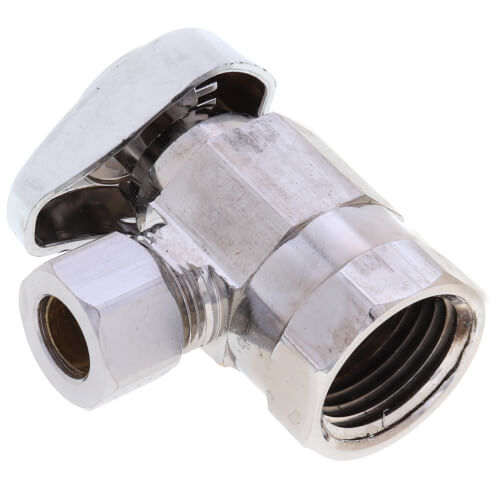

Brasscraft G2R17XC 1/2x3/8 fxc angle stop

Product Description

The Brasscraft G2R17XC 1/2X3/8 FXC Angle Stop controls water flow to household plumbing fixtures. Its one-piece shut-off mechanism ensures smooth operation, preventing freeze-ups even after extended periods of inactivity. Designed for potable water systems, it features a corrosion-resistant handle and a durable, machined brass body.

• For use in potable water distribution systems
• One-Piece shut-off mechanism provides smooth on-off operation without freeze ups even after long periods of non-use
• Positive 1/4 turn shut-off

Product Highlights

Ensures a reliable, leak-free performance. Designed for indoor use with easy to remove handle.

Product Information

Standard Information

• Brand: Brasscraft
• Manufacturer Part Number: G2R17XC
• Country of Origin: USA

Technical Specifications

• Material: Brass
• Finish: Chrome Plated
• Product Type: Supply Stop
• Inlet Size: 1/2"
• Outlet Size: 3/8"
• Size: 1/2" x 3/8"
• Inlet Type: FIP
• Type: 1/4 Turn
• Outlet Type: OD Compression
• Body Pattern: Angle
• Lead Free: Yes
• Series: G2
• Nominal Size: 1/2 x 3/8 Inch
• End Style: FIP x Compression
• Pressure Rating: 125 psi
• Media: Water
• Body Material: Chrome Plated Brass
• Trim Material: Brass Compression Sleeve
• Softgoods Material: EPDM Stem O-Ring
• Handle Style: 1/4 Turn
• Temperature Rating: 40 - 140 deg F
• Inlet: 1/2 in. FIP
• Outlet: 3/8 in. OD Compression
• Manufacturer: BrassCraft Manufacturing
