Brasscraft G2R12XC 1/2fipx3/8od str straight stop

Product Description

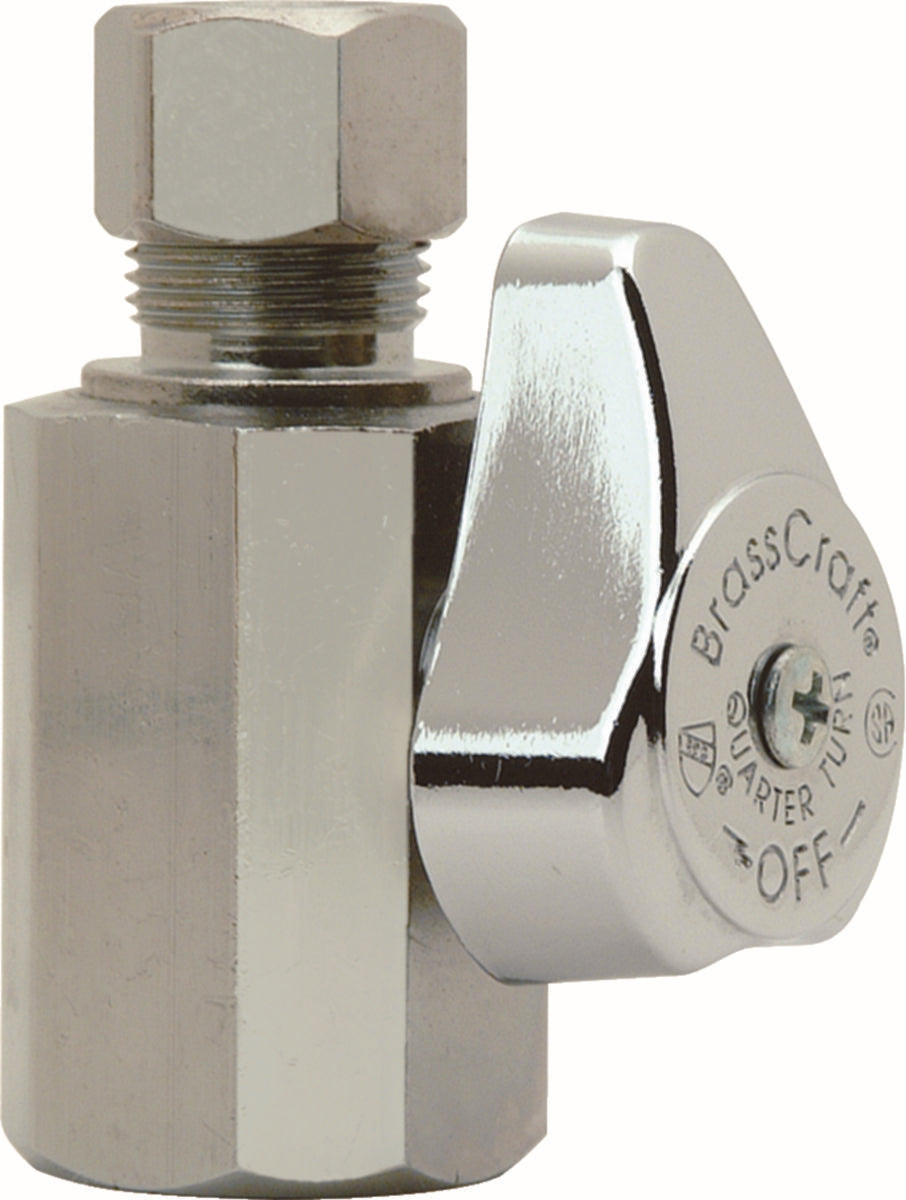

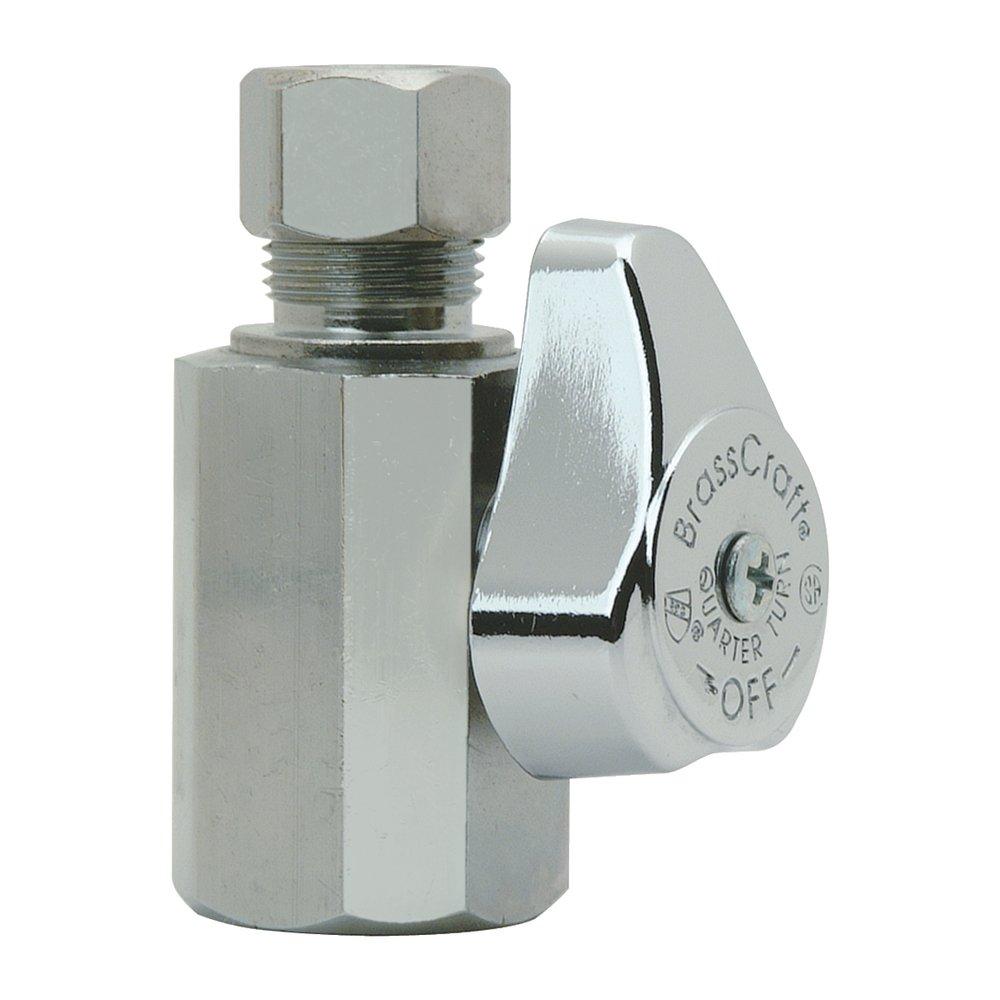

The Brasscraft G2R12XC 1/2FIPX3/8OD STR Straight Stop controls water flow to household plumbing fixtures. It features a 1/4-turn technology offering durable construction and proven performance. The straight valve is most often used where the water pipe enters the room from the floor.

• Lead free
• Positive 1/4-turn shut Off
• Machined 1-piece brass body provides strength, durability, and long lasting performance

Product Highlights

This straight stop valve allows for maintenance and repair without shutting off the water to the entire home and is 100% leak tested.

Product Information

Standard Information

• Brand: Brasscraft
• Manufacturer Part Number: G2R12XC
• Country of Origin: Domestic

Technical Specifications

• Type: Straight
• Series: G2
• Nominal Size: 1/2 x 3/8 Inch
• End Style: FIP x Compression
• Pressure Rating: 125 psi
• Media: Water
• Body Material: Brass
• Trim Material: C36000 Brass
• Softgoods Material: Santoprene Stem Barrel/EPDM Stem O-Ring
• Handle Style: 1/4 Turn
• Temperature Rating: 40 - 140 deg F
• Inlet: 1/2 in. FIP
• Outlet: 3/8 in. OD Compression
• Valve Type: Straight Supply Stop Valve
• Material: Brass, Plastic
• ANSI: ANSI 372, ANSI 61
• ASME: ASME A112.18.1
• CSA Certified: CSA B125.1
• Collection: G2R12 Series
• Color Finish Category: Chromes
• Color Finish Name: Chrome Plated
• End Connection 1: FPT
• End Connection 2: OD Compression
• End Connections: FPT x OD Compression
• Handle Material: Metal
• Handle Type: Lever
• IAPMO Listed: Yes
• Lead Law Compliance Level: Lead Law Compliant and Certified
• Lead Law Compliant: Yes
• Material Type: Polymer
• Maximum Temperature: 160
• Minimum Temperature: 40
• NSF: NSF 372, NSF 61
• NSF Certified: Yes
• Number of Handles: Single Handle
• Origin: Domestic
• Pressure - High: 125
• Pressure - Maximum: 125 psi
• Recommended Valve Application: Potable Water, Residential, Commercial
• Temperature Range: 40 to 160 Deg F
• UL Listed: No
• Valve Body Material: Brass
• Valve Body Style: 1 piece
• Valve Operator: Quarter Turn Handle
• Valve Size: 1/2 in x 3/8 in
• Finish: Polished Chrome
