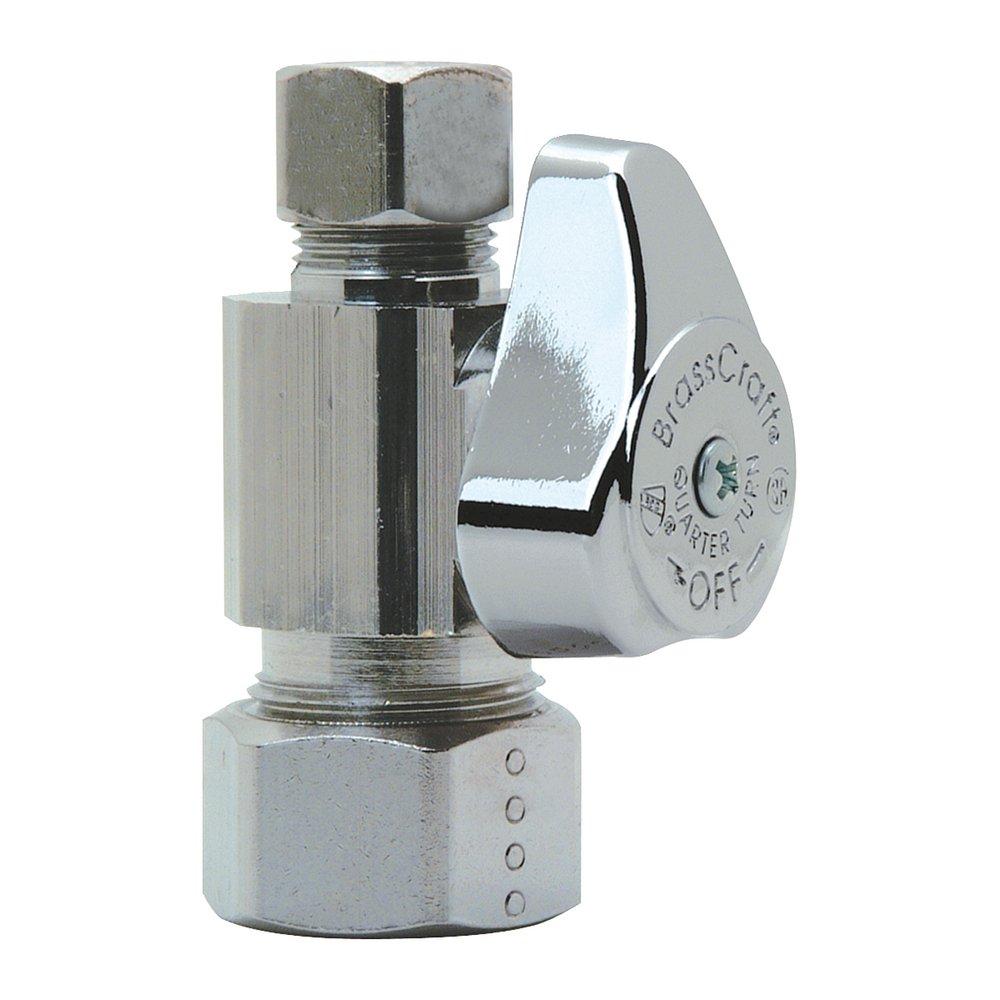

Brasscraft G2CR14 X 1/2 in. Nom Comp x 3/8 in. O.D. Comp

Product Description

The BrassCraft G2CR14 X 1/2 in. Nom Compression Inlet x 3/8 in. OD Compression Outlet 1/4-Turn Straight Valve controls water flow to household plumbing fixtures such as faucets, toilets, dishwashers, icemakers, and washing machines. The straight valve is used where the water pipe enters the room from the floor. A 90 degree turn of the handle stops water flow for maintenance and repair.

• Machined one-piece brass body provides strength, durability and long-lasting performance
• 1/2 in. Nom Comp Inlet x 3/8 in. OD Comp Outlet
• Compatible with copper piping

Product Highlights

This straight valve is designed for indoor use in potable water distribution systems, offering smooth flow control and leak-free performance. It features an easy-to-remove handle and is assembled in the USA.

Product Information

Standard Information

• Brand: BrassCraft
• Manufacturer Part Number: G2CR14 X
• Country of Origin: USA

Technical Specifications

• Inlet: 1/2 in. Nom Comp
• Outlet: 3/8 in. O.D. Comp
• Valve Type: Straight Supply Stop Valve
• Material: Brass, Plastic
• Finish: Chrome-Plated
• ANSI: ANSI 372, ANSI 61
• ASME: ASME A112.18.1
• ASTM: ASTM F-876, ASTM F-877
• CSA Certified: CSA B125.1
• Collection: G2CR14 Series
• Color Finish Category: Chromes
• Color Finish Name: Chrome
• End Connection 1: Compression
• End Connection 2: Compression
• End Connections: Compression
• Handle Material: ABS
• Handle Type: Quarter Turn
• IAPMO Listed: Yes
• Lead Law Compliance Level: Lead Law Compliant and Certified
• Lead Law Compliant: Yes
• Maximum Temperature: 160
• Minimum Temperature: 40
• NSF: NSF 372, NSF 61
• NSF Certified: Yes
• Number of Handles: Single Handle
• Origin: Domestic
• Pressure - High: 125
• Pressure - Maximum: 125 psi
• Recommended Valve Application: Potable Water
• Temperature Range: 40 to 160 Deg F
• UL Listed: No
• Valve Body Material: Brass
• Valve Body Style: 1 piece
• Valve Operator: Quarter Turn Handle
• Valve Size: 1/2 in x 3/8 in
• Series: G2CR14
• Type: Lead-Free
• Nominal Size: 1/2 x 3/8 in
• Connection Type: Compression
• Body Material: Brass
• Temperature Rating: 40 to 160 deg F
• Turn: 1/4 Turn
• Standards: IAPMO listed to ASME A112.18.1/CSA B125.1, CSA listed to ASME A112.18.1/CSA B125.1
