Brasscraft G2BRPX14XC 1/2 inches Barb X 3/8 inches Od Comp Straight Shutoff

Product Description

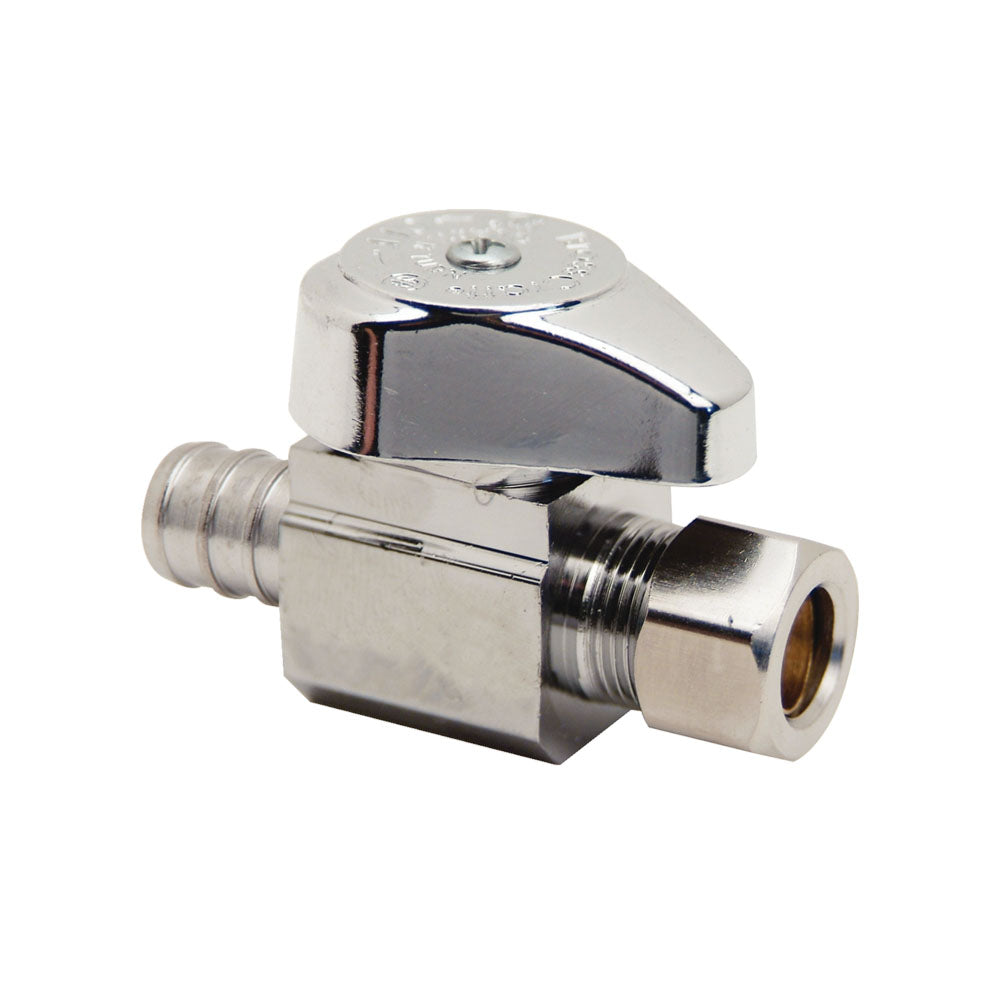

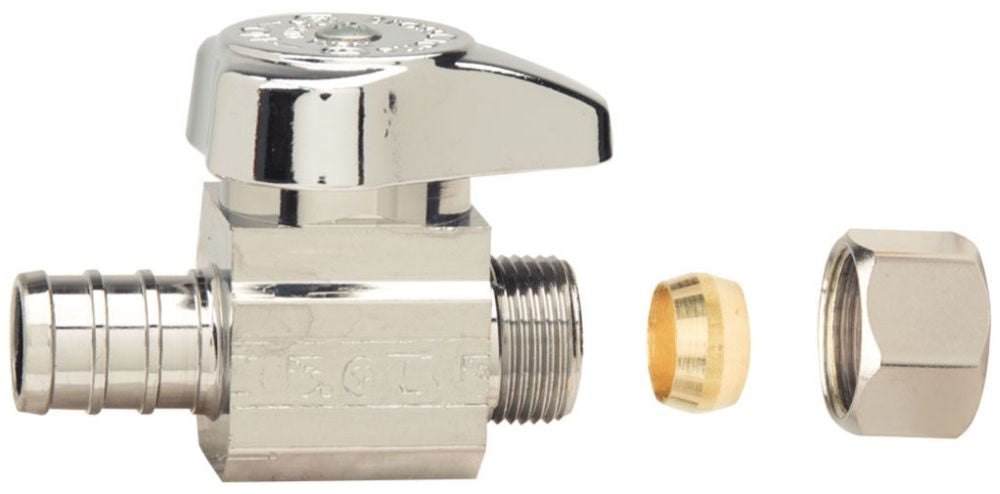

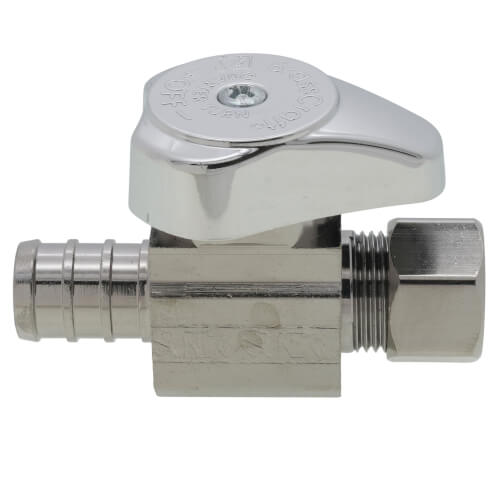

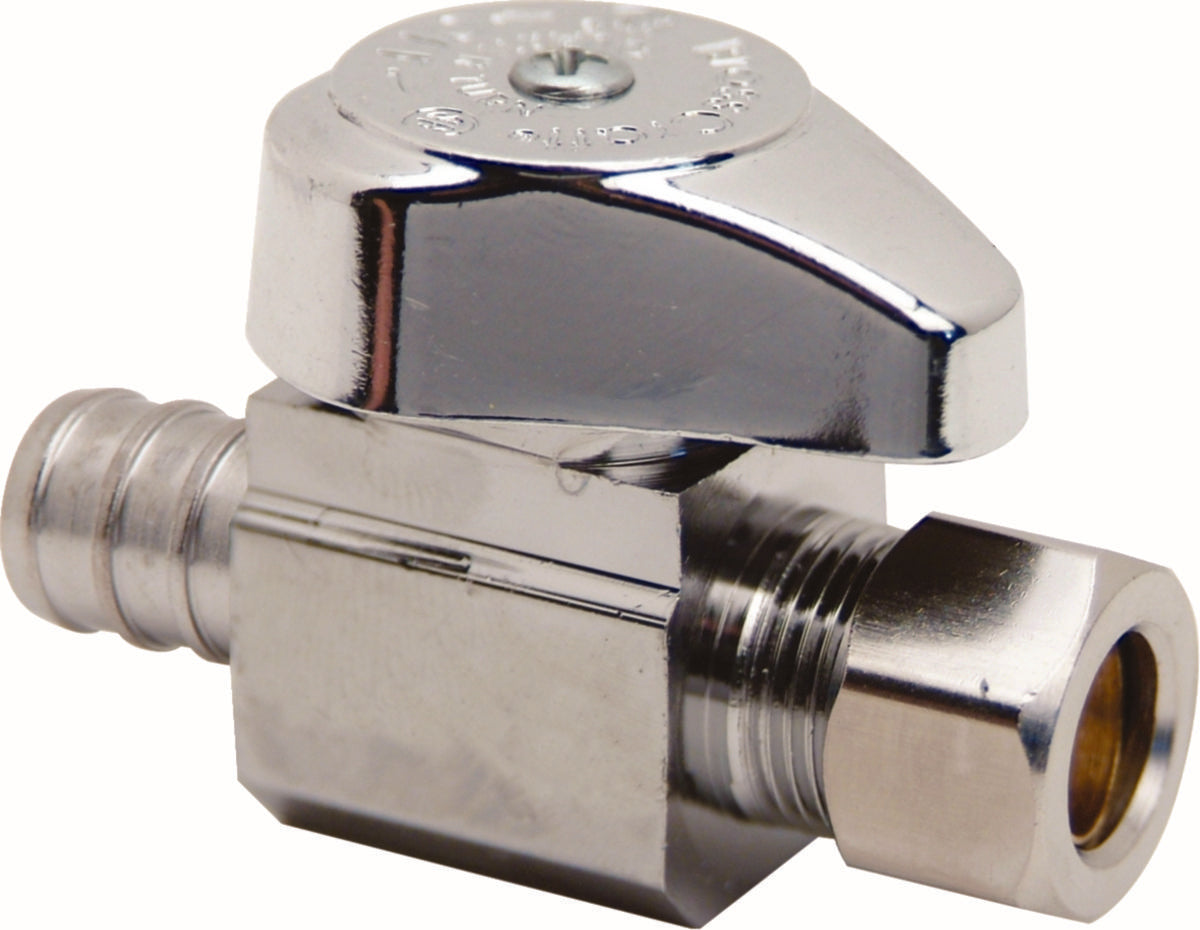

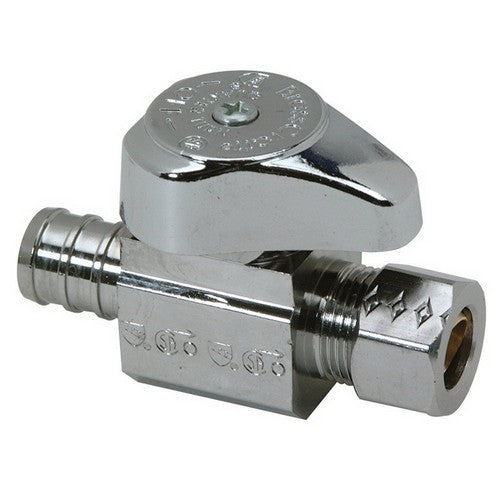

The Brasscraft G2BRPX14XC water supply stop is a straight valve with a 1/4 turn actuation type. It has a nominal size of 1/2 Inch x 3/8 Inch and end connections of crimp PEX barb x compression. Constructed from ASTM F1807 chrome plated brass, it is suitable for residential and commercial applications.

• Machined 1-Piece Brass Body Provides Strength, Durability and Long-Lasting Performance
• Compatible with Copper Pipe
• For Use in Potable Water Distribution Systems

Product Highlights

This lead-free water supply stop features a 1-piece machined brass body and is 100% leak tested.

Product Information

Standard Information

• Brand: Brasscraft
• Manufacturer Part Number: G2BRPX14XC
• Country of Origin: USA

Technical Specifications

• Actuation Type: 1/4 Turn
• Additional Information: Lead-Free
• Applicable Standard: ASME A112.18.1/CSA B125.1, IAPMO, CUPC, NSF/ANSI 372/61
• Application: Residential, Commercial
• Body Material: ASTM F1807 Chrome Plated Brass
• End Connection: Crimp PEX Barb x Compression
• End To End Distance: 2.05 Inch
• Handle Material: Chrome Plated ABS Plastic/Die-Cast Zinc
• Inclusions Features: 1-Piece Machined Brass Body, Rubber Stem Barrel/O-Ring, Glass-Filled Polypropylene Stem Shaft, Zinc Plated Steel Screw, Chrome Plated Brass Compression Nut, Brass Compression Sleeve
• Nominal Size: 1/2 Inch x 3/8 Inch
• Pressure Rating: 125 PSI
• Temperature Rating: 40 to 160 Deg F
• Type: Straight
• Brand: BRASSCRAFT
• MPN: G2BRPX14XC
• Material: Brass Body
• Connection Type: PEX Crimp Barb x Compression
• Inlet Size: 1/2"
• Outlet Size: 3/8"
• Inlet Type: PEX Crimp
• Outlet Type: OD Compression
• Valve Type: Straight
• Lead Free: Yes
• End B Diameter: 3/8 in
• Valve Shape: Straight
• Stop Valve Type: 1/4-Turn
• End A Diameter: 1/2 in
• Valve Configuration: Straight
• Connection: Barb x Comp
