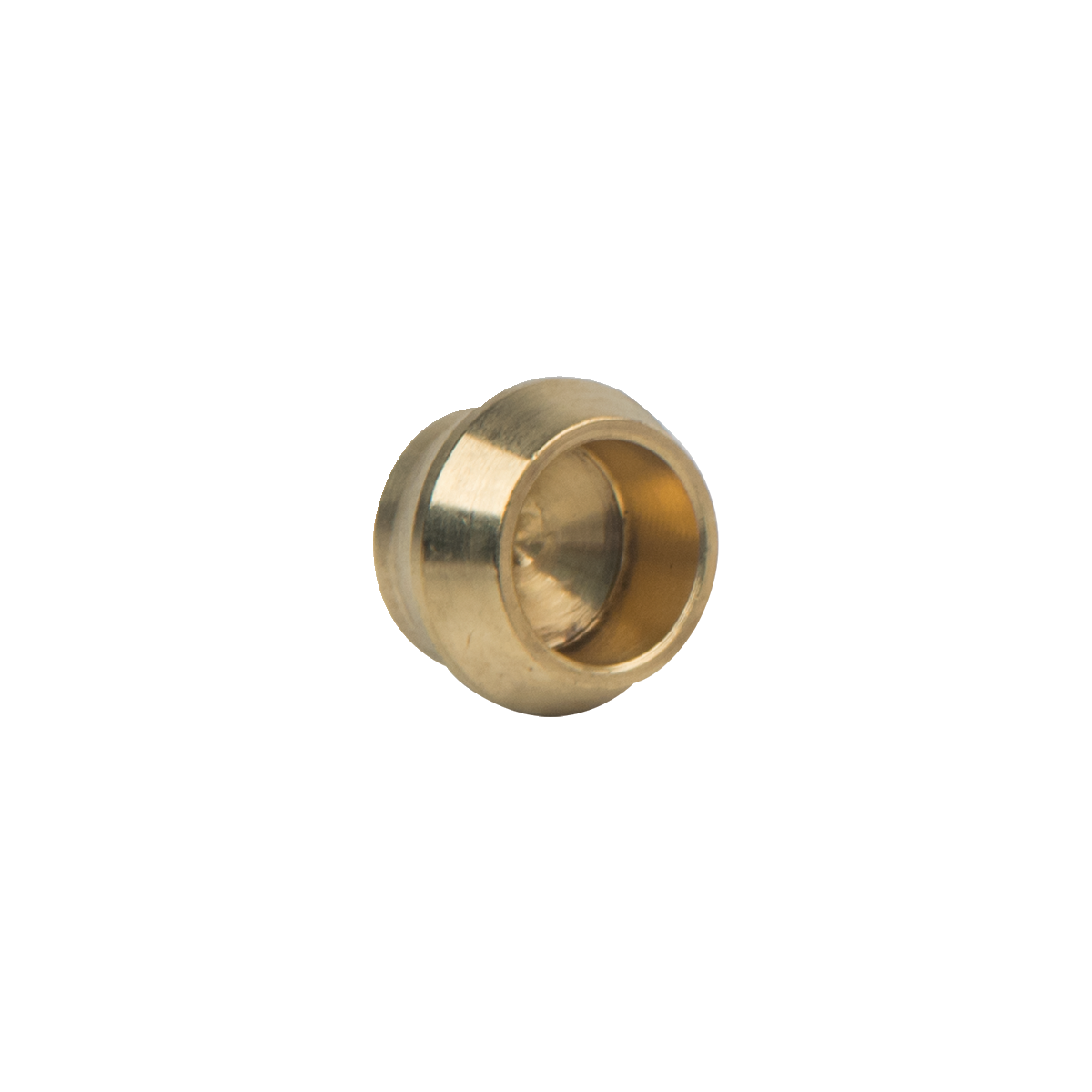

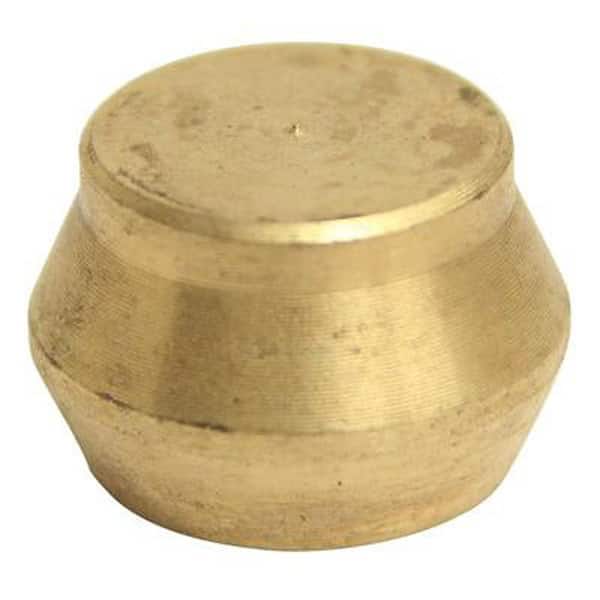

Brasscraft CSP-6X 3/8 in. Brass Compression Plug

Product Description

The Brasscraft CSP-6X is a 3/8 in. O.D. brass compression plug designed for use with aluminum and copper tubing. It is suitable for potable and non-potable water, instrumentation, hydraulic, and pneumatic systems. This compression fitting features a brass construction that provides strength and durability. It requires little to no tube preparation, eliminating the need for flaring or soldering.

• For 3/8 in. O.D. Tube
• Designed for use with aluminum and copper tubing; not recommended for steel tubing
• Brass construction provides strength, durability and longer-lasting performance

Product Highlights

Ideal for plumbing, instrumentation, hydraulic, and pneumatic systems. Suitable for use with copper, aluminum, or plastic tubing.

Product Information

Standard Information

• Brand: Brasscraft
• Manufacturer Part Number: CSP-6X
• Country of Origin: Import

Technical Specifications

• Brand: BRASSCRAFT
• MPN: CSP-6X
• Fitting Size: 3/8 in.
• Material: Brass
• Product Type: Plug
• Compatible Pipe Material: Aluminum,Copper
• Connectivity: Compression
• ManufacturerName: BRASSCRAFT A MASCO COMPANY
• ManufacturerSKU: CSP-6X
• SellUom: Each
• Make: BRASSCRAFT A MASCO COMPANY
• For: 3/8 in. O.D. Tube
• ANSI: ANSI 372
• End Connection 1: Compression
• End Connections: Compression
• Fitting Size 1: 3/8
• Fitting Sizes: 3/8 in
• Fitting Type: Plug
• Lead Law Compliance Level: Lead Law Compliant and Certified
• Lead Law Compliant: Yes
• Minimum Temperature: -65
• NSF: NSF 372
• NSF Certified: Yes
• Temperature Range: -65 to 250 Deg F
• UPC: 026613149509
• Domestic/Import: Import
• End Style: Compression
• Finish: Rough
• Fitting/Connector Type: Plug
• Nominal Size: 3/8 in
• Pressure Rating: 200 psi
• Series: CSP
• Temperature Rating: -65 to 250 deg F
• Application: Non-Potable Water,Potable Water
