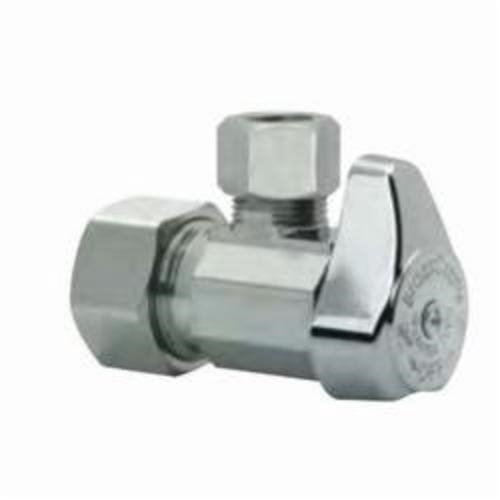

Brasscraft Bc-g2cr09x C Angle Stop 5/8x1/4 Icemaker

Product Description

The BRASSCRAFT bc-g2cr09x c is a compression-style angle stop valve sized for icemaker supply line connections. It features a 5/8-inch compression inlet and a 1/4-inch compression outlet, making it a purpose-built shutoff for refrigerator icemaker installations. Angle stops of this configuration mount directly to a water supply stub-out and allow an installer to isolate the icemaker line without shutting off the broader plumbing system. Licensed plumbers and skilled DIYers use these valves in residential kitchen and utility installations where a dedicated shutoff is required at the wall.

This valve is suited to residential applications where a refrigerator icemaker requires a dedicated inline shutoff. The 5/8-inch compression inlet connects to standard copper or compatible supply tubing coming from the wall, while the 1/4-inch compression outlet accepts the small-diameter tubing common to icemaker supply kits. Typical installations are found behind refrigerators in kitchen cabinetry or along adjacent wall cavities where the cold water supply runs.

Key Features

• 5/8-inch compression inlet designed to connect directly to a wall supply stub-out
• 1/4-inch compression outlet sized for standard icemaker supply tubing
• Angle-body configuration allows 90-degree directional change from wall supply to appliance line
• Compression fittings on both ends eliminate the need for soldering at installation
• Inline shutoff capability lets the icemaker line be isolated independently of the main supply

Compatibility

Designed as an OEM-style replacement or new-installation angle stop for residential icemaker supply line applications requiring a 5/8-inch compression inlet and a 1/4-inch compression outlet.

Installation Notes

Installation should be performed by a licensed plumber or qualified tradesperson in accordance with applicable local plumbing codes and IPC guidelines. Shut off the main water supply and relieve line pressure before removing any existing valve or fitting. Compression fittings must be hand-tightened and then snugged with a wrench — do not overtighten, as this can damage the compression sleeve and cause leaks. After installation, restore water supply pressure slowly and inspect all joints for leaks before reinstalling the appliance.

Technical Specifications

• Inlet Size: 5/8 inches (compression)
• Outlet Size: 1/4 inches (compression)
• Valve Type: Angle Stop
• Connection Type: Compression x Compression
• Application: Icemaker Supply Line

Standard Information

• Brand: BRASSCRAFT
• Manufacturer Part Number: bc-g2cr09x c
