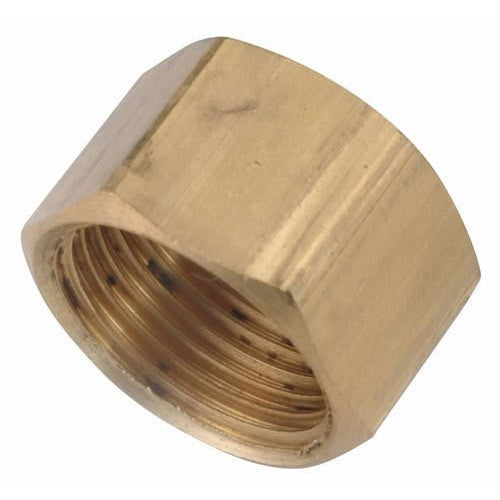

BrassCraft 61C6 3/8 inch OD Compression Cap

Product Description

The BrassCraft 61C6 is a compression cap designed for use with three-eighth inch outside diameter tubing. This product features a solid brass construction that ensures durability and reliability in various plumbing applications.

• Nominal size of three-eighths inch OD.
• Compatible with aluminum and copper tubing.
• Pressure rating of two hundred psi and temperature rating from negative sixty-five to two hundred fifty degrees Fahrenheit.

Product Highlights

This compression cap is suitable for potable and non-potable water, hydraulic, and pneumatic systems, providing an easy connection without the need for extensive tube preparation.

Product Information

Standard Information

• Brand: BrassCraft
• MPN: 61C6

Technical Specifications

• Material: Brass
• Connection Type: Compression
• Nominal Size: 3/8 inch OD
• Pressure Rating: 200 psi
• Temperature Rating: -65 to 250 Deg F
• Inner Diameter: 0.507 inch
• Outer Diameter: 5/8 inch
• Width: 0.42 inch
