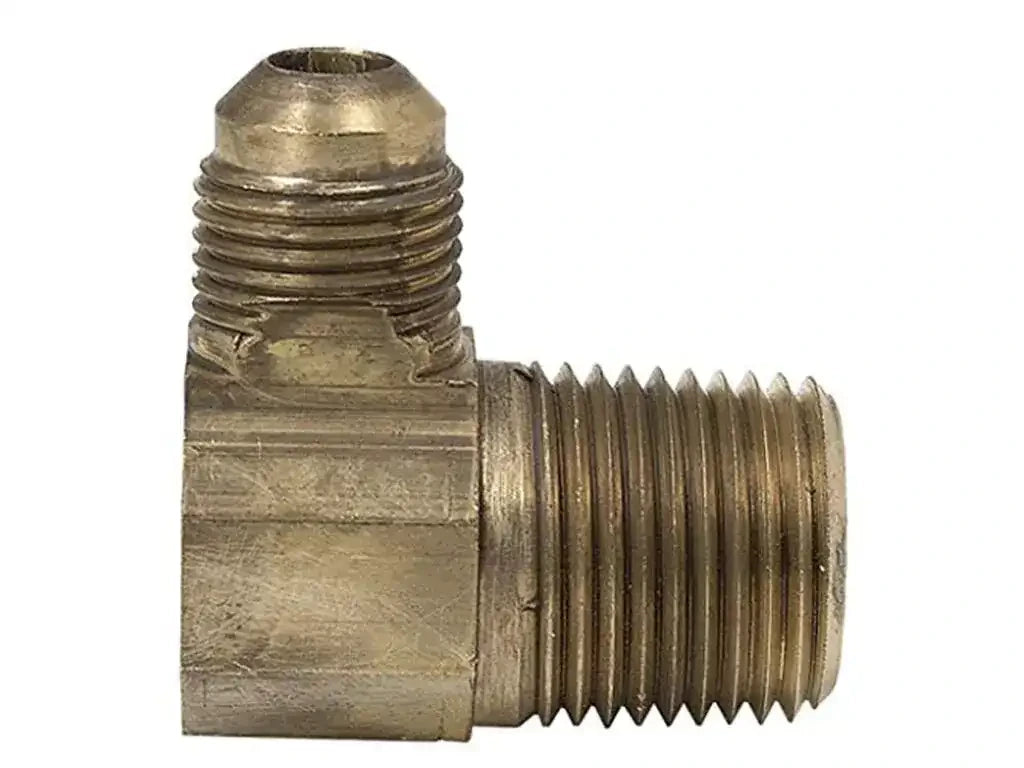

Brasscraft 49-8-8wn Brass 90 Degree Flared Elbow 1/2 in

Product Description

The BRASSCRAFT 49-8-8wn is a 90-degree reducing elbow fitting machined from solid brass for use in copper tubing systems. It transitions a 1/2-inch OD flare connection to a 1/2-inch male end, allowing a right-angle directional change in gas, water, or oil line installations. The OD flare x male end style creates a leak-resistant mechanical joint without solder, which is well-suited to field service and retrofit work. Licensed plumbers and HVAC technicians reach for this fitting when a clean directional transition is needed and the job calls for a reliable, reusable flare connection.

This elbow is appropriate for both residential and light commercial piping applications. It fits into natural gas, propane, potable water, and oil line systems where copper tubing is the primary conduit material. The 90-degree angle accommodates tight routing around framing members, cabinets, and mechanical equipment where straight runs are not practical. Its compact footprint, measuring 0.85 inches wide and 1.6 inches in height, keeps the fitting profile low in confined mechanical spaces.

Key Features

• 90-degree elbow geometry for directional transitions in tight spaces
• OD flare x male end style — no solder required at the flare end
• Solid brass construction resists corrosion in gas, water, and oil service
• 1/2-inch x 1/2-inch sizing suits common residential and light commercial copper tubing runs
• Compact body profile: 0.85 inches wide, 1.6 inches tall, 0.8 inches in length

Compatibility

Designed as an OEM-style replacement flare elbow fitting for 1/2-inch copper tubing systems in residential and light commercial gas, water, and oil line applications.

Installation Notes

Installation should be performed by a licensed plumber or qualified HVAC technician in accordance with applicable local codes, the International Plumbing Code, and IFGC requirements for gas piping. Shut off the gas supply or water service and depressurize the line before disassembling any fitting. When making the flare connection, use a calibrated flaring tool to produce a uniform seat and hand-tighten the flare nut before applying final torque with a wrench. Inspect the completed joint for leaks before returning the system to service.
