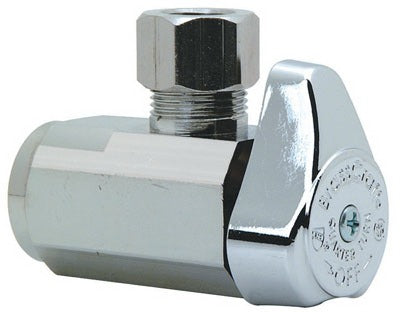

Brass Craft G2R15X Cd Chrome Angle Valve 3/8 Fip X 3/8 Od

Product Description

The BRASS CRAFT SERVICE PARTS G2R15X CD is a chrome-plated angle stop valve designed for under-sink and in-wall supply line shutoff applications. It connects 3/8 inch female iron pipe (FIP) threads on the inlet side to a 3/8 inch OD compression fitting on the outlet side. The quarter-turn ball-style operation allows full open or full close with a 90-degree handle rotation. This valve meets lead-free compliance standards, making it suitable for potable water installations where low-lead regulations apply. Plumbers and plumbing contractors install this valve as part of standard fixture rough-in and service work.

This angle valve is used in residential and light commercial plumbing installations wherever a threaded supply stub-out requires a shutoff before connecting a fixture supply line. Typical applications include toilet tank supply connections, lavatory faucet supply risers, and similar potable water fixture installations. The compression outlet accepts standard 3/8 inch OD supply tubing without soldering. The carded packaging ships in quantities of five units per package, making it practical for service trucks and shop stock.

Key Features

• Quarter-turn operation for fast, positive shutoff with a single 90-degree handle movement
• 3/8 inch FIP inlet threads onto standard iron pipe or threaded brass stub-outs
• 3/8 inch OD compression outlet accepts copper, chrome brass, or compatible supply tubing without soldering
• Lead-free compliant construction suitable for potable water systems under applicable low-lead regulations
• Chrome finish provides corrosion resistance and a clean appearance in finished installations
• Carded retail packaging; sold in packs of five

Compatibility

Designed as an OEM-style replacement or new-installation angle stop valve for residential and light commercial potable water supply applications using 3/8 inch FIP threaded inlet connections and 3/8 inch OD compression outlet connections.

Installation Notes

Installation is performed by a licensed plumber or qualified tradesperson. Shut off the main water supply and relieve line pressure before removing any existing valve or fittings. Apply thread sealant tape or pipe dope to the FIP threads before tightening; snug the compression nut firmly by hand then tighten with a wrench — do not overtighten, as this can crack the compression seat. Verify local plumbing code compliance, including lead-free requirements under applicable state and federal regulations, before installation in potable water systems.
