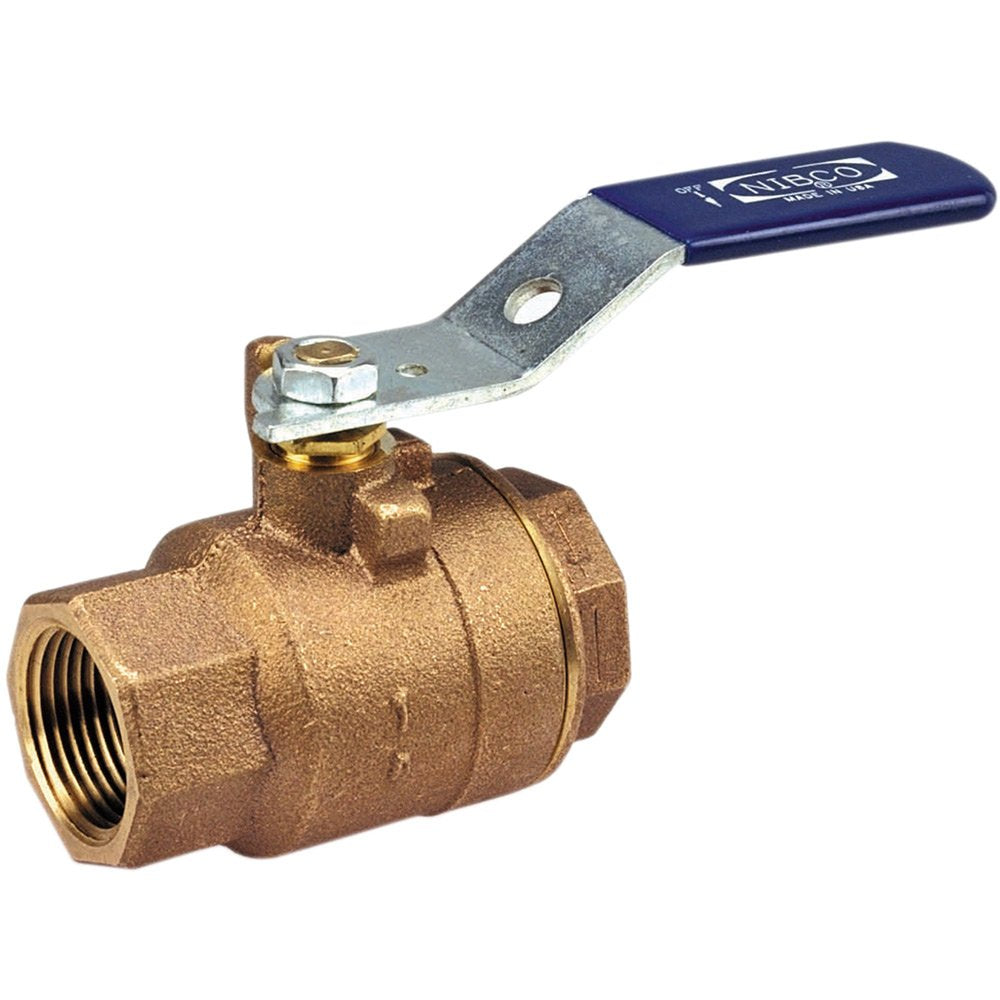

Nibco T585701 1 Inch Full Port Threaded Ball Valve

Product Description

The Nibco T585701 is a full port threaded ball valve suitable for commercial applications. This ball valve is crafted from bronze and features a blowout-proof stem for enhanced safety. It supports a range of uses including hot and cold water, HVAC systems, low-pressure steam, compressed air, and various gas applications.

• 600 PSI working pressure
• Blowout-proof stem
• Full port design

Product Highlights

The Nibco T585701 ball valve is designed for a variety of commercial uses, particularly in HVAC, plumbing, and gas applications. This valve features a strong bronze construction and offers high safety with its blowout-proof stem.

Product Information

Standard Information

• Brand: Nibco
• MPN: T585701
• Product Type: Ball Valve
• Size: 1 Inch

Technical Specifications

• Max. Pressure: 600 PSI CWP
• Max. Steam Pressure: 150 PSI WSP
• Temp. Range: -20 Degrees to 400 Degrees F
• Ball Material: Chrome Plated Brass
• Seat Material: RPTFE
• Connection Type: FNPT x FNPT
• Handle Material: Zinc Plated Steel, Clear Chromate, Plastisol Coated
• Valve Structure: 2-Piece
• Body Material: Bronze
• Body Style: Inline
• Standards: MSS SP-110
• Stem Material: Silicon Bronze
• Stem Type: Blowout Proof
• Body Seal Material: PTFE
