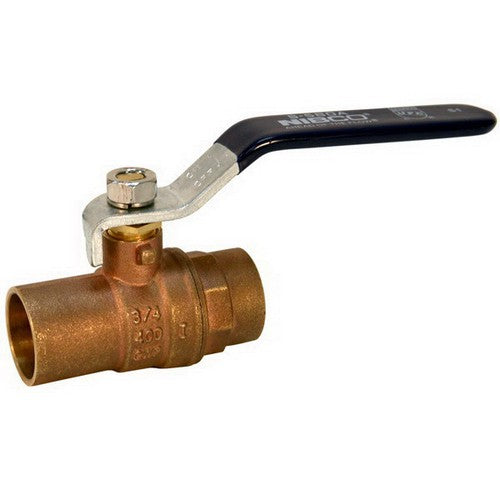

Nibco S-580 1/2 Inch Brass Ball Valve Sweat Connections

Product Description

The Nibco S-580 1/2 inch Brass Ball Valve with Sweat Connections is a reliable solution for secure water and gas flow control. This valve features a sturdy brass construction, ensuring durability in various applications.

• 1/2 inch nominal size
• Forged brass body
• PTFE seat for resistance

Product Highlights

Designed to provide bubble-tight shutoff at 400 psi, the Nibco brass ball valve is ideal for both hot and cold water, as well as gas applications. It features a blowout-proof stem and a chrome-plated brass ball for enhanced stability and performance.

Product Information

Standard Information

• Series: S-580
• Type: Standard Port

Technical Specifications

• Nominal Size: 1/2 inch
• Connection Type: Solder x Solder
• Opening Size: 0.39 inch
• Body Material: Forged Brass 1 CU > 57%
• Seat: PTFE
• Ball Material: Chrome Plated Brass
• Stem: Brass
• Packing: PTFE
• Construction: 2-Piece
• Actuation/Operator: Carbon Steel Standard Lever Handle
• Dimensions: Dimension A: 1.95 inch; Dimension B: 1.58 inch; Dimension C: 3.74 inch
