Bramec 13643 Female Disconnect Terminal 16-14 Awg 100 Pack

Product Description

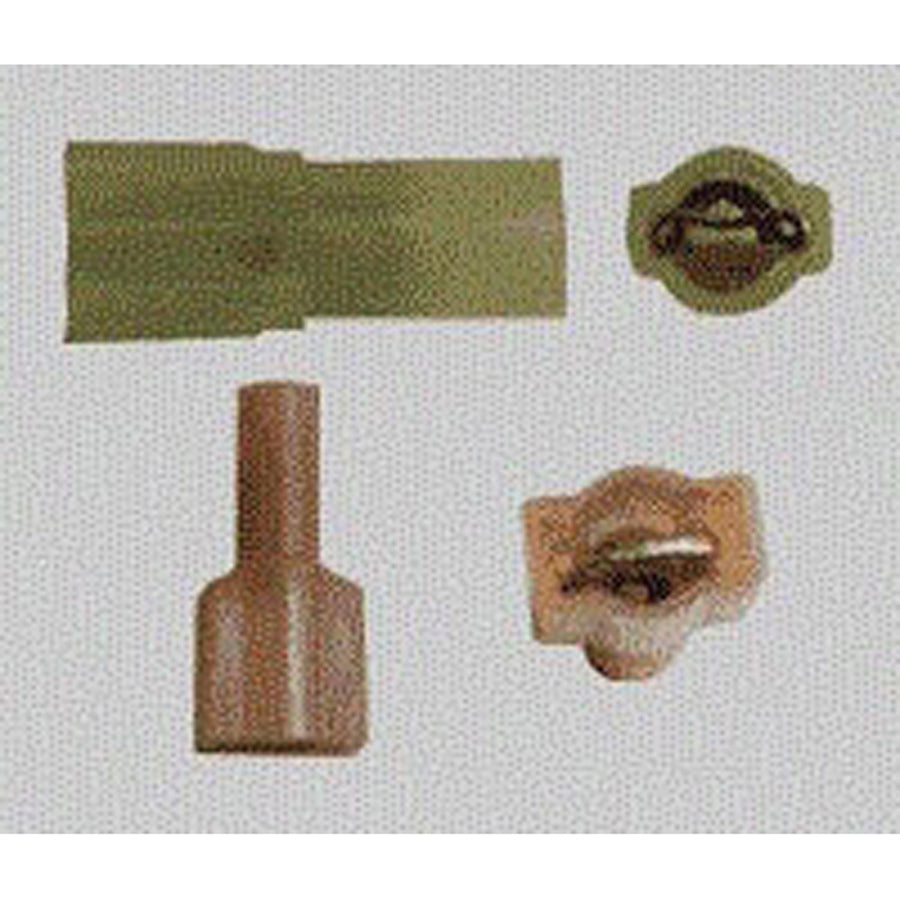

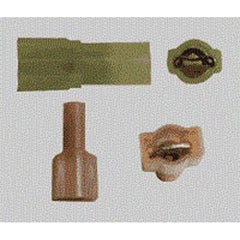

The BRAMEC 13643 is a fully insulated female disconnect terminal designed for secure, vibration-resistant electrical connections in light commercial and residential wiring applications. Rated for 16 to 14 AWG conductors, the terminal accepts a 0.25-inch male tab and ships in a 100-piece pack, making it a practical choice for stocking service vans and shop inventory. The full insulation sleeve provides protection against accidental contact and short circuits at the termination point. Electricians and HVAC technicians reach for this style of terminal when terminating control wiring, harness repairs, or component replacement work requiring a reliable quick-disconnect connection.

This terminal suits residential and light commercial electrical and HVAC applications where 16 or 14 AWG wire is used to connect to 0.25-inch tab receptacles on relays, contactors, controls, switches, and similar components. The 100-piece pack supports high-volume service work or panel and harness builds where consistent, code-compliant terminations are required across multiple circuits.

Key Features

• Fully insulated sleeve for protection against accidental contact and short circuits
• Accepts 16 to 14 AWG conductors for a range of light-duty wiring applications
• 0.25-inch tab size fits standard quick-disconnect male tab terminals
• 100-piece pack quantity supports stocking, fleet, and production use
• Female disconnect design allows fast, tool-free mating and unmating during service

Compatibility

Designed for use with standard 0.25-inch male tab terminals on relays, switches, controls, and other components wired with 16 to 14 AWG conductors in residential and light commercial electrical or HVAC systems.

Installation Notes

Installation should be performed by a licensed electrician or qualified HVAC technician in accordance with applicable NEC requirements. De-energize the circuit completely before terminating or removing any disconnect terminal. Use a calibrated ratcheting crimper sized for the wire gauge and terminal type to achieve a gas-tight crimp — do not solder over a crimped insulated terminal. Inspect the insulation sleeve after crimping to confirm no cracking or deformation has occurred before restoring power.

Technical Specifications

• Insulation Type: Fully Insulated
• Minimum Conductor Size: 16 AWG
• Maximum Conductor Size: 14 AWG
• Tab Size: 0.25 inches
• Package Quantity: 100 pieces

Standard Information

• Brand: BRAMEC
• Manufacturer Part Number: 13643
