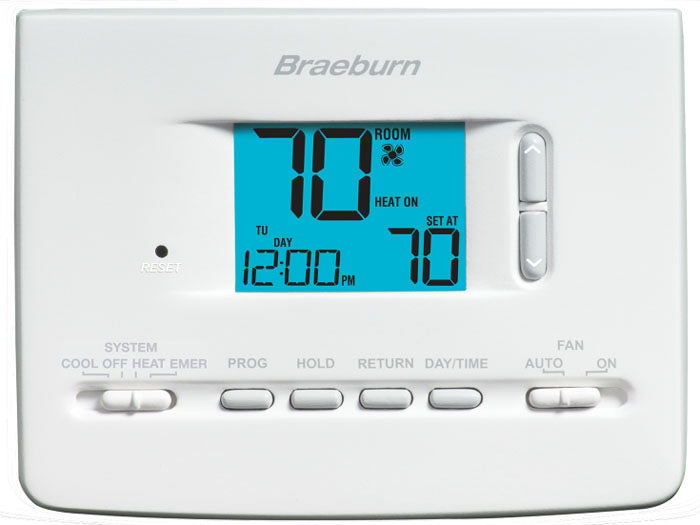

BRAEBURN SYSTEMS BRA-2220NC Programmable Thermostat

Product Description

The BRAEBURN SYSTEMS BRA-2220NC is a digital programmable thermostat suitable for multi-stage, two heat and one cool systems, including conventional and heat pump setups. It operates on a twenty-four Volt AC power supply with a four Amp current rating. This thermostat can be powered via hardwired connection or with two AA alkaline batteries. The unit has a bright blue backlight that enhances display visibility and features non-volatile memory to store user settings even during power loss.

• Offers five to two day programming for tailored temperature management.
• Incorporates permanent memory to keep settings during outages.
• Includes temporary program override and programmable extended hold mode for convenient operation.

Product Highlights

This thermostat demonstrates versatility in temperature control, suitable for various HVAC applications and equipped with several user-friendly features.

Product Information

Standard Information

• Brand: BRAEBURN SYSTEMS
• MPN: BRA-2220NC

Technical Specifications

• Thermostat Type: Digital Programmable, 2-Heat/1-Cool (Conventional/Heat Pump), Multi-Stage
• Voltage Rating: 24 Volt AC
• Current Rating: 4 Amp
• Temperature Rating: 45 to 90 Deg F
• Size: 4.72 Inch Width x 1.38 Inch Depth x 3.62 Inch Height
• Display Size: 2 Square Inch
• Battery Type: 2 AA Alkaline
• Terminal Designation: Rc, Rh, B, O, Y1, E/W1, G, C, W2
• Humidity Range: 5 to 95 Percent
• Accuracy: +/- 1 Deg F
• Features: Bright blue backlight, hardwire or battery powered, adjustable temperature differential, adaptive recovery mode, compressor short cycle protection, and ESD guard circuitry.
