Braeburn Systems 8500 Wireless Therm 3H/2C BlueLink

Product Description

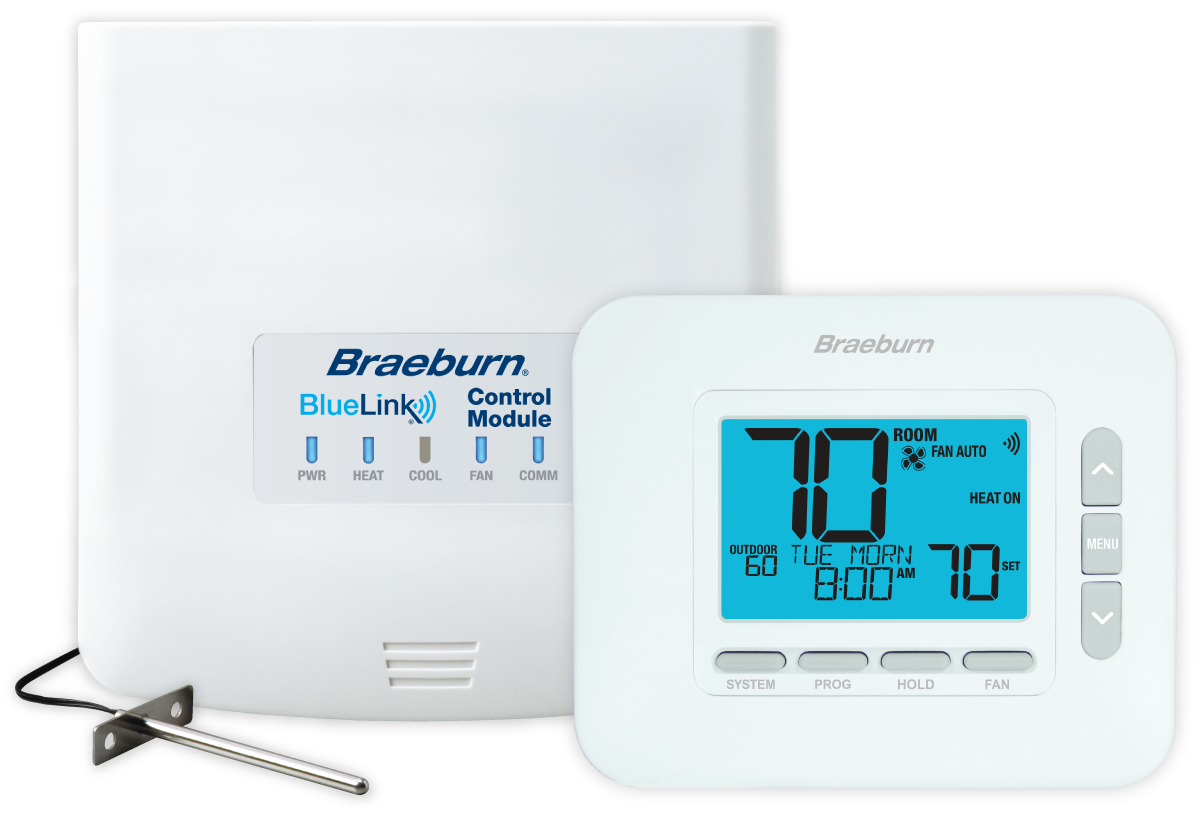

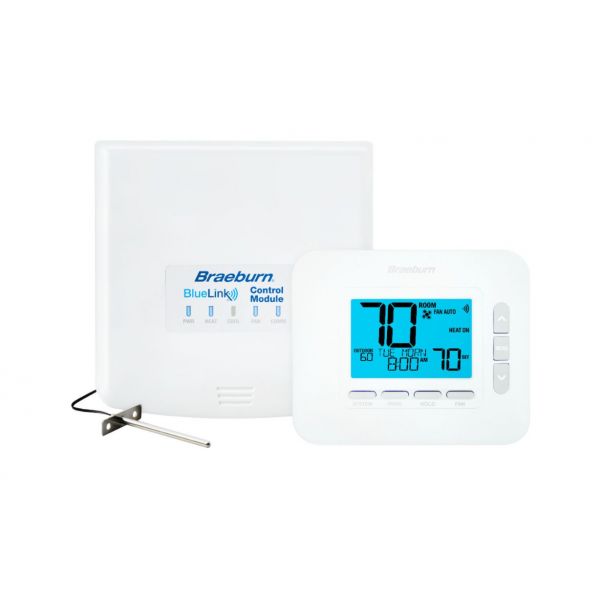

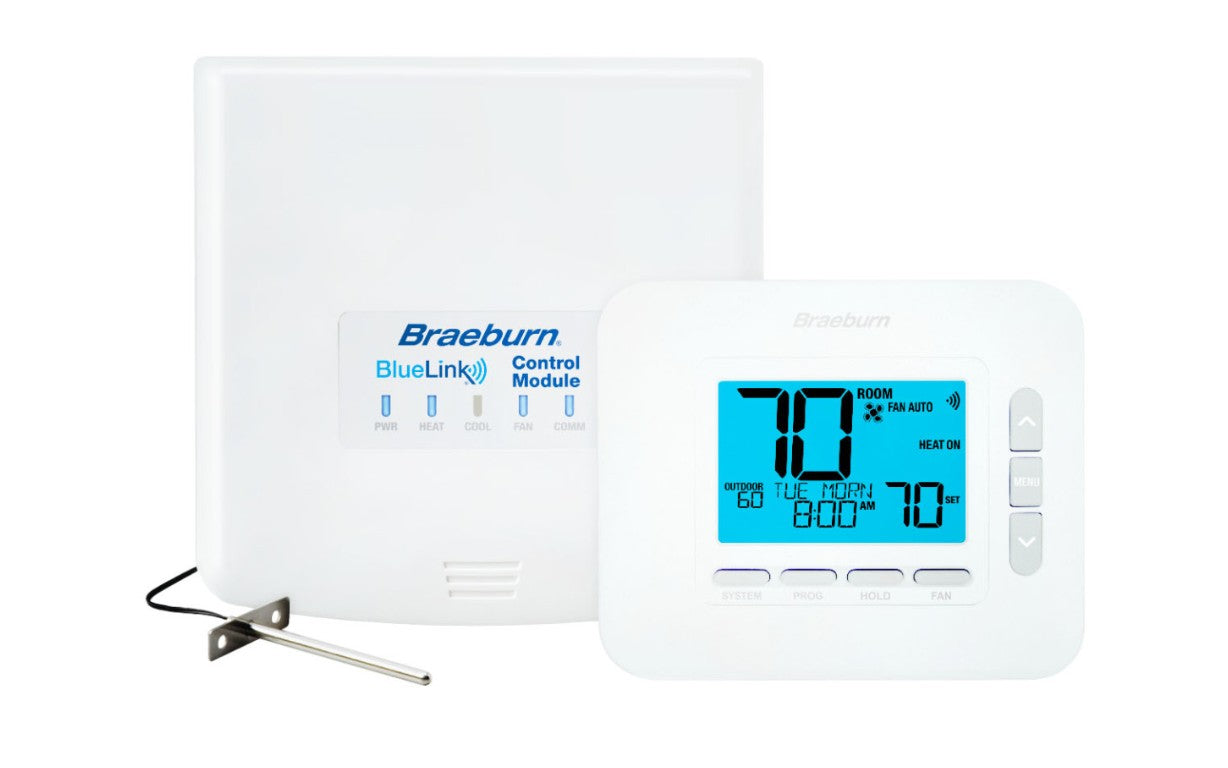

The BRAEBURN SYSTEMS 8500 is a universal wireless thermostat kit designed for managing multi-stage temperature regulation. It supports up to 3 Heat / 2 Cool heat pump systems or 2 Heat / 2 Cool conventional systems, allowing relocation or addition of a thermostat without new wiring. This kit includes a control module and return-air sensor, ensuring comfort even if the wall unit's batteries fail. The 8500 model is Wi-Fi enabled for remote access via the BlueLink Smart Connect Application, making it suitable for residential and light commercial HVAC environments.

• Wireless connectivity and BlueLink compatibility for remote access
• Supports up to 3 Heat / 2 Cool heat pump or 2 Heat / 2 Cool conventional systems
• Includes control module and return-air sensor for reliable operation

Product Highlights

Universal wireless thermostat kit with Wi-Fi connectivity and multi-stage heating/cooling control.

Product Information

Standard Information

• Brand: BRAEBURN SYSTEMS
• Manufacturer Part Number: 8500

Technical Specifications

• Manufacturer Part Number: 8500
• Brand: Braeburn Systems
• Category: Thermostat - Wi-Fi/SmartStat
• Kit Includes: Wireless programmable thermostat, equipment-mounted control module, batteries, return-air plenum sensor
• Application: Universal wireless thermostat kit for relocating/adding a low-voltage thermostat without new control wiring
• Conventional System Types: Single-stage and multi-stage gas, oil, electric, or hydronic systems up to 2 Heat / 2 Cool
• Heat Pump System Types: Heat pump systems up to 3 Heat / 2 Cool (including auxiliary heat)
• Hydronic Compatibility: Compatible with 2- or 3-wire hydronic zone systems
• Remote Sensors: Supports up to 4 wireless indoor sensors; optional wireless or wired outdoor sensors for temperature display / balance-point control
• Programming Options: 7-day, 5-2 day, or non-programmable (manual) selectable
• Changeover Type: Auto or manual
• Operating Modes: Residential or commercial mode selection
• Fan Control: Programmable fan control; fan output via control module
• Fossil Fuel Option: Auxiliary heat fossil-fuel (dual-fuel) option built in
• Temperature Limits: Adjustable high/low setpoint limits (SmartLimit-style)
• Keypad Lockout: Multi-level keypad lockout for tamper resistance
• Control Module Terminals: Rh, Rc, G, W1/E, W2/AUX, Y1, Y2, O/B/V3, L, C, P1, P2, S1, S2
• Control Voltage: 24 VAC low-voltage
• Control Module AC Power: 18–30 VAC
• Thermostat Power: 3.0 VDC from two AA alkaline batteries (included) optional 24 VAC via R and C terminals
• Electrical Rating: 1 A maximum load per terminal 5 A total maximum (all terminals)
• Control Temperature Range: 45–90°F (7–32°C)
• Display Temperature Range: 40–99°F (5–37°C)
• Temperature Accuracy: ±1°F (±0.5°C)
• Outdoor Display Range (When Used): −40 to 120°F (−40 to 49°C)
• Operating Humidity: 5–95% RH, non-condensing
• Storage Temperature: 14–140°F (−10–60°C)
• Compatible System Types: Conventional, Dual Fuel, Heat Pump, Hydronic
• Connectivity: RF
• Kit Type: Kit
• Series: Wireless
• Display Size: 4.4 Sq. In.
• Backlight: Bright Blue
• Circulating Fan: No
• Humidity Control: No
• Fresh Air Terminal: No
• Dry Contact Input: No
• Wireless Technology: BlueLink
