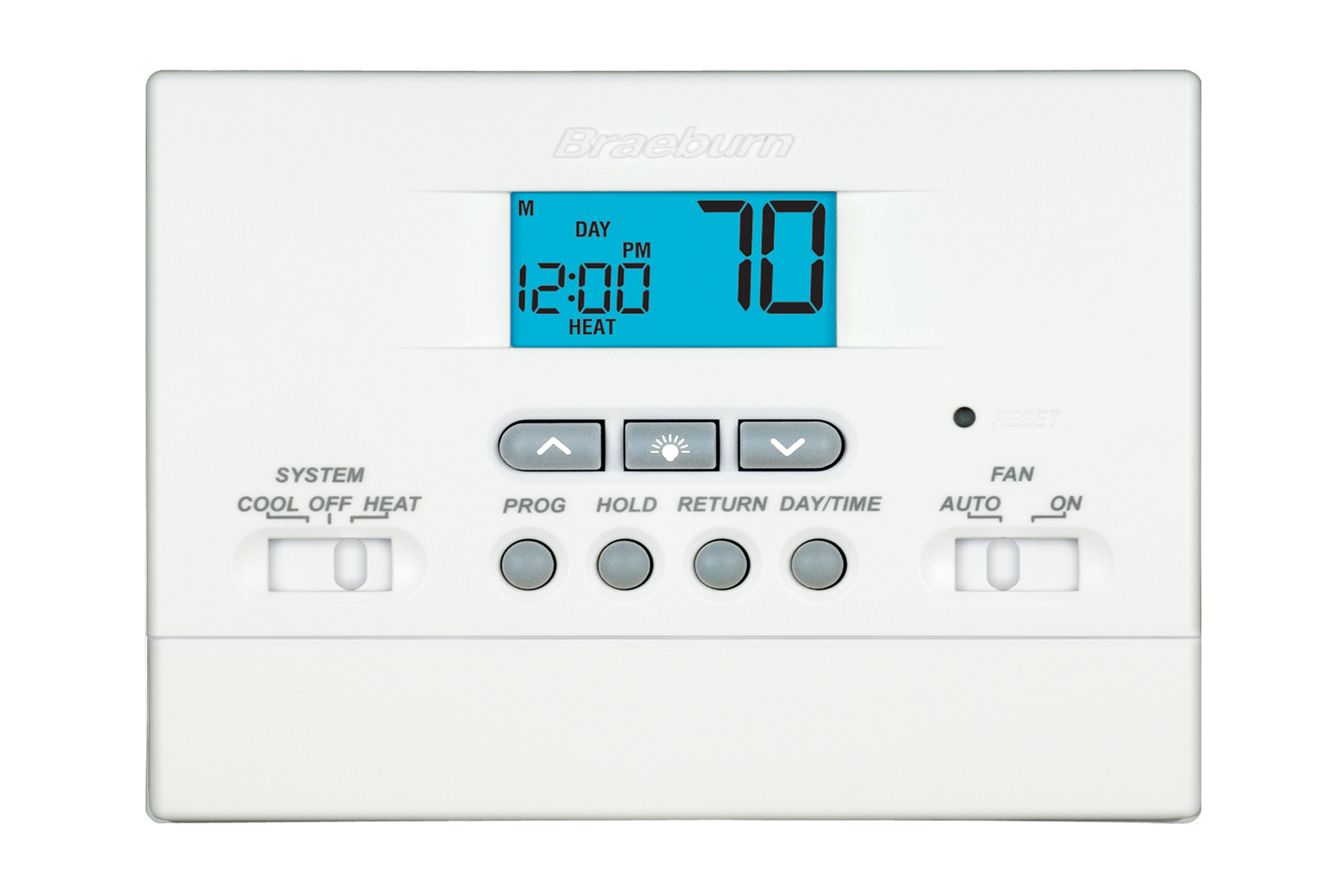

Braeburn Systems 2000NC Builder Series Thermostat

Product Description

The BRAEBURN SYSTEMS 2000NC Builder Series Thermostat is a discontinued programmable thermostat. It features a 5-2 day program, and is compatible with both battery and hardwired power sources. The thermostat has a 1.15 sq-in blue display and a temperature setting range of 45 - 90 deg F.

• 5-2 day Programmability
• Battery/Hardwired Power Source
• 1 Heat/1 Cool Stage

Product Highlights

Programmable thermostat with 5-2 day programming and a blue display. Suitable for both battery and hardwired power.

Product Information

Standard Information

• Brand: BRAEBURN SYSTEMS
• Manufacturer Part Number: 2000NC

Technical Specifications

• Model: 2000NC
• Product Type: Programmable Thermostat
• Accuracy: +/-1 deg F
• Amperage Rating: 1 - 3 A
• Battery Type: (2) AA Alkaline
• Differential Temperature: 0.5, 1 or 2 deg F
• Display Type: 1.15 sq-in Blue
• Humidity Rating: 5 - 95% RH
• Mounting Type: Horizontal
• Number of Stages: 1 Heat/1 Cool
• Power Source: Battery/Hardwired
• Programmability: 5-2 day Program
• Series: Builder
• Temperature Rating: 14 - 140 deg F Storage
• Temperature Settings: 45 - 90 deg F
• Terminal Designation: RC, RH, B, O, Y, W, G, C
• Voltage Rating: 18 - 30 VAC, 3 VDC
• Stages: 1 Heat / 1 Cool
• Touchscreen: No
