Braeburn Systems 109006 Round Damper PO/PC 24 VAC 6 Inch

Product Description

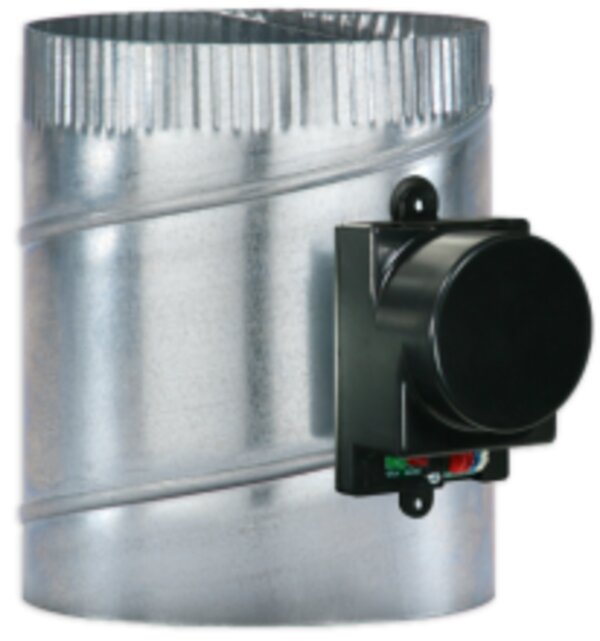

The Braeburn Systems 109006 is a 6-inch round motorized damper designed for power open and power close operation. It features heavy-duty galvanized construction and operates on 24 VAC power. This damper is suitable for use as a zone damper or bypass damper, offering precise airflow control in HVAC systems. It has a high torque actuator and dual LEDs for open/closed indication.

• Power Open, Power Close Operation for controlled airflow.
• Heavy Duty Galvanized Construction with Precision Rolled Stiffening Ribs.
• Dual LEDs provide positive indication of open to close status.

Product Highlights

Versatile 6-inch round motorized damper with 24 VAC power, ideal for zone or bypass applications.

Product Information

Standard Information

• Brand: BRAEBURN SYSTEMS
• Manufacturer Part Number: 109006

Technical Specifications

• Construction: 24 Ga. Galvanized (4- 8) 22 Ga. Galvanized (9- 20)
• Input Power: 24 VAC, 4 VA, 50/60 Hz, 6W, 100 mA
• Actuator Torque: High torque (283 in/oz. (17.70 in/lbs.) 2Nm)
• Status Indicators: Dual LEDs Indicate Open and Closed
• Wiring Terminals: Three Quick Connect Wiring Termina
• Actuation Time: Nominal 13.5 sec. Powered
• Max Static Pressure: 2.0 W.C.
• Operating Temperature: 0F to 150F
• Storage Temperature: -20F to 175F
• Operating Humidity: 5% to 95% Non-Condensing
• Application: Zone Damper or Bypass Damper
• Motorized: Yes
• Shape: Round
• Diameter: 6 Inch
• Spring Return: Non-Spring Return
• Damper Type: Round Dampers
