Bradford White BW-233-48077-03 Gas Pilot Assembly

Product Description

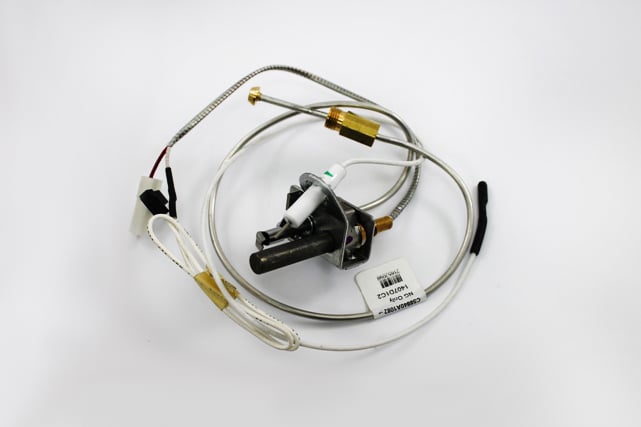

The BRADFORD WHITE BW-233-48077-03 is a natural gas pilot assembly designed for use in residential and light commercial water heating systems. The pilot assembly serves as the ignition source for the main burner, maintaining a continuous standing flame that signals the gas valve to open when heat is called for. This component is a direct replacement part intended for installation by licensed plumbers and water heater service technicians. It includes the pilot burner, thermocouple lead, and associated tubing as a complete assembly, simplifying the service call and reducing diagnostic guesswork.

This pilot assembly is suited for natural gas water heater applications where the original pilot assembly has failed, shows signs of corrosion or blockage, or produces an unreliable flame. It is typically installed during routine water heater servicing or as part of a no-hot-water diagnostic repair. The assembly is engineered to restore proper ignition function to the water heater's standing pilot system.

Key Features

• Complete pilot assembly including burner, thermocouple, and tubing for a single-unit replacement
• Designed for natural gas fuel type — not for use with propane or LP systems
• OEM-style replacement for standing pilot water heater configurations
• Simplifies field service by replacing all pilot-circuit components at once
• Direct fit reduces need for field modification or adaptation

Compatibility

Designed as an OEM-style replacement pilot assembly for Bradford White natural gas water heaters equipped with a standing pilot ignition system. Refer to the unit's rating plate and service documentation to confirm fitment before installation.

Installation Notes

Installation should be performed by a licensed plumber or qualified water heater service technician in accordance with local codes and the appliance manufacturer's service documentation. Before beginning work, shut off the gas supply at the nearest upstream shutoff valve and allow the unit to cool. Verify the replacement assembly is rated for natural gas and matches the original configuration before connecting the thermocouple lead and pilot tubing. After installation, follow the manufacturer's lighting procedure and confirm a stable pilot flame before restoring the gas supply to the main burner.

Technical Specifications

• Fuel Type: Natural Gas
• Assembly Type: Standing Pilot Assembly

Standard Information

• Brand: BRADFORD WHITE
• Manufacturer Part Number: BW-233-48077-03
