BOSHART TFP-2TK1412M4CVNL Tank Tee Package 30-50 PSI 1 inches x 13 inches MPT

Brand: BOSHART
SKU: TFP-2TK1412M4CVNL
Availability: In Stock

Ships same day if ordered by 12 pm
$189.37
$189.37
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

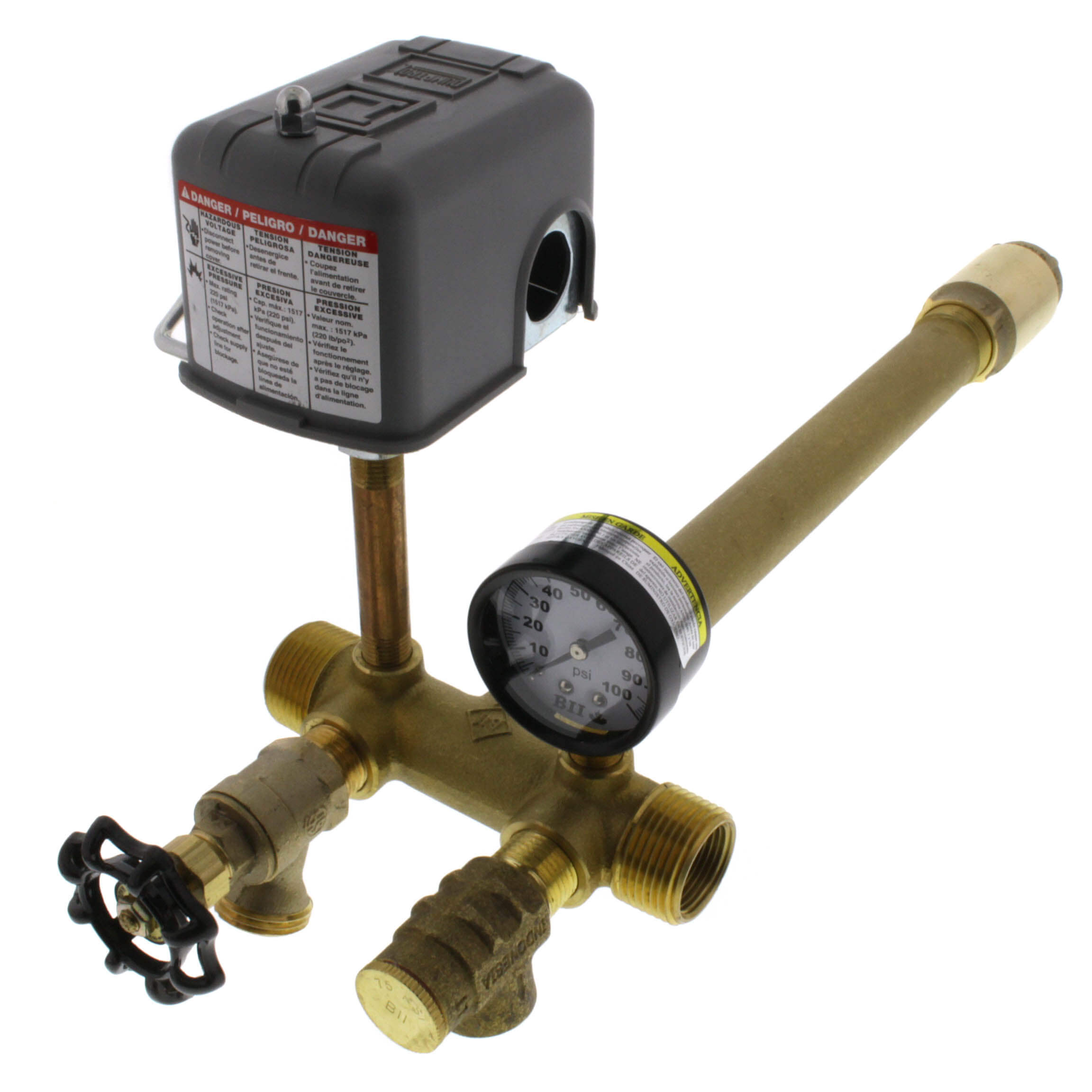

The BOSHART TFP-2TK1412M4CVNL is a solid brass tank tee package. It includes a tank tee with a 1 inch MPT tank connection and a 1 inch MPT x 3/4 inch FPT in-line connection, a sediment faucet with a 1/2 inch MPT brass boiler drain, a pressure gauge, a pressure switch with a 30-50 PSI close-open pressure setting, a red brass nipple, a brass relief valve with a 75 PSI factory pressure setting, and a bronze check valve.

  • Brass Material
  • Lead Free
  • Accessory Application

Product Information

Standard Information

  • Brand: BOSHART
  • Manufacturer Part Number: TFP-2TK1412M4CVNL

WARNING: This product can expose you to chemicals including lead, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

Technical Specifications
Tank Connection
1 inch MPT
Pressure Setting (Close-Open)
30-50 PSI
Pressure Gauge PSI Range
0-100
Sediment Faucet Connection
1/2 inch MPT Brass Boiler Drain
Relief Valve Size (In)
1/2 inch MPT
Relief Valve Size (Out)
1/2 inch FPT
Relief Valve Factory Pressure Setting
75 PSI
Check Valve Max. Temp
180�F
Check Valve Max. Pressure
200 PSI
Operating Temperature
32�F-104�F
Relief Valve Max. Operating Temperature
140�F

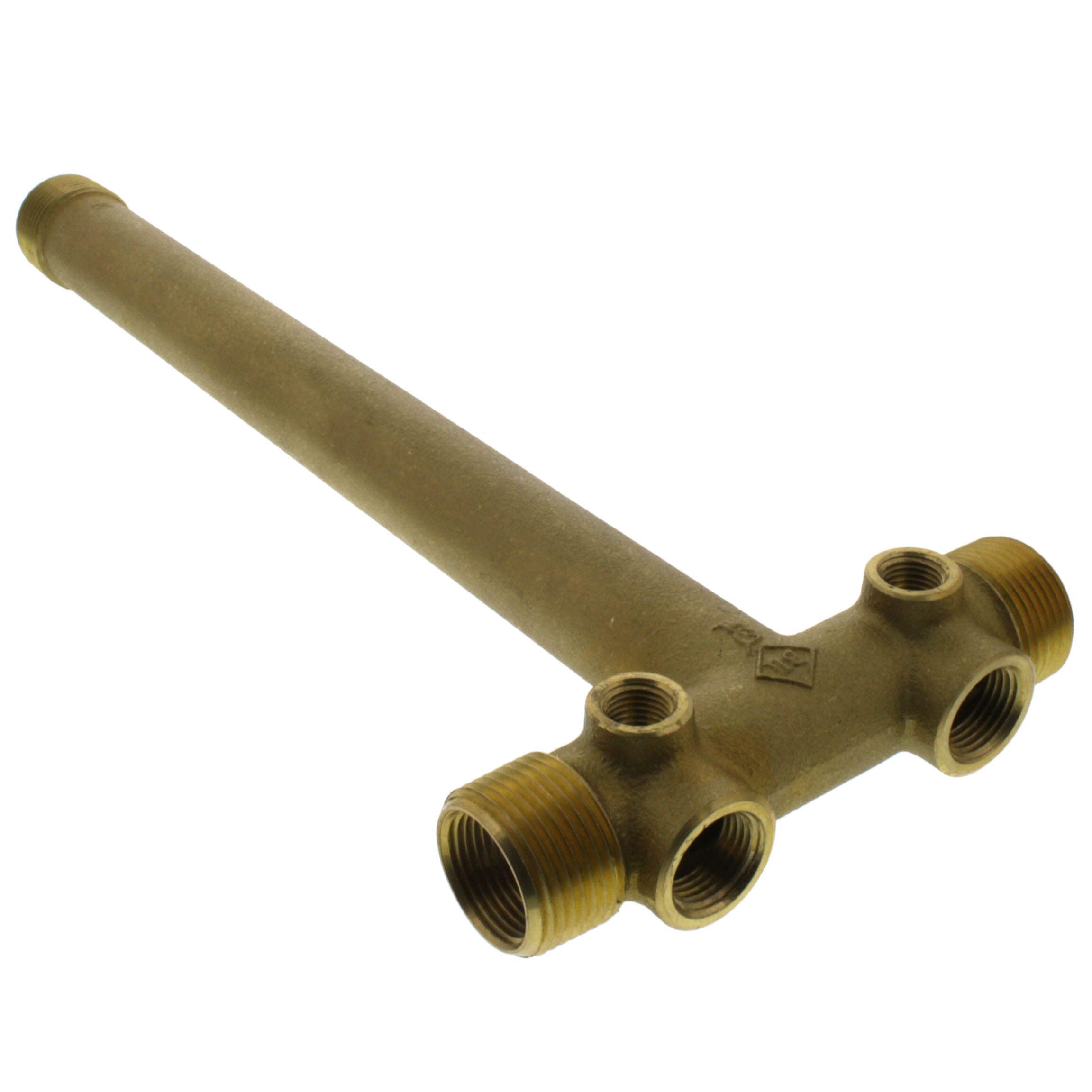

Tank Tee Model 2-07TK-14X1-2NL - In-line connection
1 inch MPT x 3/4 inch FPT
Tank Tee Model 2-07TK-14X1-2NL - Centre end length
13 inches
Tank Tee Model 2-07TK-14X1-2NL - Drain/Relief ports
(2) 1/2 inch
Tank Tee Model 2-07TK-14X1-2NL - Accessory ports
(2) 1/4 inch
1/2 inch MPT Boiler Drain Model 0853-05NL - Max pressure rating
125 psi
1/2 inch MPT Boiler Drain Model 0853-05NL - Max temp rating
212�F (100�C)
1/2 inch MPT Boiler Drain Model 0853-05NL - Packing material
rubber (NBR)
1/2 inch MPT Boiler Drain Model 0853-05NL - Seat material
rubber (NBR)
2 inch Dry Pressure Gauge Model PG-100NL - Accuracy
3% - 2% - 3% Grade B
2 inch Dry Pressure Gauge Model PG-100NL - Pressure rating
0-100 psi
2 inch Dry Pressure Gauge Model PG-100NL - Ambient operating temperature
32 to 104�F (0 to 40�C)
2 inch Dry Pressure Gauge Model PG-100NL - Maximum media temperature
104�F (40�C)
2 inch Dry Pressure Gauge Model PG-100NL - Connection
1/4 inch lower mount
Pressure Switch model FSG2J21M4 - Connection
1/4 inch FPT
Red Brass Nipple model BRN-0230
1/4 inch x 3 inch red brass nipple
