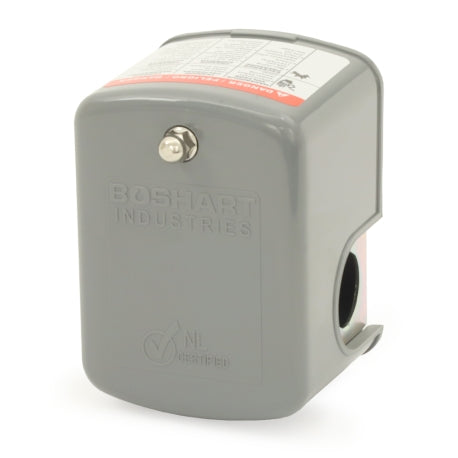

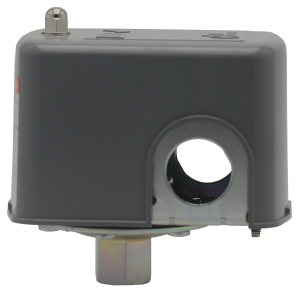

BOSHART PS02-4060 Pressure Switch

Product Description

The Boshart PS02-4060 is a diaphragm type pressure switch designed for standard duty applications. It has a factory setting of forty to sixty psi, which can be adjusted for cut-out and cut-in pressure as well as pressure differential. This switch is ideal for various setups, including electric water pumps, compressors, agricultural systems, and injection molders. You can install it with a well tank for deep well submersible pumps, or directly at the pump for jet wells.

• Adjustable pressure differential
• Compatible with submersible, jet, and reciprocating pumps
• ANSI/NSF 372 listed and lead-free compliant

Product Highlights

Product Information

Standard Information

• Model #: PS02-4060
• Manufacturer: Boshart Industries

Technical Specifications

• Factory Pressure Setting: 40-60 psi
• Pressure Range: 20-65 psi (Cut-Out), 15-30 psi (Adjustable Differential)
• Inlet Connection: 1/4 Female Threaded
• Operating/Fluid Temperature Range: 32 - 158°F
• Ambient Temperature Range: -22 - 158°F
• Enclosure Type: NEMA 1
• 1-Phase Electrical Ratings: 1-1/2 HP @ 115V, 2 HP @ 230V
