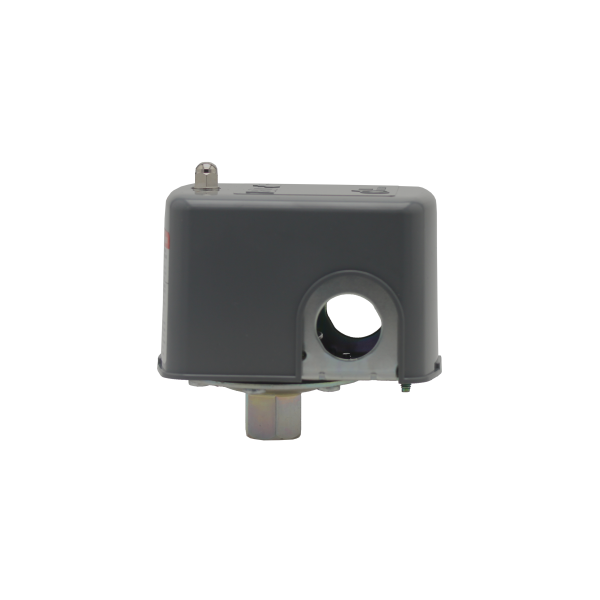

Boshart PS02-2040 Pressure Switch 20-40

Product Description

The BOSHART PS02-2040 pressure switch is designed for controlling electrically driven water pumps, including jet, submersible, and reciprocating types. It features standard action contacts that open on rising pressure. This lead-free switch is suitable for small water pump applications. It has an operating pressure rating of 20 to 40 PSI.

• Standard action - contacts open on rising pressure
• Standard Action Contacts Open on Rising Pressure
• Lead-Free

Product Highlights

Designed for electric water pumps, the BOSHART PS02-2040 pressure switch ensures reliable control with its standard action and lead-free construction.

Product Information

Standard Information

• Brand: BOSHART
• Manufacturer Part Number: PS02-2040
• Country of Origin: China

Technical Specifications

• Brand: Boshart Industries
• Category: Gauges & Switches
• Country of Origin: China
• Height: 3.800 in
• Length: 2.700 in
• Width: 3.800 in
• Model #: PS02-2040
• Manufacturer: Boshart Industries
• Application: Small Water Pump, Jet/Submersible/Reciprocating Pump
• Approval: UL, CSA, NSF/ANSI 372
• Connection Type: 1/4 Inch Female Threaded
• Contact Rating: 1.5 HP at 115 Volt, 2 HP at 230 Volt 1-Phase
• Differential Pressure Rating: 15 to 30 PSI
• Enclosure: NEMA 1
• Operating Pressure Rating: 20 to 40 PSI
• Pressure Media: Water
• Type: Standard Duty
• Temperature Rating: -22 to 158 Deg F (Ambient), -22 to 257 Deg F (Media)
