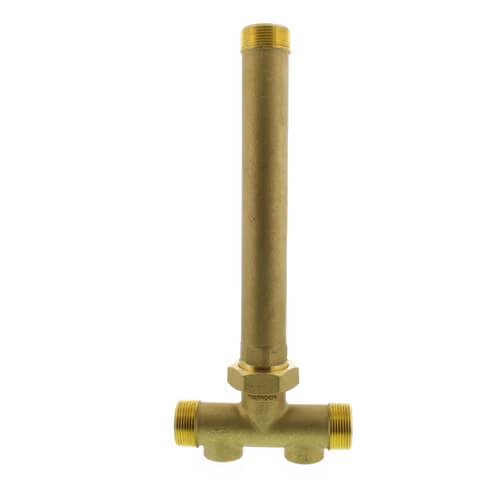

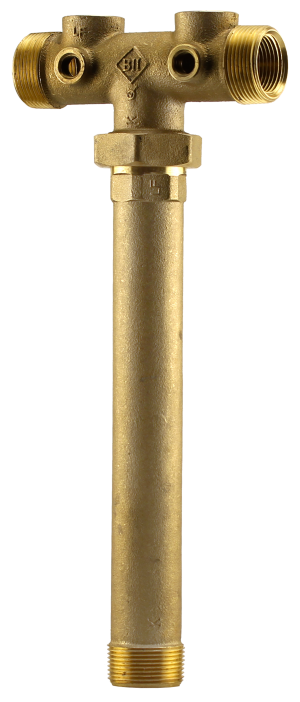

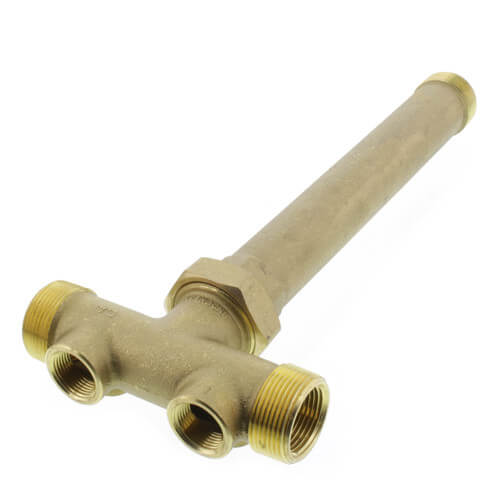

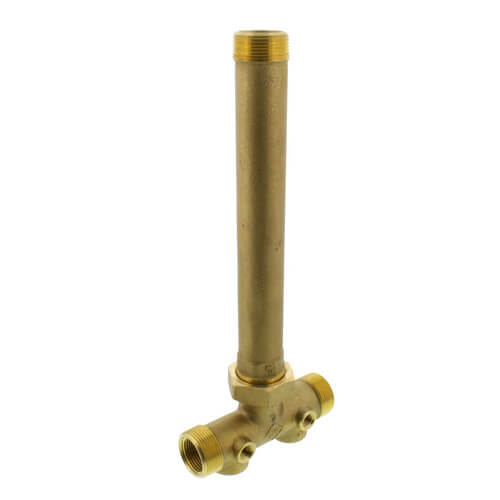

Boshart 2-07TKO-13-2UNL Union Tank Tee

Product Description

The Boshart Union Tank Tee, model number 2-07TKO-13-2UNL, is designed to simplify the installation of water systems. Made from brass, this tee features a union style design that allows for easy tank replacement.

• Includes two 3/4 FPT drain/relief ports.
• Equipped with two 1/4 FPT accessory ports.
• Features a 1-1/4 FPT tank connection and a 1-1/4 MPT x 1 FPT in-line connection.

Product Highlights

The product ensures a reliable and watertight connection, facilitated by an O-ring. It is ideal for water applications requiring efficient drainage and relief options.

Product Information

Standard Information

• Brand: Boshart
• MPN: 2-07TKO-13-2UNL

Technical Specifications

• Manufacturer Part Number: 2-07TKO-13-2UNL
• Primary Material: Brass
• Tank Connection: 1-1/4 MPT
• In-line Connection: 1-1/4 MPT x 1 FPT
• Drain/Relief Ports: (2) 3/4 FPT
• Accessory Ports: (2) 1/4 FPT
• O-Ring Material: Nitrile Rubber
• O-Ring Size: AS 568-320
• Fitting/Connector Type: Tee
• End Style: FNPT x MNPT x FNPT
• Nominal Size: 1-1/4 x 1-1/4 x 1 in
• Length: 14.1 in
• Dimensions: 5.95 in W x 2.3 in H
• Lead Free: Yes
• Centre End Length: 13
• Imported: Yes
