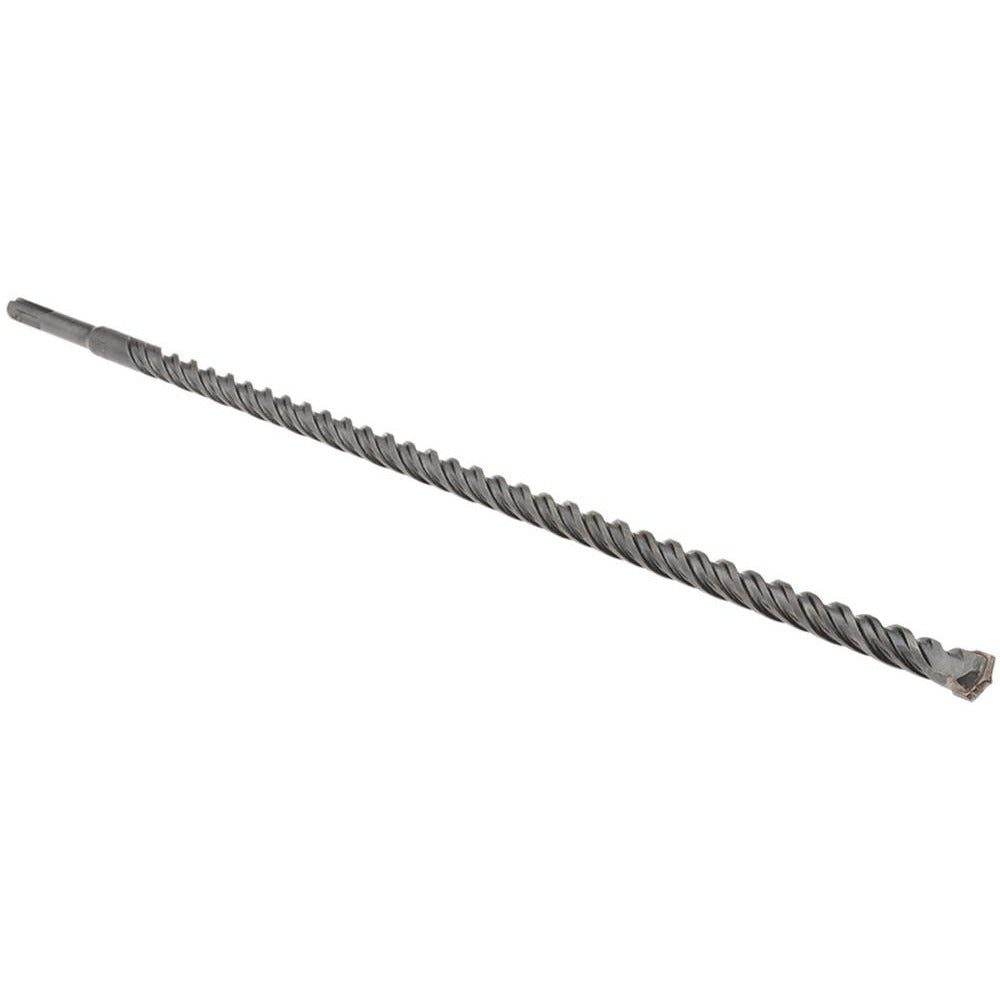

Bosch HC2097 Sds-plus Rotary Hammer Drill Bit 9/16 in

Product Description

The BOSCH HC2097 is a carbide-tipped SDS-Plus rotary hammer drill bit designed for high-impact drilling into concrete and masonry. The 9/16 inch diameter bit measures 18 inches in overall length with 16 inches of usable flute length, giving tradespeople extended reach for deep anchor holes and through-hole applications. The four-flute carbide-tipped design evacuates debris efficiently during rotary hammer operation, maintaining consistent penetration rates in dense substrates. This bit is used by concrete drilling contractors, electricians, plumbers, and HVAC installers who need to set anchors or route penetrations through concrete block, brick, or poured concrete.

The HC2097 fits any SDS-Plus rotary hammer and is suited for residential and commercial applications where anchor setting and through-hole drilling in concrete or masonry are required. Typical install scenarios include setting threaded rod anchors, conduit sleeves, pipe penetrations, and equipment mounting points. The extended 18 inch overall length is well suited for reaching through thick walls or drilling deep anchor pockets without extension accessories.

Key Features

• Carbide-tipped cutting edges for durability in concrete and masonry
• SDS-Plus shank for positive engagement in compatible rotary hammer chucks
• 16 inch flute length provides maximum debris evacuation on deep holes
• Four-flute geometry for fast chip removal and reduced bit binding
• Meets ANSI standards for rotary hammer drill bits
• Single-piece construction rated for anchoring and through-hole drilling applications

Compatibility

Designed for use with SDS-Plus rotary hammers in residential and commercial concrete and masonry drilling applications, including anchor setting and through-hole conduit or pipe penetrations.

Installation Notes

Installation is performed by licensed tradespeople or experienced contractors using an SDS-Plus rotary hammer. Confirm the drill is set to hammer-and-rotate mode before beginning; never use rotary-only mode in dense concrete without verifying bit and chuck compatibility. Wear appropriate PPE including eye protection and hearing protection during operation. Consult applicable building codes and anchor manufacturer instructions when drilling for structural fasteners.
