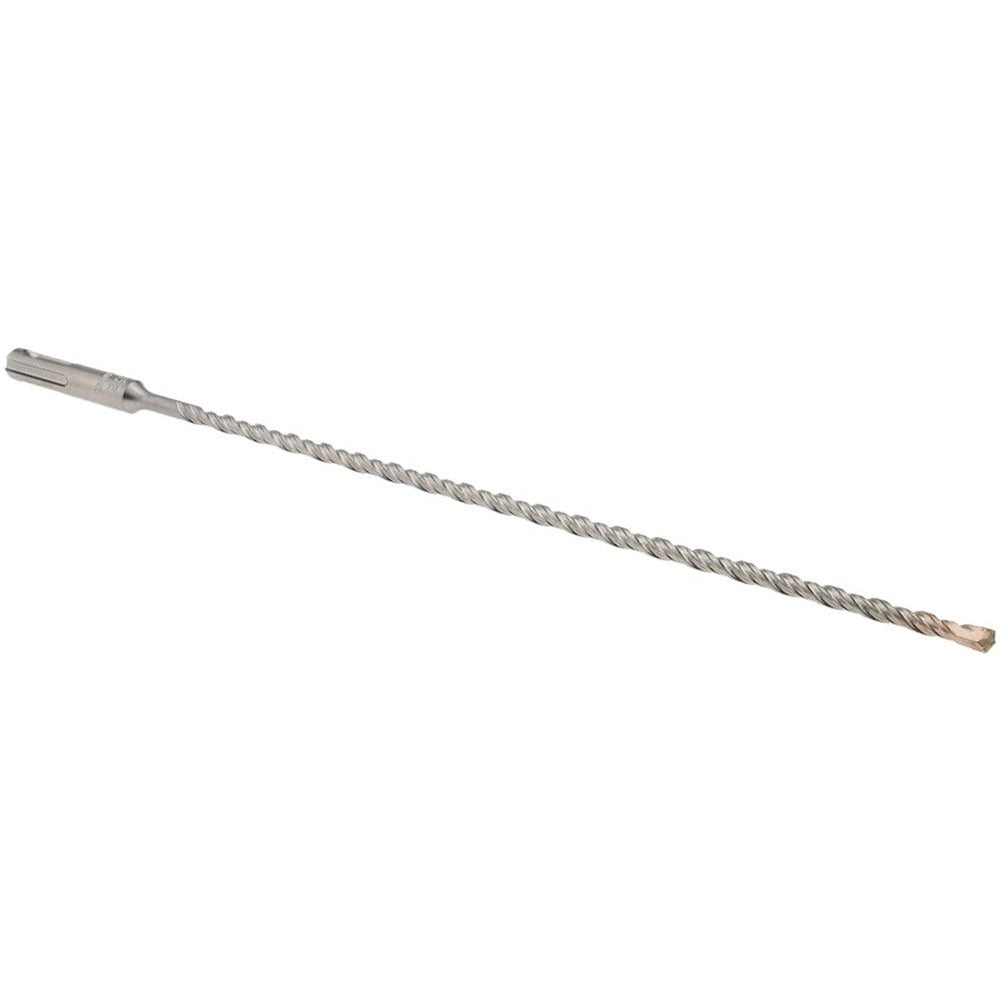

Bosch HC2034 Sds-plus Rotary Hammer Drill Bit 7/32 in

Product Description

The BOSCH HC2034 is a carbide-tipped rotary hammer drill bit designed for use in SDS-Plus rotary hammers. Built with a high-speed steel body and a carbide-tipped cutting end, it handles the impact and rotation demands of hammer drilling into concrete and masonry. The bit measures 7/32 inch (0.2188 inch) in diameter, with a 10-inch flute length and a 12-inch overall length. The 4-flute design aids in flute clearance and debris removal during drilling. This bit is installed by HVAC technicians, electricians, plumbers, and general contractors who need to anchor fasteners or create through-holes in concrete and masonry substrates.

The HC2034 is suited for residential and commercial applications where SDS-Plus rotary hammers are the standard tool. Common uses include setting anchor bolts, installing conduit hangers, running pipe supports, and drilling through-holes in concrete block, poured concrete, brick, and similar masonry materials. The 12-inch overall length provides adequate reach for deeper substrate work and through-wall applications typical in trade rough-in work.

Key Features

• Carbide-tipped cutting end for durability in concrete and masonry
• SDS-Plus shank for positive bit retention and impact energy transfer
• 7/32 inch diameter with 10-inch flute length for deep-reach drilling
• 4-flute geometry supports debris evacuation during hammer drilling
• High-speed steel body withstands rotary hammer impact loads
• Meets ANSI standards for drill bit geometry and dimensional accuracy

Compatibility

Designed for use with SDS-Plus rotary hammers. Suitable for anchoring and through-hole drilling applications in concrete and masonry.

Installation Notes

This bit is installed and used by licensed electricians, plumbers, HVAC technicians, and contractors working with SDS-Plus rotary hammers. Always wear appropriate PPE including eye and hearing protection when operating rotary hammer equipment. Inspect the bit for carbide tip damage or shank wear before each use and remove the bit only after the tool has come to a complete stop. Consult applicable codes such as NEC or IPC for anchor placement requirements specific to your trade application.
