Bosch BMS500AAM0271CSXRC Climate 5000 2.5 Ton Variable-Stage Ductless Mini-Split Heat Pump 3 Zones

Product Description

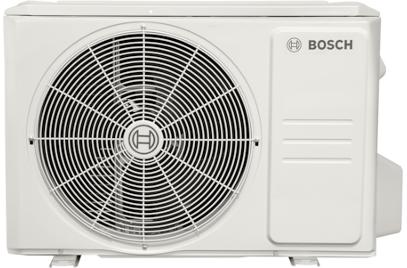

The Bosch Climate 5000 Series outdoor heat pump, model BMS500AAM0271CSXRC, is a high-efficiency solution for multi-zone residential and light commercial applications. This 2.5-ton unit delivers reliable heating and cooling without ductwork, suitable for new construction and retrofits. Engineered for quiet and dependable performance, the system provides consistent comfort across a broad range of temperatures.

• High-efficiency solution for multi-zone residential and light commercial applications
• Delivers reliable heating and cooling without the need for ductwork
• Smart inverter technology ensures energy usage is matched precisely to heating and cooling demands

Product Highlights

This Bosch Climate 5000 heat pump provides consistent comfort, energy savings, and improved humidity control for residential and light commercial use.

Product Information

Standard Information

• Brand: BOSCH
• Manufacturer Part Number: BMS500AAM0271CSXRC
• Country of Origin: CHINA

Technical Specifications

• BTU Cooling Rating: 28,000 BTU/h
• BTU Heating Rating: 28,000 BTU/h
• Compressor Type: Rotary
• Depth: 16.14 in
• EER2: 11.7-12.7
• ENERGY STAR Certified: Yes
• HSPF2: 7.0-9.5
• Height: 31.89 in
• Liquid Line Size: 1/4 in
• Max Breaker Size: 30 A
• Model Number: BMS500
• Number of Stages: Variable-Stage
• Number of Zones: 3
• Phase: 1 ph
• Product Family: Climate 5000
• Product Type: Heat Pump
• Refrigerant Type: R-410A
• SEER2: 21.0-24.6
• Sound Level: 61 dB(A)
• Suction Line Size: 3/8 in
• Tonnage: 2.5 Ton
• Voltage Rating: 208/230 V
• Nominal Cooling: 28000
• Nominal Heating: 28000
• Electrical Designation: 1-60-208/230
• Refrigerant: R410A
• SEER: 24.6
• EER: 12.7
• HSPF: 9.5
• Compressor Speed: Inverter
• Circuit Breaker Capacity: 30.0
• Building Type: Residential
• Cooling Temperature Range °F: - 13 - 122
• Heating Temperature Range °F: - 13 - 86
• Max. # of Connectable Indoor Units: 3
• Max. Connectable Capacity: 36
• Max. Cooling Capacity BtuH: 30,438
• Max. Fuse Size: 30
• Max. Heating Capacity BtuH: 31,000
• Max. Total Pipe Length: 197.00
• Min. # of Connectable Indoor Units: 1
• Min. Connectable Capacity: 18
• Min. Cooling Capacity BtuH: 9,838
• Min. Heating Capacity BtuH: 8,218
• Min. Total Pipe Length: 25.00
• Nom. Capacity: 28,000
• Sound Pressure Cooling dBA: 61
• Sound Pressure Heating dBA: 61
• System #: AAM027-1CSXRC
• Unit Type: HMSV-A-CB
• Volts: 230
• Zone Type: Multi
