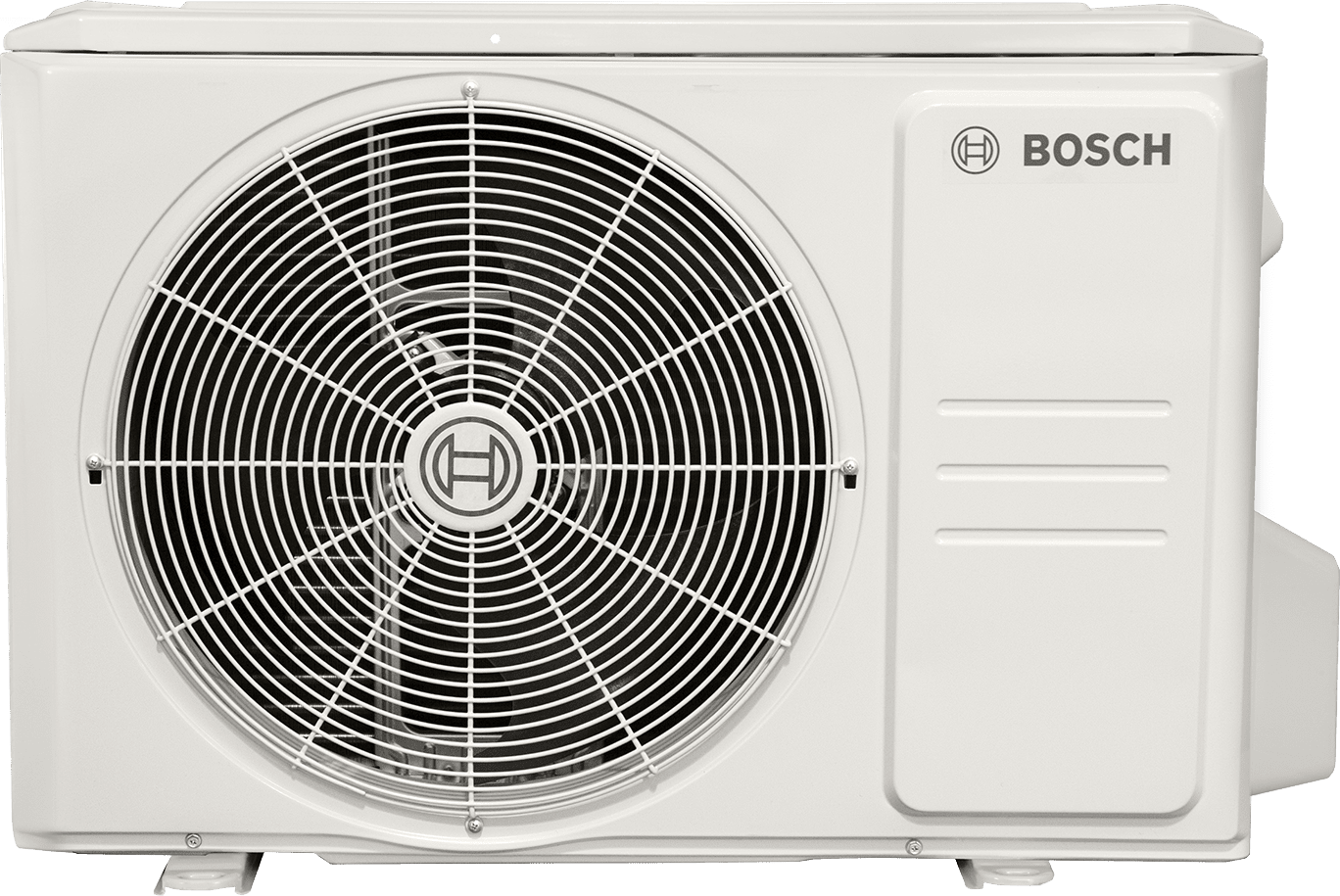

Bosch BMS500AAM0271CSXHC Climate 5000 2.5 Ton Outdoor Unit

Product Description

The Bosch BMS500AAM0271CSXHC Climate 5000 multi-zone outdoor heat pump offers an efficient solution for heating and cooling up to three zones. The variable-stage rotary compressor adjusts output to match demand, ensuring consistent comfort. This 2.5-ton unit delivers 100% heating capacity at temperatures as low as 5°F. It is compatible with various indoor unit types for residential applications.

• Low-Ambient Performance: Provides reliable heating and cooling in extreme temperatures, with an operating range down to -22°F.
• High-Efficiency Operation: ENERGY STAR certified system delivers efficiency ratings of up to 23.0 SEER2 and 10.6 HSPF2, reducing energy costs.
• Base Pan Heater: Includes a factory-installed base pan heater to prevent ice buildup and ensure consistent performance in cold climates.

Product Highlights

This Bosch Climate 5000 heat pump features multi-zone capability, flexible control, and a 10-year limited warranty for residential applications. It operates on R-410A refrigerant and has a sound level of 63 dB(A).

Product Information

Standard Information

• Brand: BOSCH
• Manufacturer Part Number: BMS500AAM0271CSXHC

Technical Specifications

• BTU Cooling Rating: 28,000 BTU/h
• BTU Heating Rating: 28,000 BTU/h
• Compressor Type: Rotary
• Depth: 16.14 in
• EER2 Range: 11.7-12.5
• EER2: 11.0~12.0
• ENERGY STAR Certified: Yes
• HSPF2 Range: 9.5-10.6
• HSPF2: 9.0~10.0
• Height: 31.89 in
• Liquid Line Size: 1/4 in
• Max Breaker Size: 40 A
• Model Number: BMS500
• Number of Stages: Variable-Stage
• Number of Zones: 3
• Phase: 1 ph
• Product Family: Climate 5000
• Product Type: Heat Pump
• Refrigerant Type: R-410A
• SEER2 Range: 20.0-23.0
• SEER2: 20.0~21.0~22.0~23.0
• Sound Level: 63 dB(A)
• Suction Line Size: 3/8 in
• Tonnage: 2.5 Ton
• Voltage Rating: 208/230 V
• Width: 37.24 in
• Product Weight: 167.99 lbs
