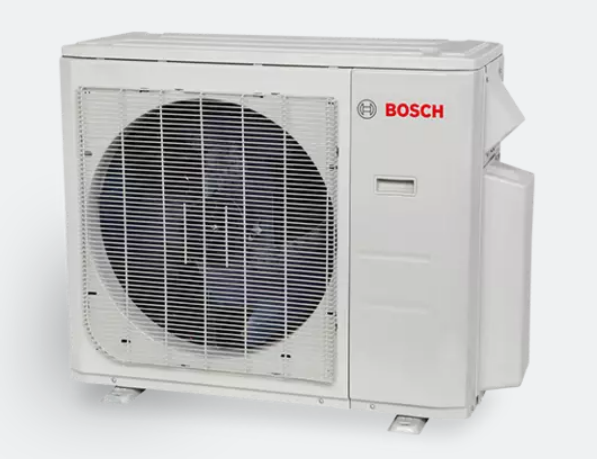

Bosch BMS500-AAS024-1CSXRA Climate 5000 2 Ton Mini Split Heat Pump Outdoor Unit

Product Description

The Bosch BMS500-AAS024-1CSXRA Climate 5000 ductless system uses electricity to pump refrigerant and transfer heat. In cooling mode, it moves heat from the inside to the outside. In heating mode, it absorbs heat from outside and transfers it inside. This 2 ton unit provides efficient comfort and can lower energy costs with inverter drive technology, operating as low as 61 dB.

• Can connect with 1 indoor unit
• 2 ton cooling capacity - 25,000 BTU's heating capacity
• 100% heating capacity between -5 degrees and 5 degrees, depending on system configuration

Product Highlights

The Bosch Climate 5000 is a single-zone ductless outdoor heat pump designed for efficient and reliable climate control. It utilizes variable-stage inverter technology to provide consistent heating and cooling.

Product Information

Standard Information

• Brand: BOSCH
• Manufacturer Part Number: BMS500-AAS024-1CSXRA

Technical Specifications

• Nominal Cooling: 24000
• Nominal Heating: 25000
• Indoor Matchup: 1
• Electrical Designation: 1-60-208/230
• Refrigerant: R410A
• SEER: 20.0
• EER: 12.5
• HSPF: 10.5
• Compressor Speed: Inverter
• Suction Line Size: 5/8
• Suction Line Quantity: 1
• Liquid Line Size: 3/8
• Liquid Line Quantity: 1
• Building Type: Residential
• Length (inches): 16.10
• Height (inches): 31.90
• Width (inches): 37.20
• BTU Cooling Rating: 24,000 BTU/h
• BTU Heating Rating: 25,000 BTU/h
• Compressor Type: Rotary
• Depth: 16.1 in
• ENERGY STAR Certified: Yes
• Height: 31.9 in
• Max Breaker Size: 25 A
• Model Number: BMS500
• Number of Stages: Variable-Stage
• Number of Zones: 1
• Phase: 1 ph
• Product Family: Climate 5000
• Product Type: Heat Pump
• Sound Level: 61 dB(A)
• Tonnage: 2.0 Ton
• Voltage Rating: 208/230 V
