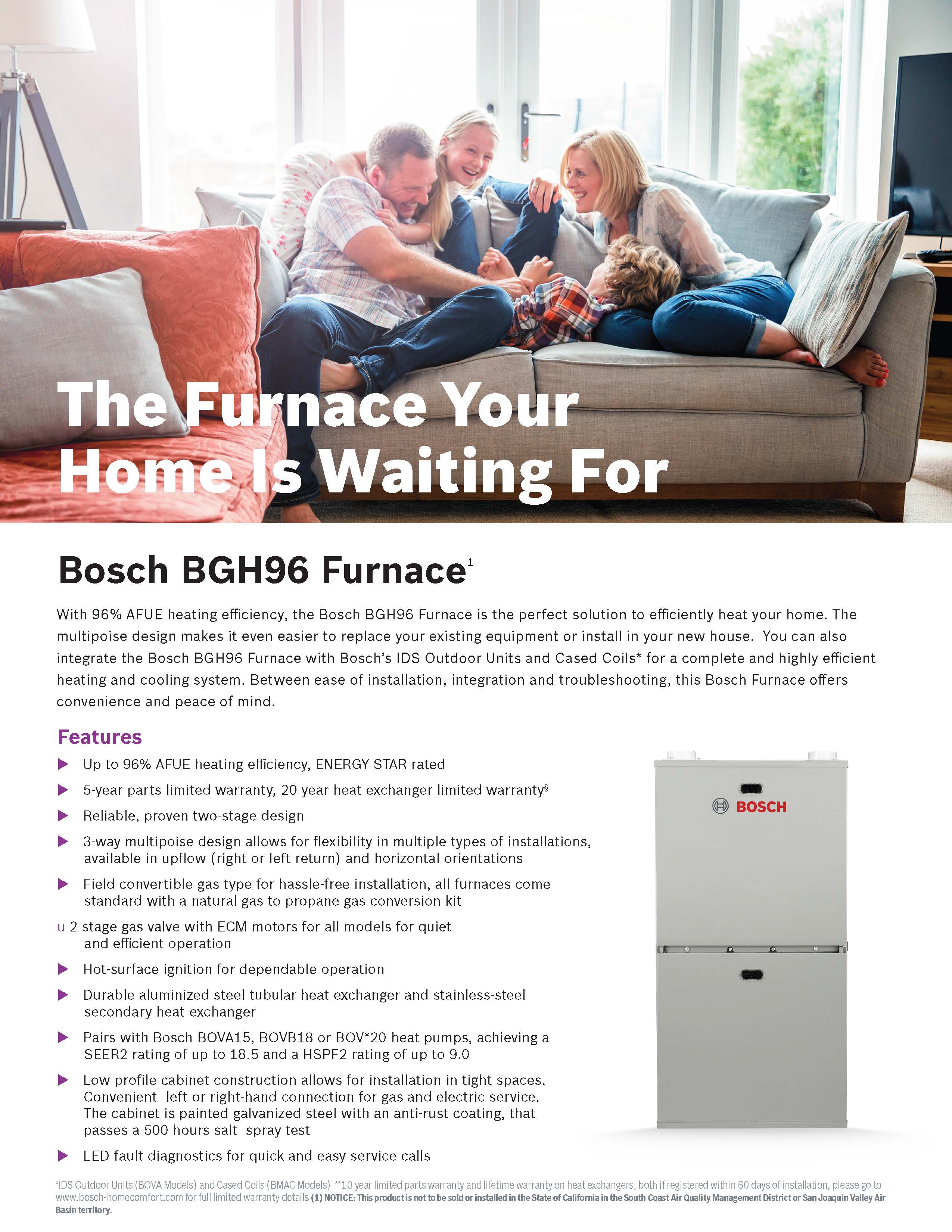

BOSCH BGH96M100C5B R410A 96% Two Stage 100K BTU Gas Furnace

Product Description

The Bosch BGH96M100C5B is a high-efficiency gas furnace with a 96% Annual Fuel Utilization Efficiency (AFUE). This unit features a two-stage gas valve and ECM motors for optimal performance. It is designed with a three-way multipositional setup, allowing for flexible installation in both upflow and horizontal applications. Additionally, the model includes a kit for converting from natural gas to propane.

• Up to 96% AFUE heating efficiency, ENERGY STAR rated
• 5-year parts limited warranty, 20-year heat exchanger limited warranty
• Reliable, proven two-stage design

Product Highlights

This furnace provides efficient heating for various spaces, ensuring comfort while reducing energy costs.

Product Information

Standard Information

• Product Type: Furnace
• Fuel Type: Natural Gas, Propane Gas

Technical Specifications

• AHRI Certificate: Yes
• Operating Mode: Gas
• AFUE %: 96
• BTUs: 100,000
• Airflow Direction: Upflow/Horizontal
• Cabinet Width: 21 inches
• Capacity (Btuk): 100
• Efficiency (%): 96
• Stage: Two
• Width (In): 21
• Furnace is ENERGY STAR Certified in: All
• Markets: United States, Canada
• CFM Rating: 750 to 1150 cfm
• Cabinet Dimensions: 33-3/4 in H x 21 in W x 28-3/4 in D
• Connection Size: 1/2 in
• Connection Type: NPT
• Frequency Rating: 60 Hz
• Ignition Type: Hot Surface
• Input BTU Rating: 100,000 Btu/hr
• Material: Steel
• Motor Type: Variable Speed ECM
• Number of Burners: 5
• Number of Stages: 2
• Phase: 1 ph
• Pressure Rating: 0.2 to 0.5 in-WC
• Series: BGH96 Series
• Temperature Rise: 35 to 65 deg F
• Vent Size: 2 to 3 in
• Vent, Ducted or Ductless: Vent
• Voltage Rating: 115 V
