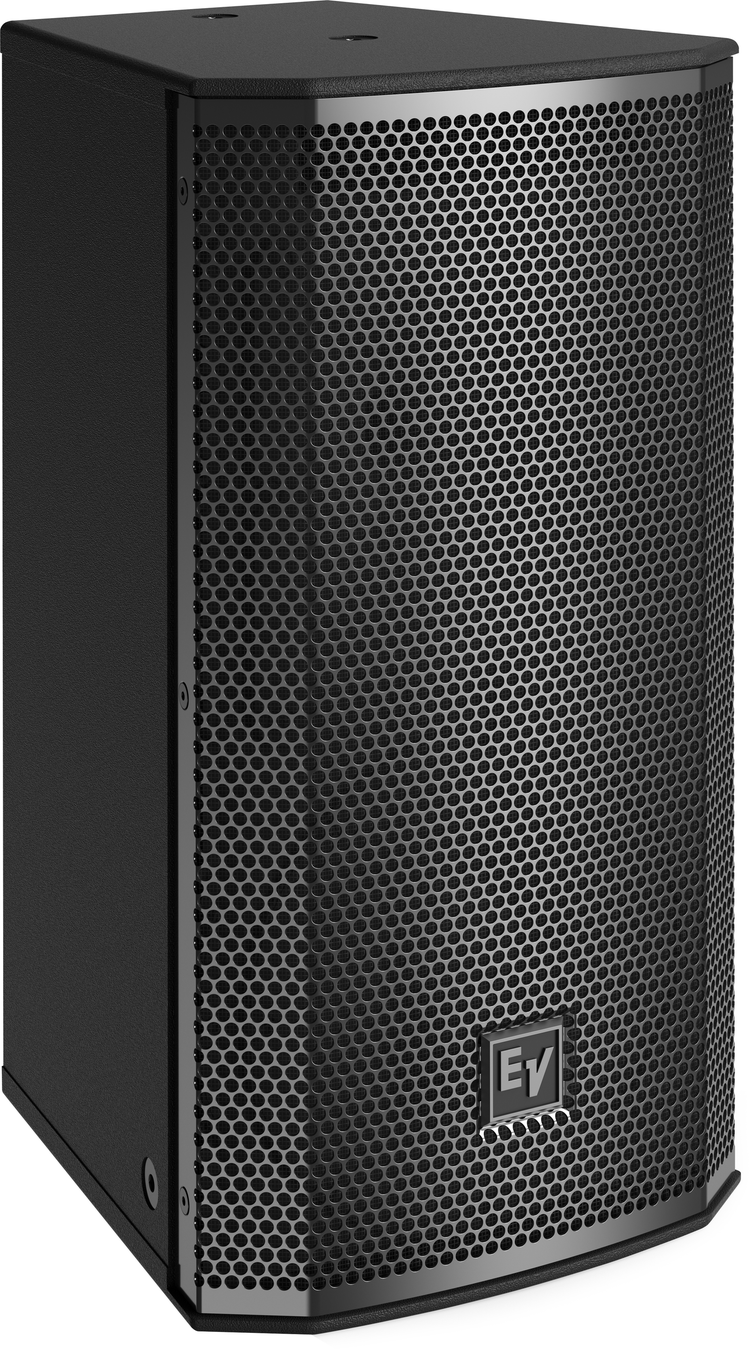

Bosch Audio EVC-1082-00B 200W 8 Inch Surface-mount Loudspeaker

Product Description

The BOSCH AUDIO EVC-1082-00B is a passive, two-way surface-mount loudspeaker designed for indoor commercial audio installations. It pairs an 8-inch EVS-2008 woofer with a 1.25-inch DH-2005 compression driver, delivering a frequency range of 55Hz to 25kHz at -10dB and a power rating of 200 watts into 8 ohms. The 100-degree horizontal and vertical coverage angles make it well suited for environments where consistent, wide-dispersion sound distribution is required. Licensed audio contractors and commercial AV installers are the primary trades handling this product.

This loudspeaker is intended for indoor applications where compact enclosure size, controlled directivity, and high efficiency are priorities. Typical deployment scenarios include houses of worship, retail spaces, conference rooms, and auditoriums that require intelligible speech and music reproduction without the footprint of a large cabinet. The 15-mm plywood enclosure with EVCoat finish provides durability in demanding commercial environments. It ships as a single unit and supports both wall-mount and floor-mount installation configurations.

Key Features

• Two-way passive design with 8-inch EVS-2008 woofer and 1.25-inch DH-2005 compression driver
• 200W power handling at 8 ohms impedance
• Symmetric 100-degree by 100-degree coverage pattern for consistent dispersion
• Wide frequency response from 55Hz to 25kHz (-10dB)
• 120dB maximum peak SPL for high-output installations
• 15-mm plywood enclosure with EVCoat finish for commercial durability
• Supports wall-mount and floor-mount configurations

Compatibility

Designed as an OEM-style surface-mount loudspeaker for indoor commercial sound reinforcement systems requiring two-way passive speaker components.

Installation Notes

Installation should be performed by a qualified audio contractor or licensed low-voltage technician familiar with commercial sound reinforcement systems. Power down and de-energize the amplifier or signal chain before making speaker connections. Verify that the amplifier output impedance and power rating are appropriate for this 8-ohm, 200W speaker before commissioning. Follow applicable local building codes and manufacturer mounting hardware guidelines when securing the enclosure to walls or rigging structures.
