Bosch 8733980525 Mini Split Multi Zone Kit 18000 Btu/h

Brand: BOSCH
SKU: 8733980525
Availability: Out Of Stock
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E
$5,274.17
$5,274.17
LTL Delivery

This product weighs 213 lb each and will be shipped via LTL carrier. A lift gate option will be added free of charge for your convenience.

HAVE A QUESTION?

Our team is ready to help!

  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Product Description

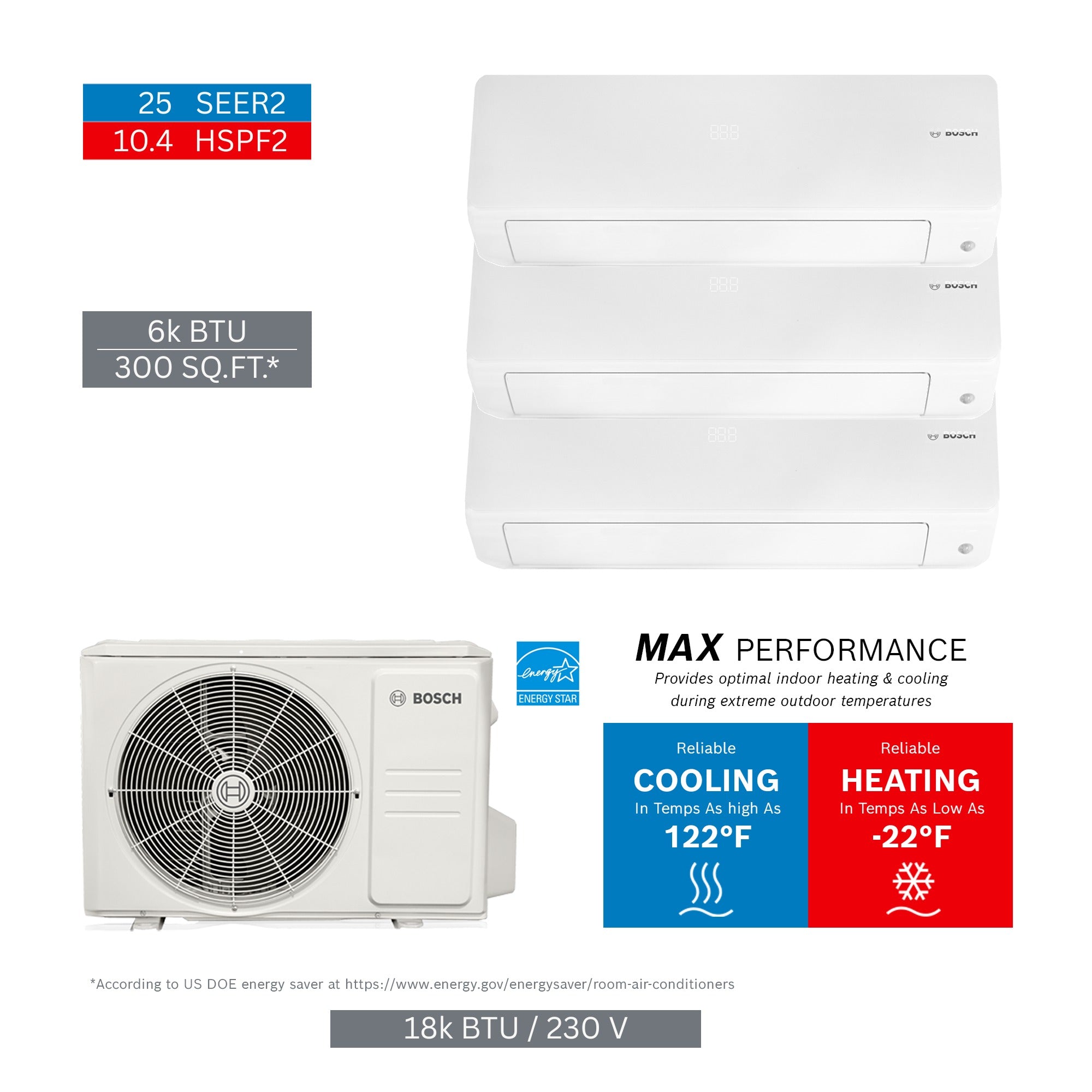

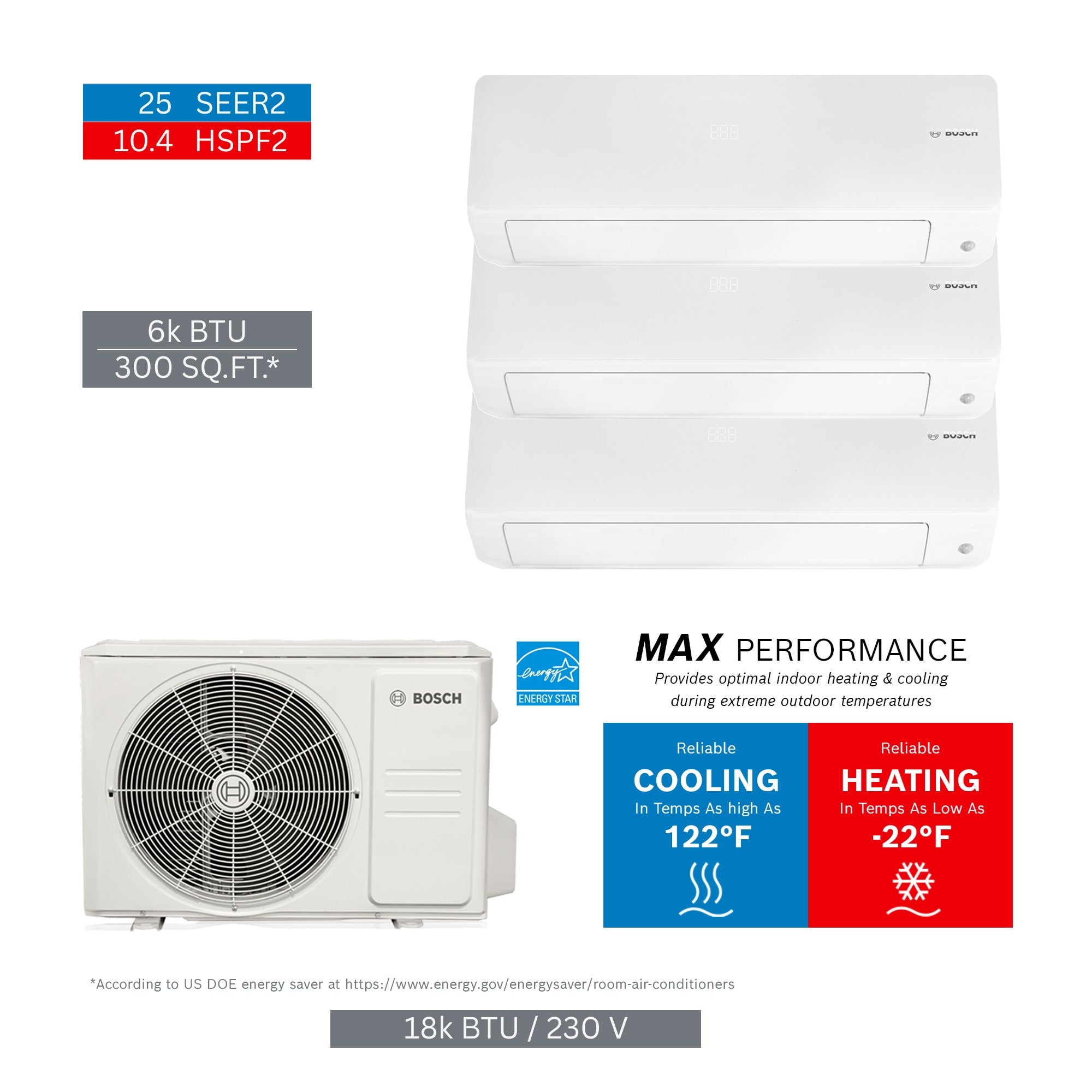

The BOSCH 8733980525 is an 18000 BTU/h multi-zone ductless mini split kit designed for residential and light commercial comfort applications. The kit bundles three 6000 BTU/h indoor units (IDU model 8733962676) with one outdoor unit (ODU model 8733962699), providing a complete system package ready for installation. It is installed by licensed HVAC technicians in applications where multiple zones require independent temperature control from a single outdoor condensing unit. With a net weight of 160.72 pounds, the kit ships as a coordinated assembly of matched components.

This kit is suited for multi-room residential installations or small commercial spaces where ductless zoning is preferred over ducted systems. The three-zone configuration allows simultaneous independent operation in up to three separate spaces served by the single outdoor unit. The absence of a line set in this kit means line sets must be sourced and sized separately for each zone run based on field conditions.

Key Features

  • Complete 3-zone kit includes three indoor units and one outdoor unit
  • 18000 BTU/h total system capacity across three zones
  • Each indoor unit rated at 6000 BTU/h for precise room-level comfort
  • Matched ODU and IDU components for verified system compatibility
  • Does not include line sets — field-supplied line sets required for each zone

Compatibility

This kit pairs indoor unit 8733962676 (quantity 3) with outdoor unit 8733962699 (quantity 1) as a factory-matched multi-zone assembly. No additional compatible model information was provided in the product data.

Installation Notes

Installation must be performed by an EPA 608-certified HVAC technician in accordance with local mechanical codes and the manufacturer installation instructions. Disconnect and lock out all power to the system before handling any electrical connections or mounting components. Line sets are not included and must be field-supplied, sized, and routed for each of the three indoor unit connections. Verify that the mounting structure for the outdoor unit can support the gross system weight prior to rigging.

Technical Specifications

  • System Capacity: 18000 BTU/h
  • Number of Zones: 3
  • Indoor Unit Capacity (each): 6000 BTU/h
  • Indoor Unit Model: 8733962676 (quantity 3)
  • Outdoor Unit Model: 8733962699 (quantity 1)
  • Kit Net Weight: 160.72 pounds
  • Kit Gross Weight: 213.13 pounds
  • Line Sets Included: No

Standard Information

  • Brand: BOSCH
  • Manufacturer Part Number: 8733980525
