Bosch 8733980524 Mini Split Multi-zone Kit 18000 Btu/h

Product Description

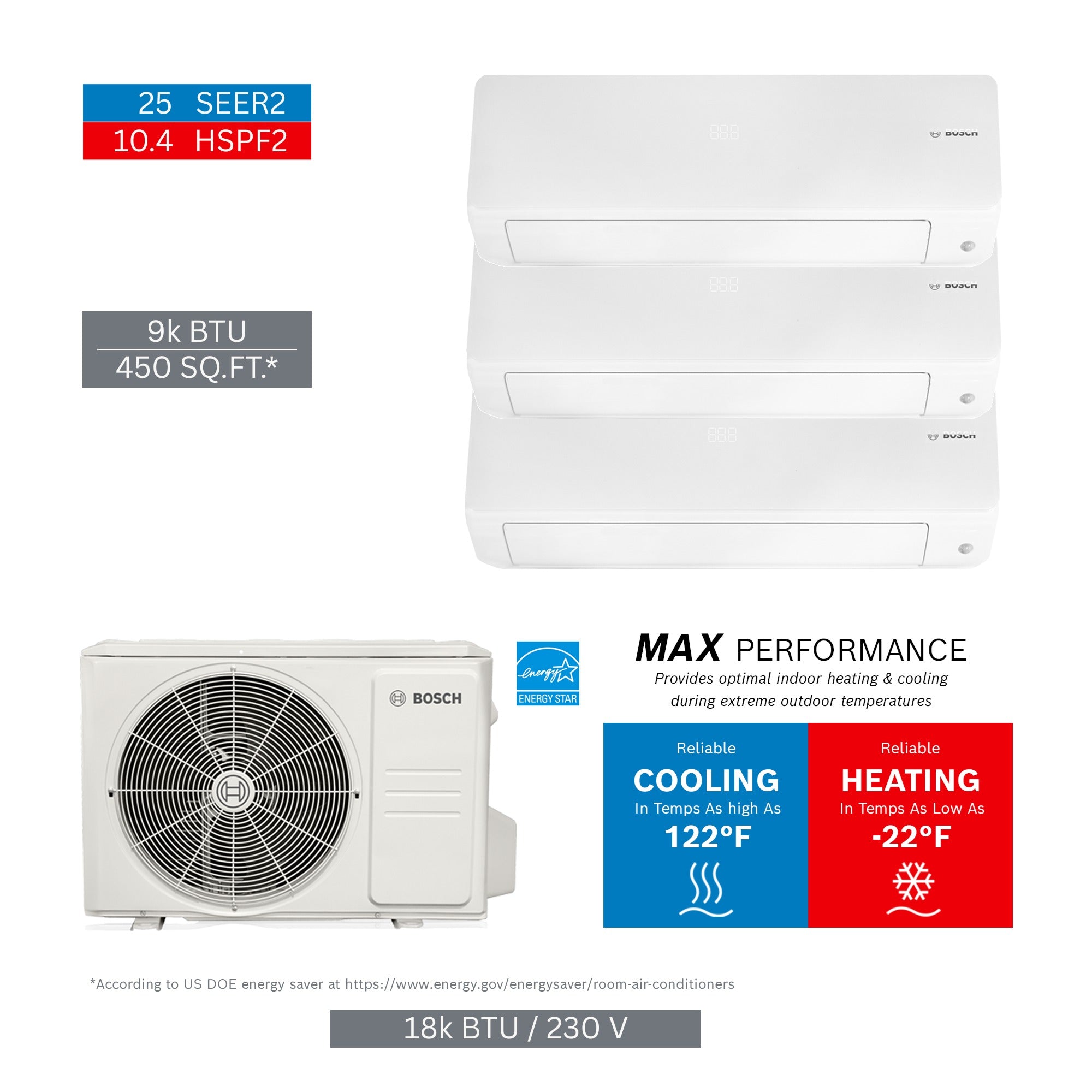

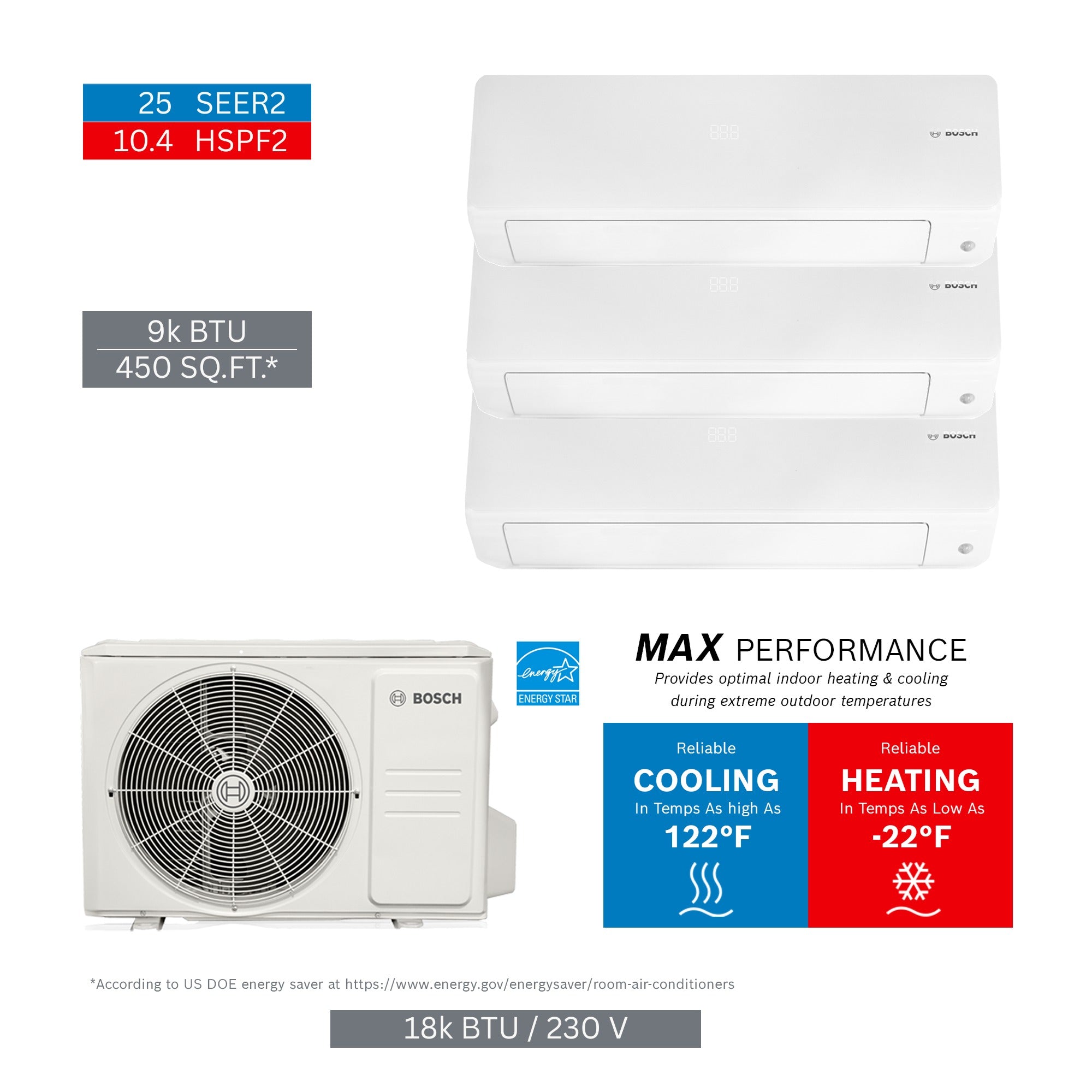

The BOSCH 8733980524 is a multi-zone mini split kit designed for ductless heating and cooling across three indoor zones from a single outdoor unit. The kit supports a maximum system capacity of 18000 BTU/h and includes three 9000 BTU/h indoor units paired with one matched outdoor unit. This configuration is suited for residential or light commercial applications where independent temperature control across multiple rooms or spaces is required. Licensed HVAC technicians handle installation, including refrigerant line sets, electrical connections, and system commissioning.

This kit is configured for three-zone operation and is intended for new installations or full system replacements where all air handling and condensing components are sourced together. The three indoor units included are each rated at 9000 BTU/h, allowing balanced load distribution across zones. Note that line sets are not included with this kit and must be sourced separately based on the specific installation layout and distance requirements.

Key Features

• Maximum system capacity of 18000 BTU/h across three zones
• Includes three 9000 BTU/h indoor units (component IDU 8733962672 x3)
• Includes one outdoor unit (component ODU 8733962699 x1)
• Three-zone independent temperature control from a single outdoor unit
• Line sets not included, allowing flexibility for site-specific installation

Compatibility

This kit includes indoor unit 8733962672 (quantity 3) and outdoor unit 8733962699 (quantity 1) as factory-matched components. No additional compatible model information was provided in the product data.

Installation Notes

Installation must be performed by a licensed HVAC technician certified to handle refrigerants under applicable EPA Section 608 regulations. Power to all circuits must be shut off at the breaker before any wiring work begins. Refrigerant line sets are not included and must be sized and installed per the manufacturer guidelines and local mechanical codes. System startup and refrigerant charging must be completed by a qualified technician using calibrated service equipment.

Technical Specifications

• System Capacity: 18000 BTU/h maximum
• Number of Zones: 3
• Indoor Unit Capacity (each): 9000 BTU/h
• Indoor Units Included: 3
• Outdoor Units Included: 1
• Kit Net Weight: 160.72 pounds
• Kit Gross Weight: 213.13 pounds
• Line Sets Included: No

Standard Information

• Brand: BOSCH
• Manufacturer Part Number: 8733980524
