Bosch 8733980512 Mini Split 27000 Btu 3 Zone System

Product Description

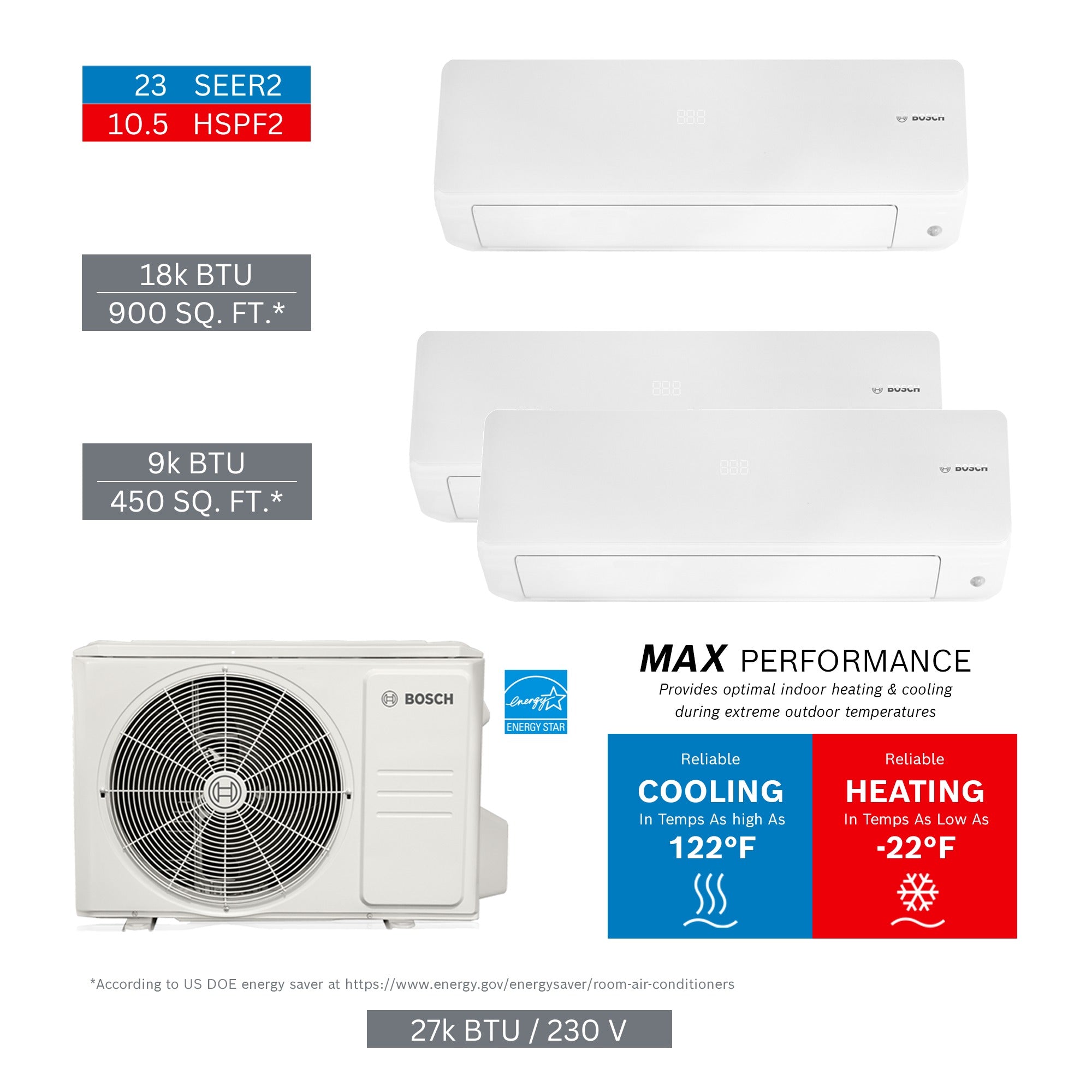

The BOSCH 8733980512 is a multi-zone ductless mini split system rated at 27000 BTU/h total cooling and heating capacity across three indoor zones. This kit includes two 9000 BTU/h indoor units and one 18000 BTU/h indoor unit paired with a single outdoor condensing unit, allowing independent temperature control in up to three separate spaces from one outdoor installation. The system ships without a line set, so line sets must be sourced separately to match the actual installation distances. Licensed HVAC technicians install this equipment in residential and light commercial applications.

This multi-zone system is suited for residential homes, condos, apartments, and light commercial spaces where ductwork is impractical or unavailable. The three-zone configuration supports mixed room sizes — pairing the two smaller 9000 BTU/h heads for bedrooms or offices with the larger 18000 BTU/h head for a living area or open space. The absence of an included line set makes it adaptable to installations where run lengths vary by job.

Key Features

• 27000 BTU/h total system capacity across three independently controlled zones
• Includes two 9000 BTU/h indoor units (IDU 8733962672) and one 18000 BTU/h indoor unit (IDU 8733962674)
• Single outdoor unit (ODU 8733962700) serves all three zones, reducing rooftop or ground-level equipment footprint
• No line set included — allows field selection of line set lengths to match actual installation conditions
• Ductless design eliminates duct losses and supports zone-by-zone comfort control

Compatibility

This kit is designed as a matched multi-zone ductless system. Component part numbers included in this kit are indoor units 8733962672 (quantity 2) and 8733962674 (quantity 1), and outdoor unit 8733962700 (quantity 1). No additional compatible model numbers were specified in the product data.

Installation Notes

Installation must be performed by a licensed HVAC technician holding EPA Section 608 certification, as this system involves refrigerant handling. Disconnect all power at the breaker before making any electrical connections to indoor or outdoor units. Line sets, electrical whips, and disconnect boxes are not included and must be sized according to the equipment specifications and applicable local codes. Follow the manufacturer installation manual for refrigerant line sizing, flaring procedures, and nitrogen pressure testing before charging.

Technical Specifications

• Total System Capacity: 27000 BTU/h
• Number of Zones: 3
• Zone 1 Indoor Unit Capacity: 9000 BTU/h (quantity 2, IDU 8733962672)
• Zone 2 Indoor Unit Capacity: 18000 BTU/h (quantity 1, IDU 8733962674)
• Outdoor Unit Part Number: 8733962700
• Kit Net Weight: 219.14 pounds
• Kit Gross Weight: 281.25 pounds
• UPC: 52575024127
• Line Set: Not included

Standard Information

• Brand: BOSCH
• Manufacturer Part Number: 8733980512
