Bosch 8733980504 27000 Btu 2-zone Mini-split Kit

Product Description

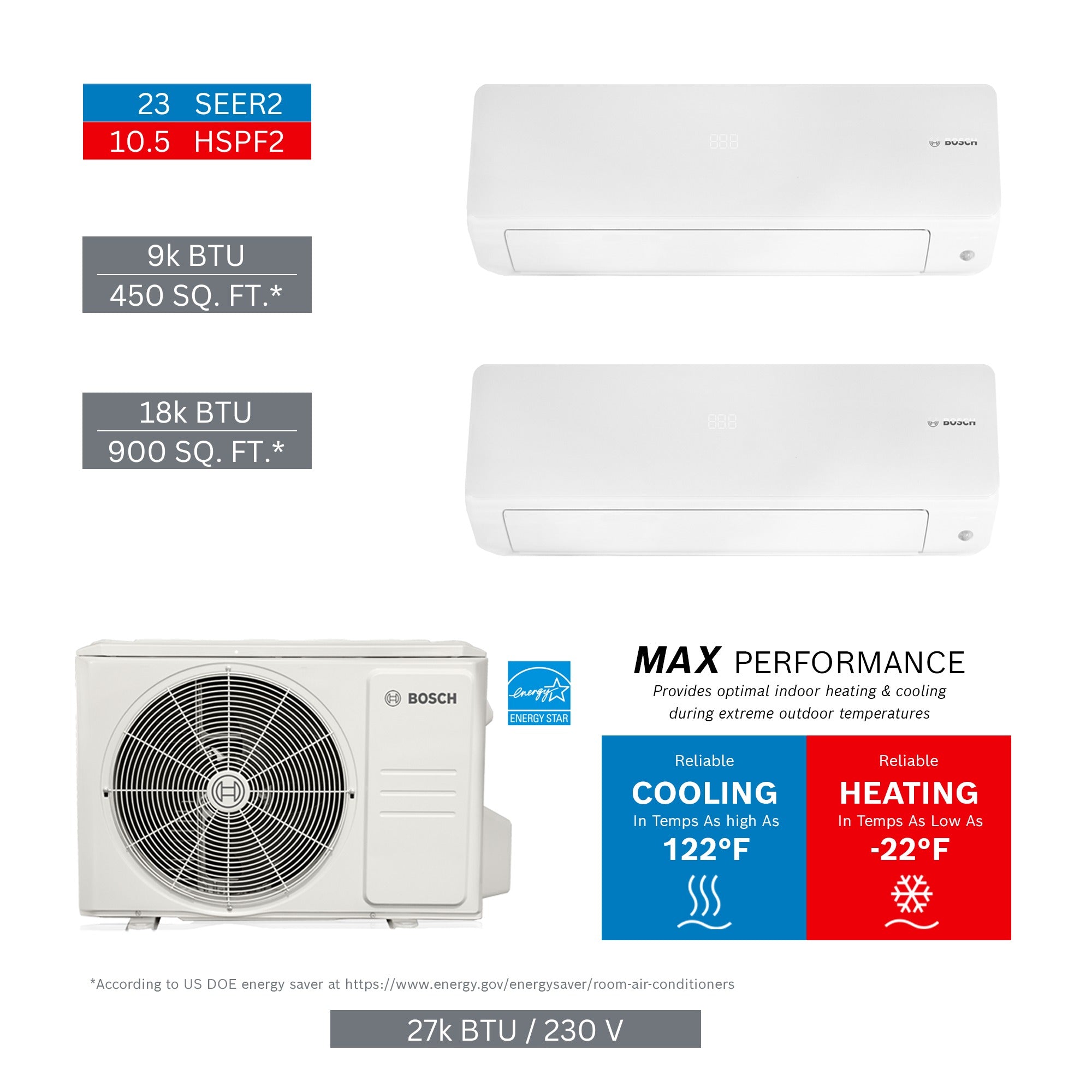

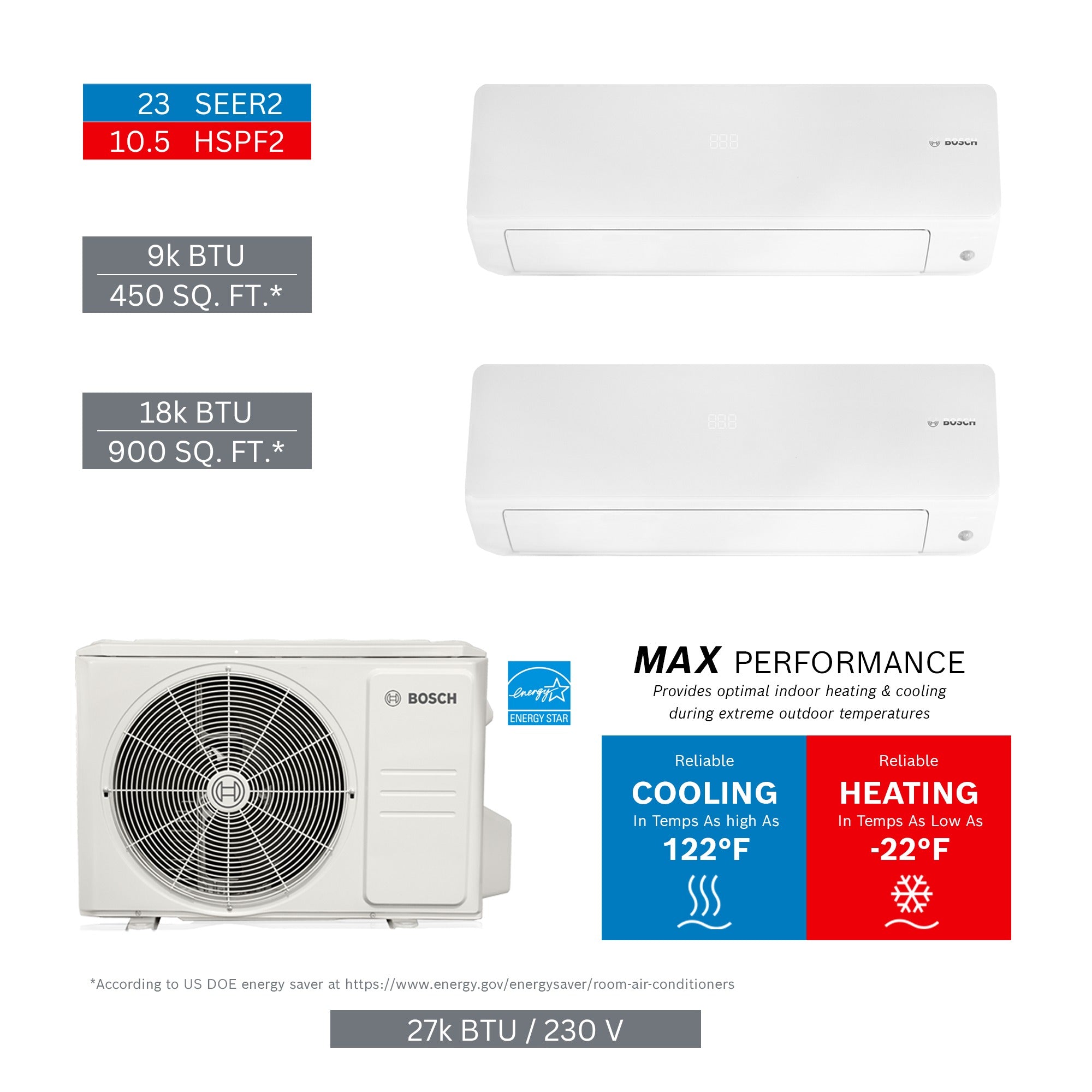

The BOSCH 8733980504 is a multi-zone ductless mini-split kit rated at 27000 BTU/h total cooling and heating capacity. The kit includes one 9000 BTU/h indoor unit, one 18000 BTU/h indoor unit, and one outdoor condensing unit, providing a complete two-zone climate control solution. Licensed HVAC technicians install this system in residential and light commercial applications where independent zone control is required without ductwork. The kit ships as a matched component set, ensuring factory-verified refrigerant circuit compatibility across all three units.

This two-zone mini-split kit is suited for residential installations where separate rooms or areas require independent temperature control. Typical applications include additions, conditioned spaces without existing ductwork, and multi-room retrofits. The 9000 BTU/h indoor unit addresses smaller spaces such as bedrooms or offices, while the 18000 BTU/h indoor unit handles larger living areas. All three components are matched at the factory as part of the MAX series multi-zone platform.

Key Features

• 27000 BTU/h total system capacity across two zones
• Includes 9000 BTU/h indoor unit (part 8733962672) and 18000 BTU/h indoor unit (part 8733962674)
• Includes outdoor condensing unit (part 8733962700)
• Factory-matched components for verified multi-zone refrigerant circuit compatibility
• Ductless design supports installation in spaces without existing ductwork
• Kit format simplifies procurement by bundling all required air-side components

Compatibility

This kit is a factory-assembled multi-zone set within the BOSCH MAX series platform. Component part numbers included are IDU 8733962672 (9000 BTU/h), IDU 8733962674 (18000 BTU/h), and ODU 8733962700. No line set is included with this kit.

Installation Notes

Installation must be performed by a licensed HVAC technician holding an EPA Section 608 certification for refrigerant handling. Power to all circuits must be disconnected and locked out before any wiring or refrigerant line connections are made. Line sets, electrical whips, and disconnect boxes are not included and must be sourced separately to complete the installation. Follow local mechanical and electrical codes, including NEC requirements for dedicated disconnect means and minimum circuit ampacity for each unit.

Technical Specifications

• Total System Capacity: 27000 BTU/h
• Number of Zones: 2
• Zone 1 Indoor Unit Capacity: 9000 BTU/h
• Zone 2 Indoor Unit Capacity: 18000 BTU/h
• Indoor Unit 1 Part Number: 8733962672
• Indoor Unit 2 Part Number: 8733962674
• Outdoor Unit Part Number: 8733962700
• Kit Net Weight: 219.14 pounds
• Kit Gross Weight: 281.25 pounds
• UPC: 52575024042

Standard Information

• Brand: BOSCH
• Manufacturer Part Number: 8733980504
