Bosch 8733980500 36K Btu 2-zone Mini Split System Kit

Product Description

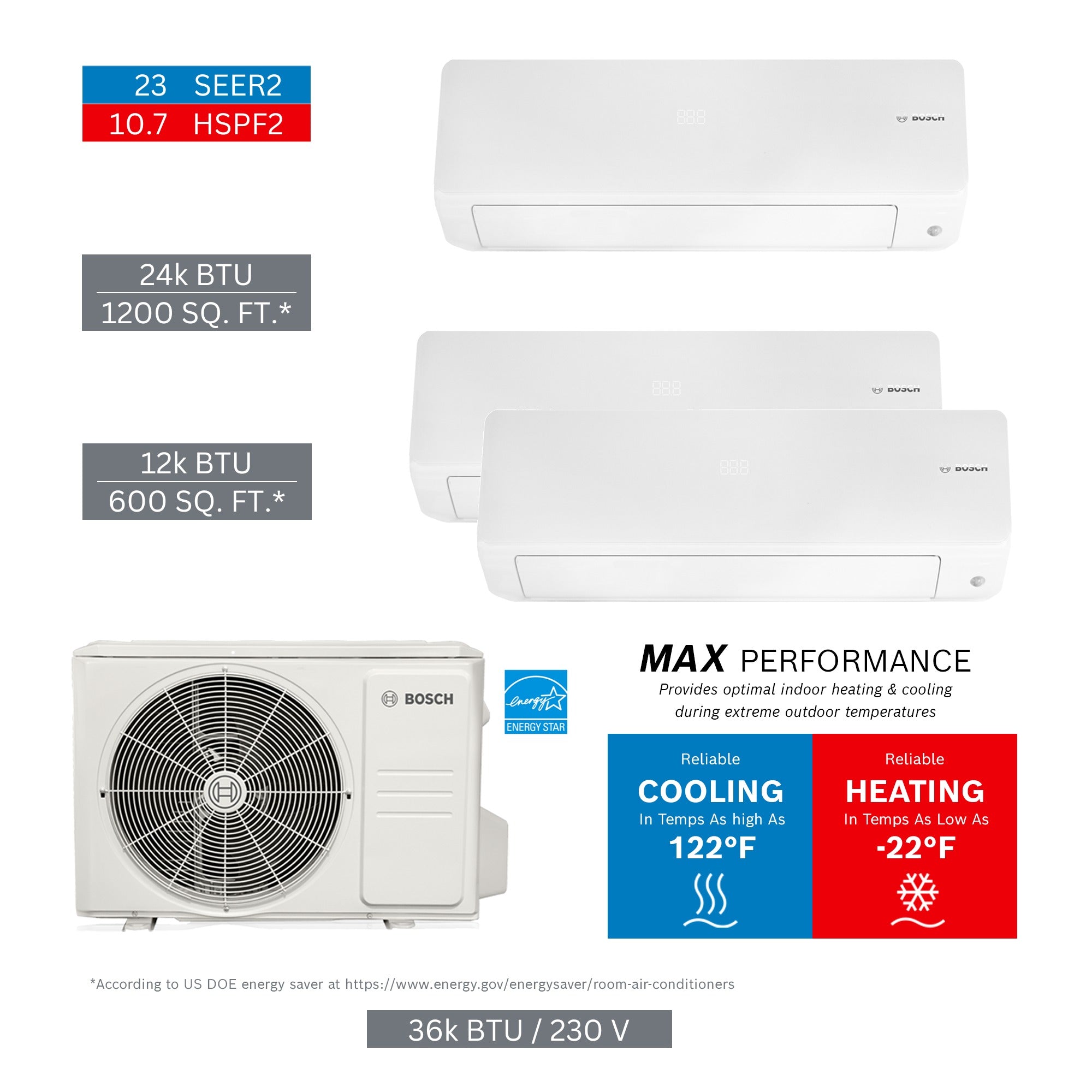

The BOSCH 8733980500 is a multi-zone mini split system kit designed for residential and light commercial heating and cooling applications. This 36000 BTU capacity kit covers two zones, pairing one 24000 BTU indoor unit with two 12000 BTU indoor units through a single outdoor condensing unit. The package ships with all three indoor air handlers and the matched outdoor unit, giving installers a complete solution from a single order. Net weight of the kit is 278.44 pounds, with a gross shipping weight of 364.59 pounds. This system is installed by licensed HVAC technicians qualified to work on multi-zone ductless equipment.

This kit is suited for multi-room or multi-area installations where independent zone control is required. Typical applications include residential additions, open floor plans with distinct thermal zones, small commercial offices, and retrofit installations where running ductwork is not practical. The two-zone configuration allows each area to be conditioned independently, improving comfort and energy management across different spaces within the same structure.

Key Features

• 36000 BTU total system capacity across two zones
• Includes one 24000 BTU indoor unit (IDU#1, part 8733962675) and two 12000 BTU indoor units (IDU#2, part 8733962673)
• Matched outdoor condensing unit included (ODU, part 8733962701)
• Complete kit ships as a single package for streamlined procurement
• Independent zone control supports varied comfort needs across different rooms or areas

Compatibility

This kit is configured as a matched multi-zone system. Component indoor units are BOSCH part 8733962675 (24000 BTU, quantity 1) and BOSCH part 8733962673 (12000 BTU, quantity 2), paired with outdoor unit BOSCH part 8733962701. All components are factory-matched for use within this kit.

Installation Notes

Installation must be performed by a licensed HVAC technician with EPA Section 608 certification for refrigerant handling. Disconnect all power to the system before making any electrical or refrigerant connections. Follow local mechanical and electrical codes, including applicable sections of the NEC, when routing line sets, drain lines, and low-voltage wiring. Do not mix components from different system configurations, as matched multi-zone systems require factory-paired indoor and outdoor units to operate correctly.

Technical Specifications

• Total System Capacity: 36000 BTU/h
• Number of Zones: 2
• Zone 1 Indoor Unit Capacity: 24000 BTU/h
• Zone 2 Indoor Unit Capacity: 12000 BTU/h
• Kit Net Weight: 278.44 pounds
• Kit Gross Weight: 364.59 pounds
• UPC: 52575024004
• IDU#1 Part Number: 8733962675 (quantity 1)
• IDU#2 Part Number: 8733962673 (quantity 2)
• ODU Part Number: 8733962701 (quantity 1)

Standard Information

• Brand: BOSCH
• Manufacturer Part Number: 8733980500
