Bosch 8733980498 Mini Split Kit 36000 Btu 2 Zone

Product Description

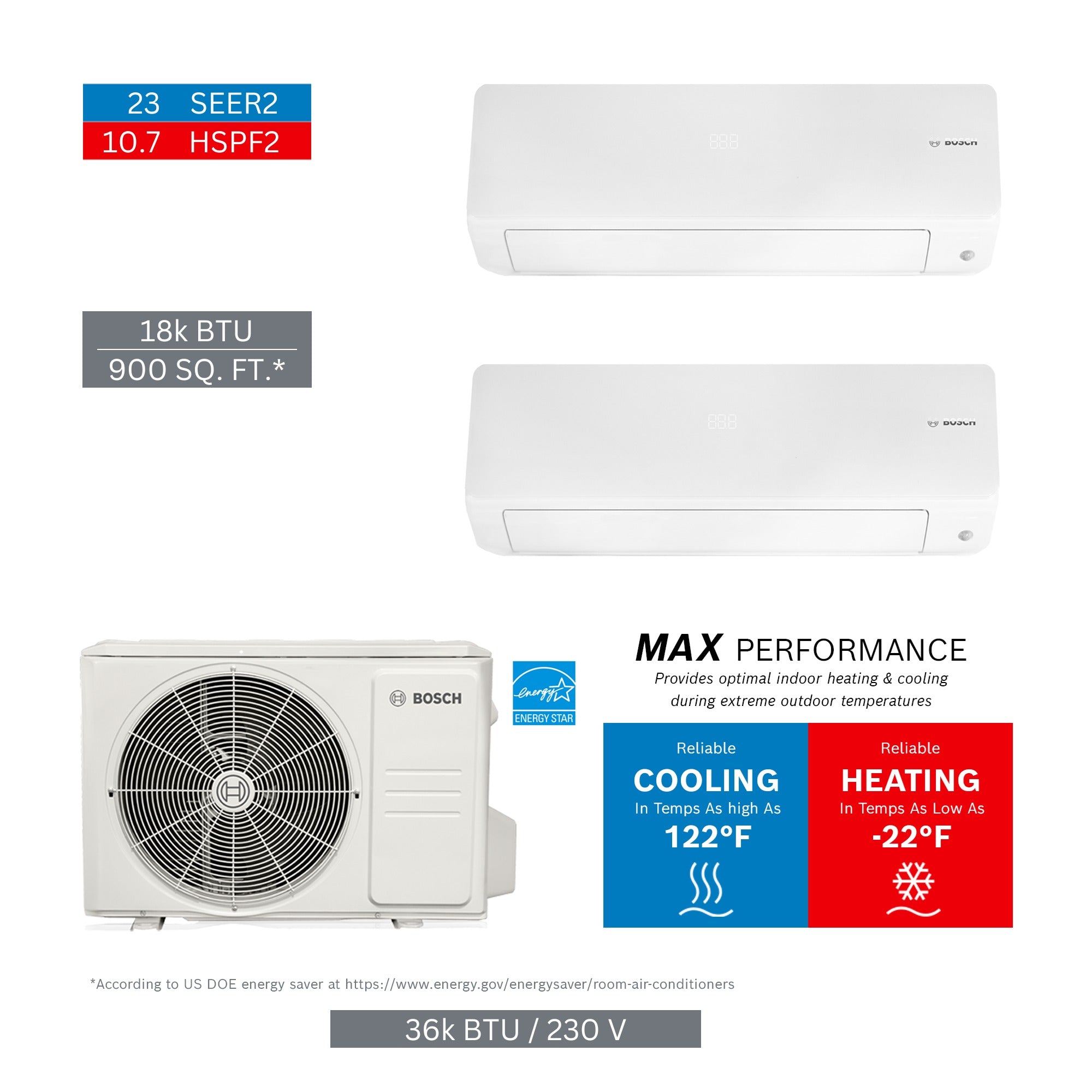

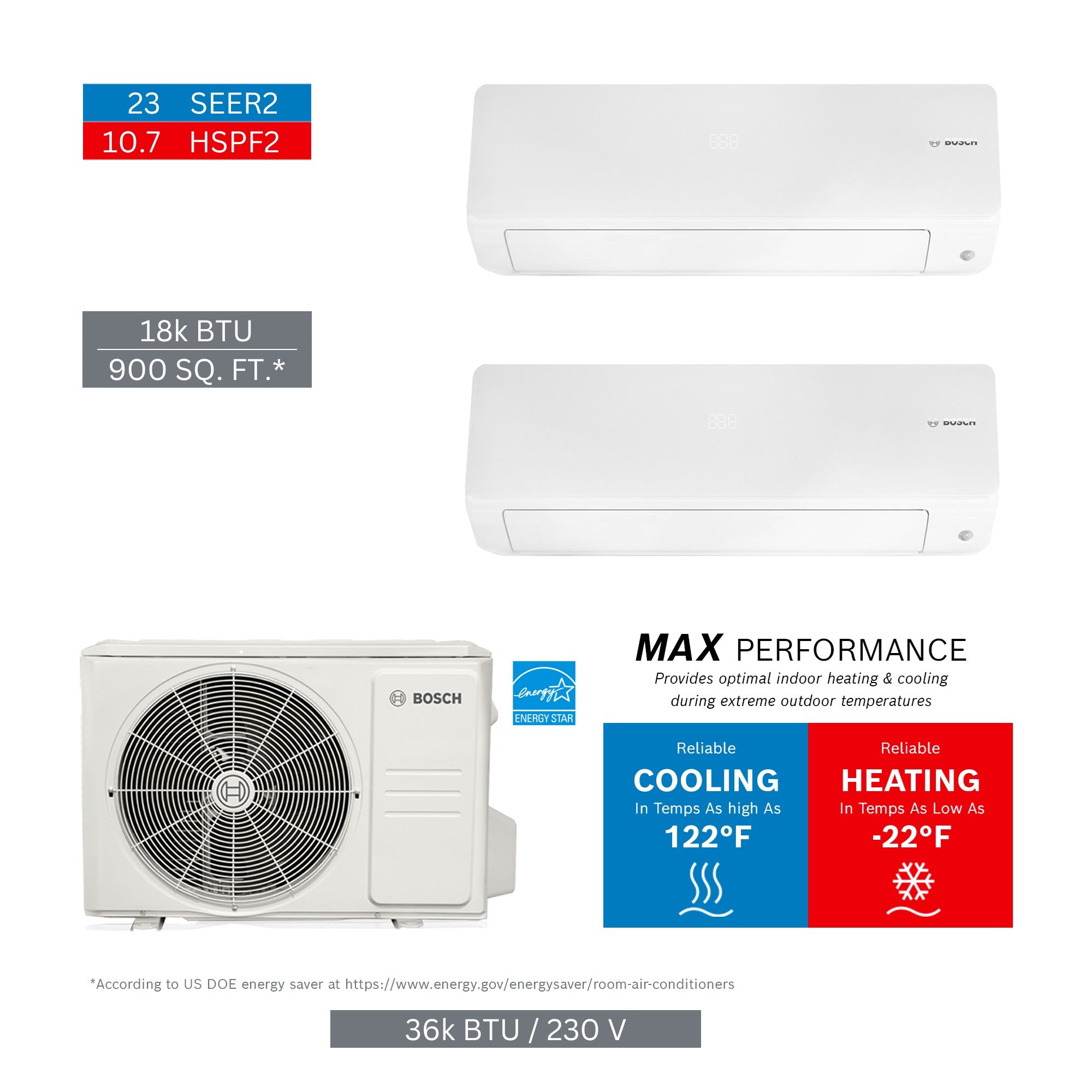

The BOSCH 8733980498 is a 2-zone ductless mini split kit rated at 36,000 BTU/h total cooling and heating capacity. The kit pairs one outdoor condensing unit with two 18,000 BTU/h indoor air handlers, providing independent zone control across two spaces from a single outdoor unit. HVAC technicians install this system in residential and light commercial applications where ductwork is impractical or where zoned comfort control is required. The kit ships as a matched set, reducing sourcing time and ensuring component compatibility straight from the factory.

This kit is suited for two-room or two-zone installations such as dual bedrooms, a living room and master suite combination, or separate areas in a light commercial space. Each of the two indoor units handles up to 18,000 BTU/h, allowing independent temperature management per zone. The system is designed for wall-mounted indoor unit installation with line set connections between the indoor and outdoor components. No line sets are included with this kit.

Key Features

• 36,000 BTU/h total system capacity across two zones
• Two 18,000 BTU/h indoor air handlers included for matched zoning
• Single outdoor unit serves both zones, minimizing rooftop or pad footprint
• Factory-matched components reduce field selection errors
• No line sets included, allowing the installing technician to size runs to the specific job

Compatibility

Kit includes indoor units 8733962674 (quantity 2) and outdoor unit 8733962701 (quantity 1). These components are factory-matched and intended to operate as a set. Consult BOSCH documentation for approved line set lengths and refrigerant specifications before installation.

Installation Notes

Installation must be performed by a licensed HVAC technician holding an EPA Section 608 refrigerant handling certification. Disconnect and lock out all electrical power before connecting or servicing any system components. Follow local mechanical and electrical codes, including applicable sections of the IMC and NEC, for line set routing, electrical disconnect sizing, and condensate drainage. Do not mix components from different kit configurations or substitute non-matched indoor or outdoor units without verifying system compatibility with BOSCH engineering documentation.

Technical Specifications

• Total System Capacity: 36,000 BTU/h
• Number of Zones: 2
• Indoor Unit Capacity (each): 18,000 BTU/h
• Indoor Unit Part Number: 8733962674 (quantity 2)
• Outdoor Unit Part Number: 8733962701 (quantity 1)
• Kit Net Weight: 239.2 pounds
• Kit Gross Weight: 316.31 pounds
• UPC: 52575023984

Standard Information

• Brand: BOSCH
• Manufacturer Part Number: 8733980498
