Bosch 8733980497 36000 Btu/h 3-zone Mini-split Kit

Product Description

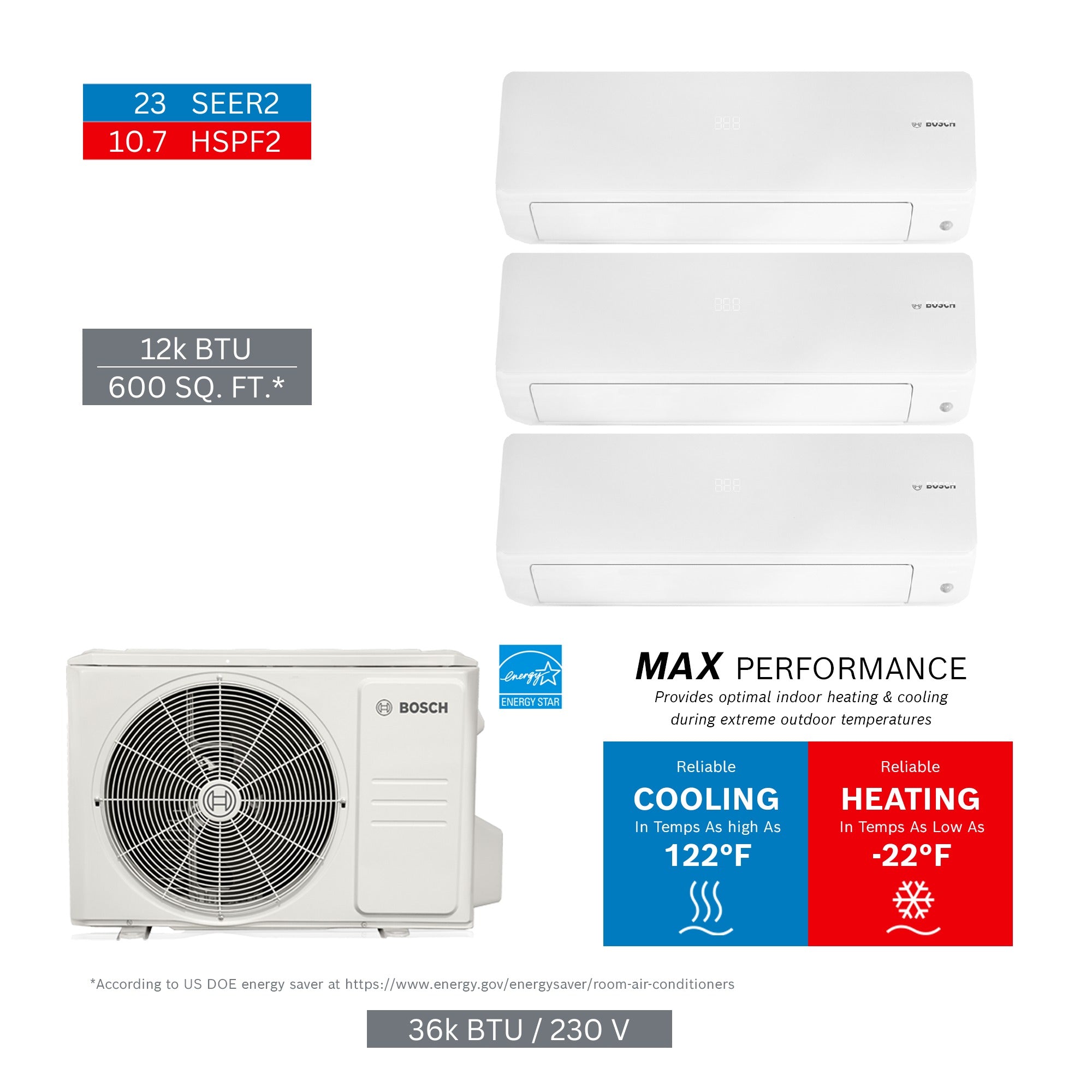

The BOSCH 8733980497 is a multi-zone ductless mini-split system kit rated at 36000 BTU/h, designed for three-zone simultaneous heating and cooling. The kit includes one outdoor condensing unit and three 12000 BTU/h indoor air handlers, providing balanced comfort across multiple rooms or spaces. This is a factory-assembled kit configuration, saving sourcing time when ordering components for a complete multi-zone install. Licensed HVAC technicians handle selection, refrigerant line set sizing, electrical connections, and startup. The kit net weight is 234.79 pounds, with a gross weight of 309.03 pounds for shipping and handling planning.

This kit is suited for residential and light commercial applications where a single outdoor unit must serve three independent zones. Typical installs include multi-room residential additions, conditioned garages paired with living spaces, or small commercial suites requiring individual zone control. Each indoor unit operates at 12000 BTU/h, allowing each zone to be controlled independently for occupant comfort and energy efficiency. No line sets are included with this kit configuration.

Key Features

• 36000 BTU/h total system capacity across three zones
• Includes three 12000 BTU/h indoor units (IDU 8733962673 x3)
• Includes one outdoor condensing unit (ODU 8733962701 x1)
• Three-zone independent temperature control from a single outdoor unit
• No line sets included — field-supplied refrigerant lines required
• Kit gross weight of 309.03 pounds supports freight planning

Compatibility

This kit contains indoor units 8733962673 (quantity 3) and outdoor unit 8733962701 (quantity 1) as factory-specified components. No additional compatibility information was provided in the product data.

Installation Notes

Installation must be performed by a licensed HVAC technician with EPA 608 certification for refrigerant handling. Disconnect and lock out all electrical power to the installation area before mounting indoor or outdoor units. Refrigerant line sets, electrical whips, and disconnect boxes are field-supplied and must be sized according to the equipment specifications and applicable NEC requirements. Do not commission the system without verifying refrigerant charge, line set length, and proper drainage for each indoor unit.

Technical Specifications

• System Capacity: 36000 BTU/h
• Number of Zones: 3
• Indoor Unit Capacity (each): 12000 BTU/h
• Indoor Unit MPN: 8733962673 (quantity 3)
• Outdoor Unit MPN: 8733962701 (quantity 1)
• Kit Net Weight: 234.79 pounds
• Kit Gross Weight: 309.03 pounds
• UPC: 52575023977

Standard Information

• Brand: BOSCH
• Manufacturer Part Number: 8733980497
