Bosch 8733980494 48K Btu 2-zone Mini Split System

Product Description

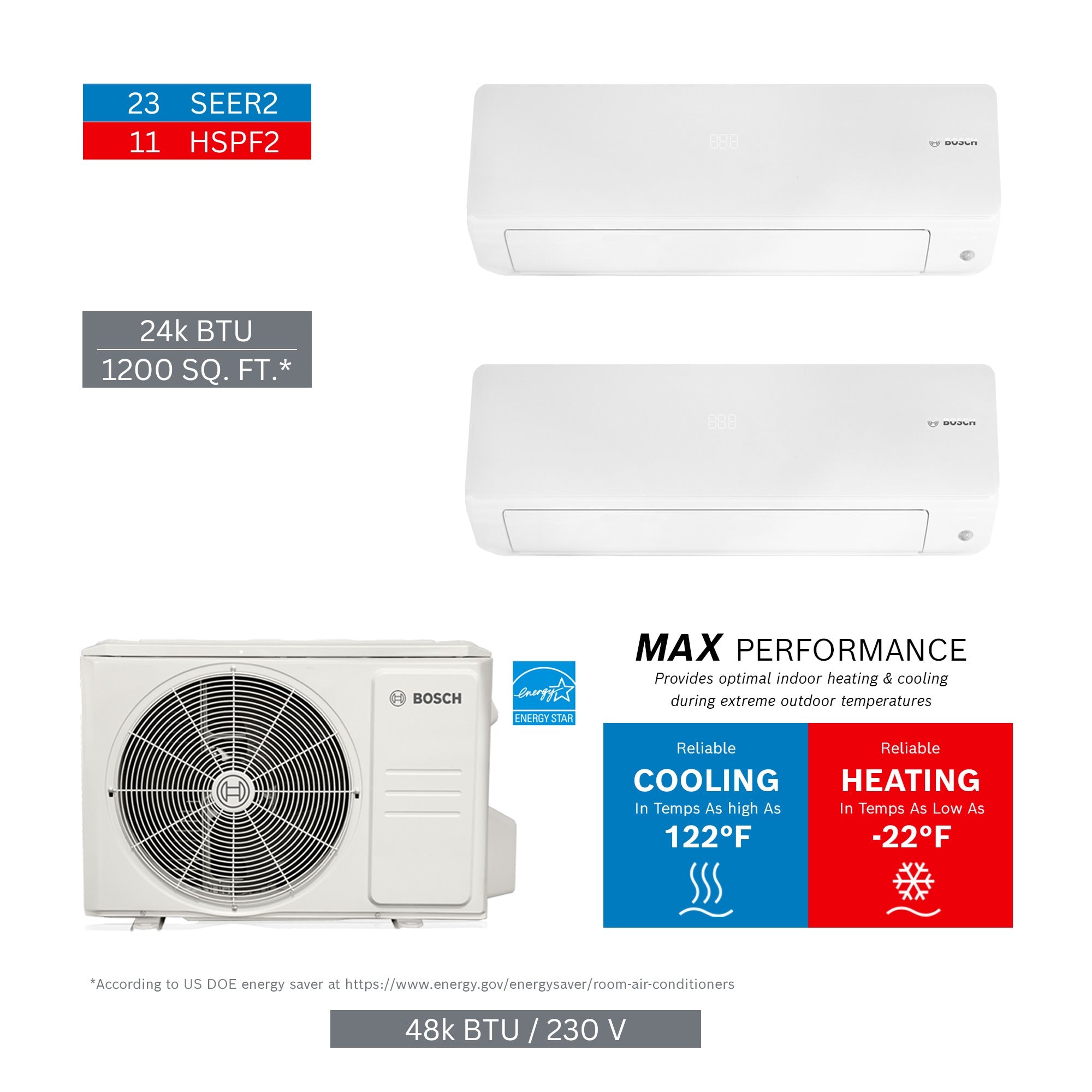

The BOSCH 8733980494 is a 2-zone ductless mini split system rated at 48000 BTU/h, designed for residential and light commercial heating and cooling applications. The kit includes two 24000 BTU indoor air handlers and one outdoor condensing unit, providing zoned climate control across two separate spaces from a single outdoor unit. This system targets licensed HVAC technicians handling multi-zone ductless installations where independent temperature control per zone is required. The kit ships as a matched assembly, pairing the outdoor unit with the two indoor units for verified compatibility right out of the box.

This system is suited for residential new construction, retrofits, or additions where running traditional ductwork is impractical. Typical applications include dual-zone setups in homes, small commercial spaces, server rooms, or multi-room residential builds. The two indoor units allow independent zone control, making this configuration practical for installations where occupancy or comfort requirements differ between spaces. Each indoor unit is rated at 24000 BTU/h, totaling the full 48000 BTU/h outdoor unit capacity. Component identifiers included in this kit are IDU 8733962675 (x2) and ODU 8733962702 (x1).

Key Features

• 48000 BTU/h total system capacity split across two zones
• Dual 24000 BTU/h indoor air handlers for balanced load distribution
• Matched kit assembly — outdoor unit and both indoor units ship together as a verified set
• Ductless configuration eliminates the need for existing duct infrastructure
• Independent zone control supports different temperature settings per space

Compatibility

This kit includes IDU 8733962675 (x2) and ODU 8733962702 (x1) as matched components. These units are factory-paired as part of the 8733980494 kit assembly. No additional line set accessories are included with this configuration.

Installation Notes

Installation should be performed by an EPA Section 608 certified HVAC technician familiar with ductless mini split systems. Shut off all power at the breaker before making any electrical connections. Refrigerant line sets, line set covers, and disconnect hardware are not included and must be sourced separately based on the specific installation layout. Follow all applicable local mechanical and electrical codes, including NEC requirements for disconnect and overcurrent protection at each unit.

Technical Specifications

• System Capacity: 48000 BTU/h
• Number of Zones: 2
• Indoor Unit Capacity (each): 24000 BTU/h
• Indoor Unit MPN: 8733962675 (quantity 2)
• Outdoor Unit MPN: 8733962702 (quantity 1)
• Kit Net Weight: 290.12 pounds
• Kit Gross Weight: 367.24 pounds
• UPC: 52575023946

Standard Information

• Brand: BOSCH
• Manufacturer Part Number: 8733980494
