Bosch 8733980488 Mini-split 27000 Btu 2-zone Kit

Product Description

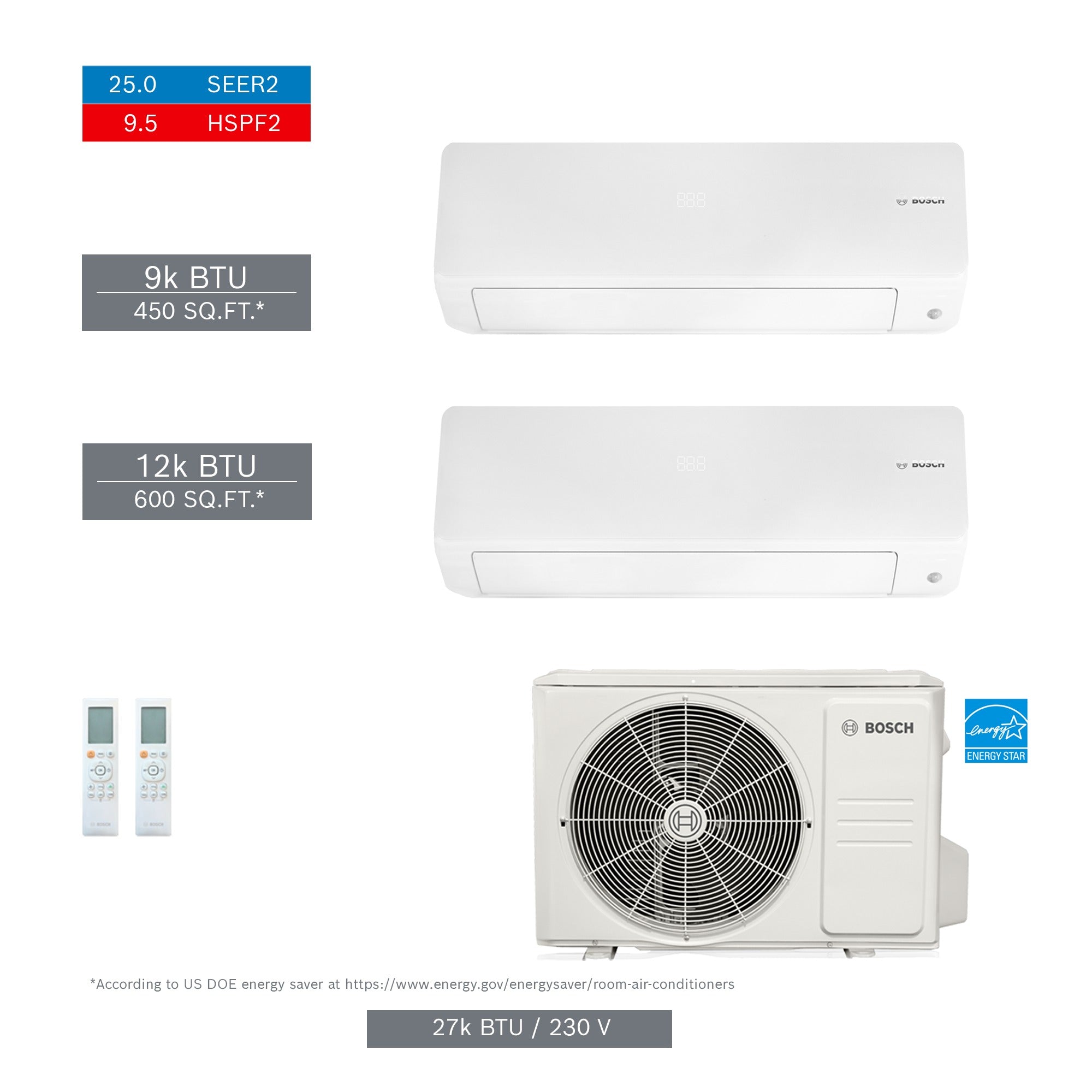

The BOSCH 8733980488 is a 2-zone mini-split system kit rated at 27000 BTU/h, designed for residential and light-commercial ductless HVAC installations. The kit includes two indoor air handler units and one outdoor condensing unit, giving installers everything needed to service two independent zones from a single outdoor unit. At 185.19 pounds net weight, this is a substantial multi-component kit suited for HVAC professionals managing multi-room comfort solutions. The system is part of the Generation 4 product line and does not include a line set.

This kit is engineered for 2-zone ductless applications where independent temperature control is required in separate rooms or areas. The included 9000 BTU/h indoor unit (part 8733962672) and 12000 BTU/h indoor unit (part 8733962673) cover two zones, while the outdoor unit (part 8733962696) handles the combined load. Typical applications include residential new construction, multi-room retrofits, and light-commercial spaces where running ductwork is impractical or cost-prohibitive.

Key Features

• 27000 BTU/h total system capacity across 2 independently controlled zones
• Includes one 9000 BTU/h indoor unit (8733962672) and one 12000 BTU/h indoor unit (8733962673)
• Includes one outdoor condensing unit (8733962696) sized for the combined zone load
• Generation 4 platform — no line set included, allowing installer-supplied line sets sized to the job
• Kit net weight 185.19 pounds; kit gross weight 243.99 pounds for freight and rigging planning
• UPC 52575023885 for purchase order and inventory verification

Compatibility

This kit is a matched 2-zone ductless mini-split system. Component compatibility is defined by the kit assembly: indoor units 8733962672 and 8733962673 are paired with outdoor unit 8733962696. Do not substitute individual components without verifying system matching with the manufacturer.

Installation Notes

Installation should be performed by a licensed HVAC technician holding an EPA Section 608 certification for refrigerant handling. Shut down all power to the installation area before making electrical connections, and follow local mechanical and electrical codes throughout. Line sets are not included and must be sourced separately; size and length should be determined per the equipment specifications. Mounting, refrigerant charging, and startup procedures must follow the manufacturer installation manual provided with the equipment.

Technical Specifications

• System Capacity: 27000 BTU/h
• Number of Zones: 2
• Zone 1 Capacity: 9000 BTU/h
• Zone 2 Capacity: 12000 BTU/h
• Indoor Unit 1 Part Number: 8733962672
• Indoor Unit 2 Part Number: 8733962673
• Outdoor Unit Part Number: 8733962696
• Kit Net Weight: 185.19 pounds
• Kit Gross Weight: 243.99 pounds
• UPC: 52575023885
• Generation: G4
• Line Set Included: No

Standard Information

• Brand: BOSCH
• Manufacturer Part Number: 8733980488
