Bosch 8733980482 27K Btu 2-zone Mini Split System

Product Description

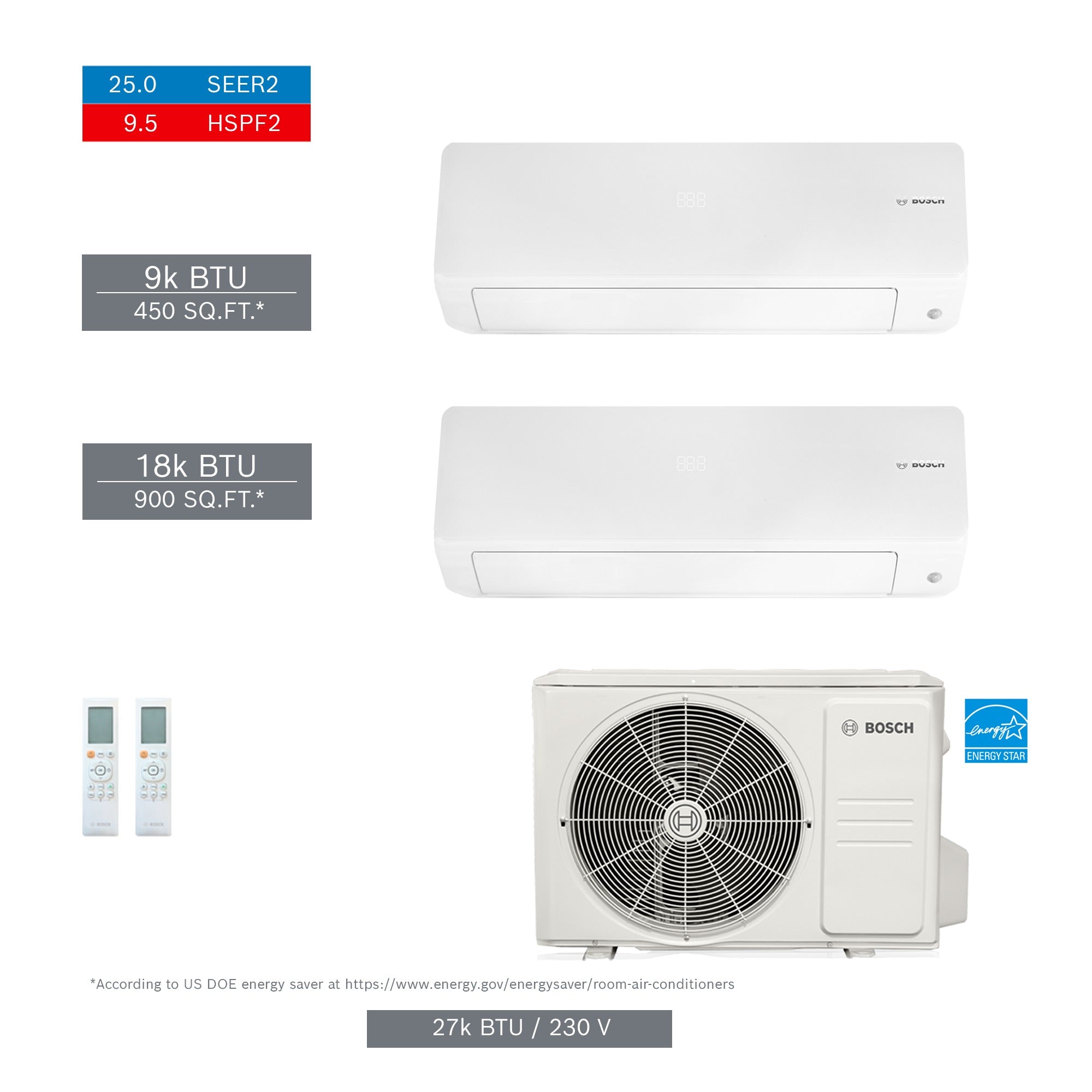

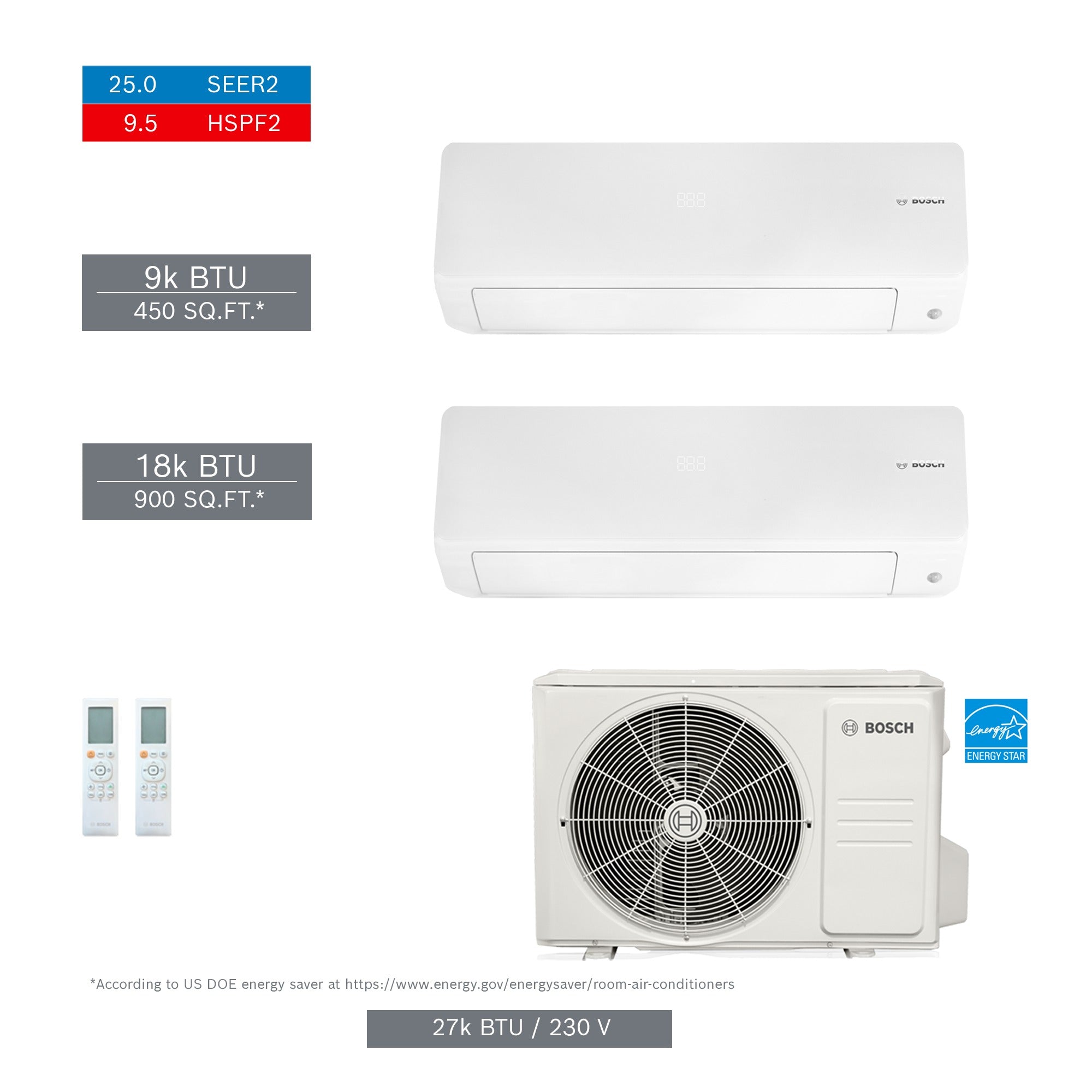

The BOSCH 8733980482 is a 27,000 BTU multi-zone ductless mini split system configured for two indoor zones. The kit includes one 9,000 BTU indoor unit and one 18,000 BTU indoor unit paired with a single outdoor condensing unit. This system is designed for residential and light commercial applications where independent zone control is required without ductwork. HVAC technicians install this type of system when zoning flexibility, compact footprint, and individual room temperature control are priorities. The kit ships as a matched assembly for simplified commissioning.

This two-zone mini split configuration is suited for residential installations covering multiple rooms or distinct spaces such as a primary bedroom paired with a living area, or similar split-occupancy layouts. The 9,000 BTU and 18,000 BTU indoor units allow different capacity distribution across zones depending on room size and load. The outdoor unit (part number 8733962696) is matched to both indoor units (8733962672 and 8733962674) as a factory-assembled kit. No line set is included with this kit.

Key Features

• Two-zone ductless configuration with 9,000 BTU and 18,000 BTU indoor unit pairing
• Total system capacity of 27,000 BTU
• Factory-matched kit: outdoor unit and both indoor units sold together as a set
• No line set included — line sets must be sourced separately
• Compact ductless design supports retrofit and new construction installs

Compatibility

This kit includes indoor units 8733962672 and 8733962674 and outdoor unit 8733962696, sold as a matched multi-zone assembly. No additional compatible model numbers or system families were specified in the product data.

Installation Notes

Installation must be performed by a licensed HVAC technician with EPA 608 certification for refrigerant handling. Power down all circuits before connecting any wiring to indoor or outdoor units. Line sets are not included and must be selected based on run length and system requirements. Follow local mechanical and electrical codes, including applicable sections of the NEC, for disconnect, wiring, and mounting requirements.

Technical Specifications

• System Capacity: 27,000 BTU/h
• Zone Count: 2
• Indoor Unit 1 Capacity: 9,000 BTU/h
• Indoor Unit 2 Capacity: 18,000 BTU/h
• Indoor Unit 1 Part Number: 8733962672
• Indoor Unit 2 Part Number: 8733962674
• Outdoor Unit Part Number: 8733962696
• Kit Net Weight: 189.6 pounds
• Kit Gross Weight: 251.27 pounds
• UPC: 52575023823

Standard Information

• Brand: BOSCH
• Manufacturer Part Number: 8733980482
