Bosch 8733980478 36k Btu 2-zone Mini-split Kit

Product Description

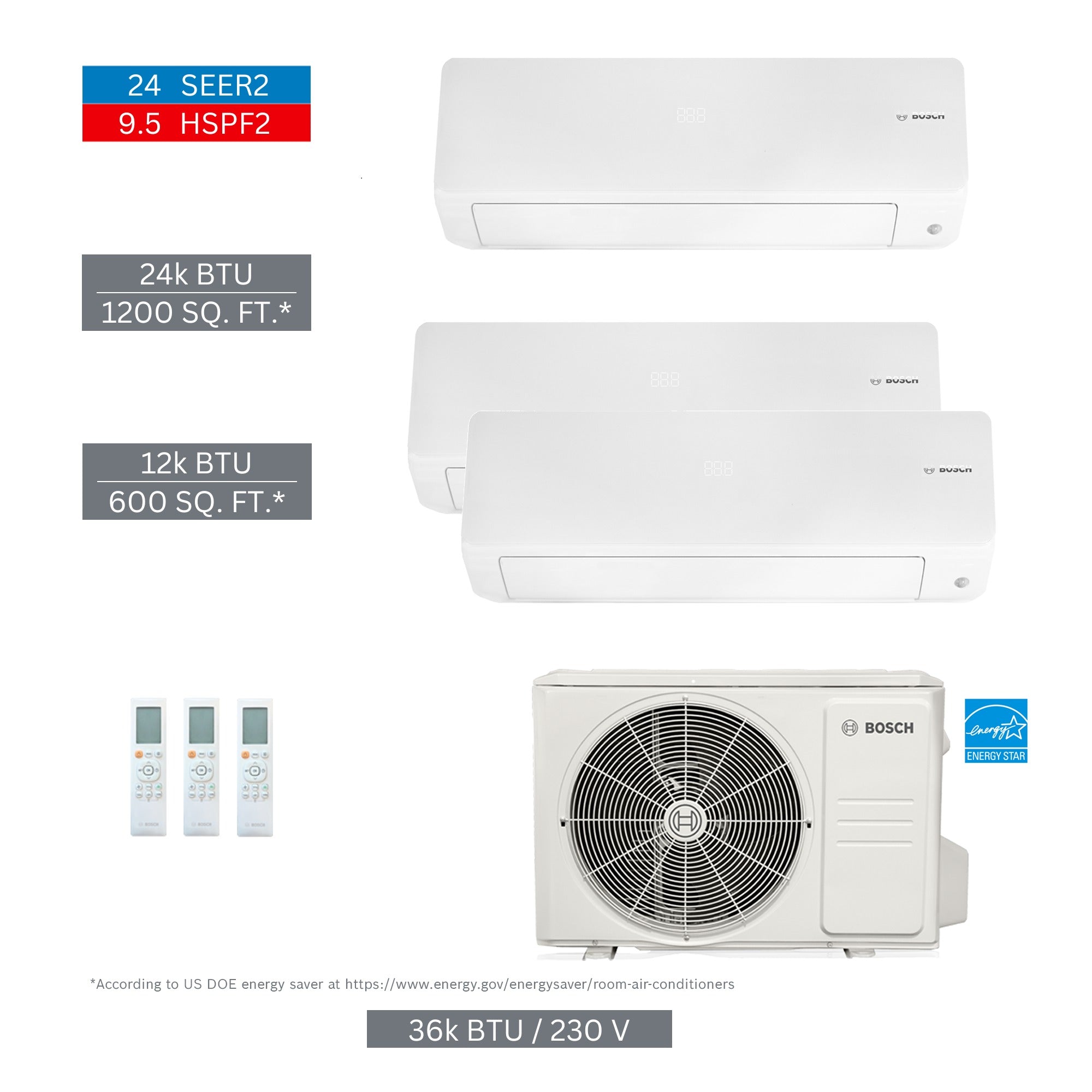

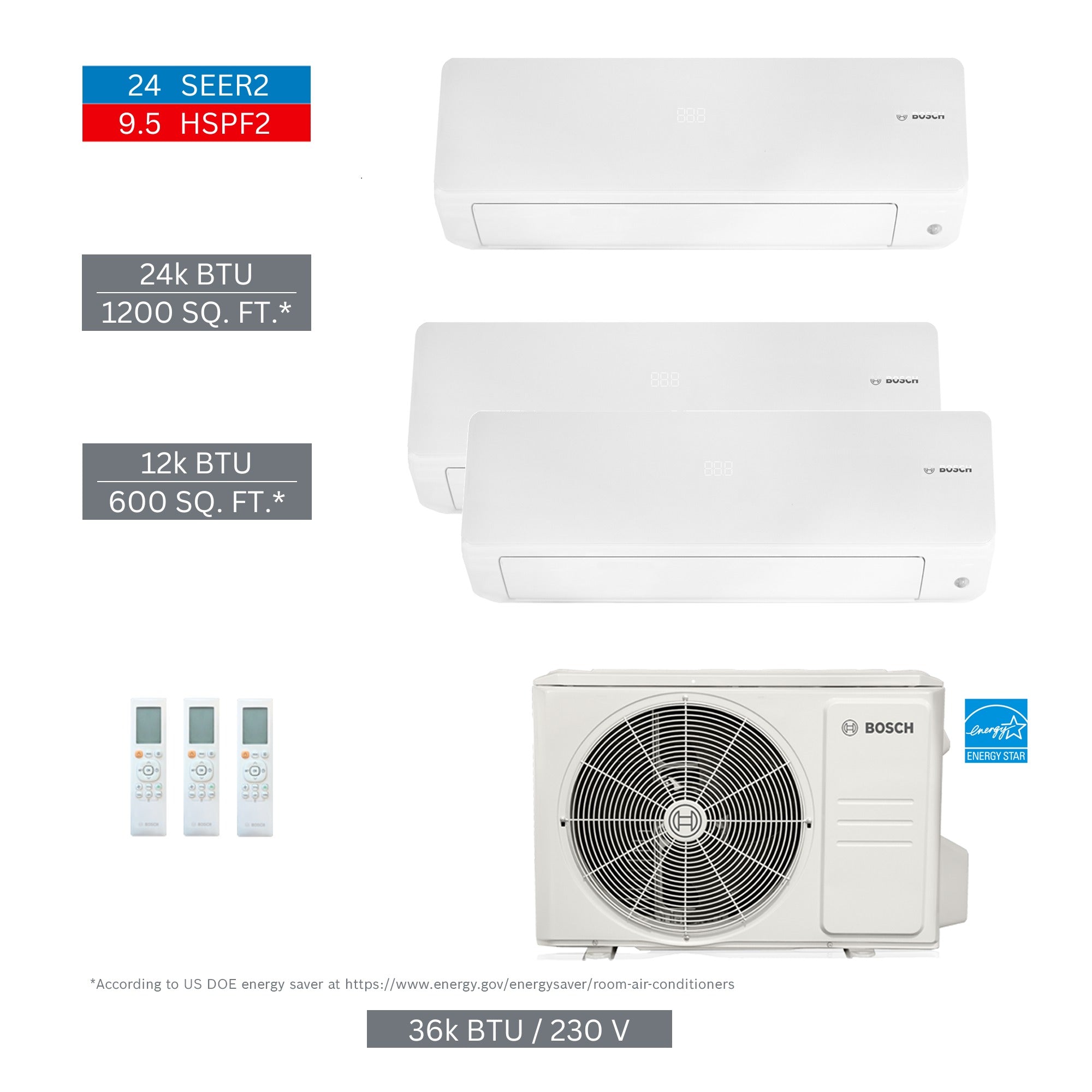

The BOSCH 8733980478 is a 2-zone mini-split system kit rated at 36,000 BTU/h total capacity. The kit bundles one outdoor unit with two indoor air handlers — one 24,000 BTU/h unit and two 12,000 BTU/h units — into a single orderable package. This configuration is engineered for multi-zone ductless heating and cooling applications where independent temperature control across rooms or areas is required. Licensed HVAC technicians install and commission this type of system.

This kit is suited for residential and light-commercial ductless installations where two separate zones need to be served from a single outdoor condensing unit. Typical applications include multi-room residential retrofits, additions, or new construction where running ductwork is impractical. The included components are the outdoor unit (MPN 8733962697), one 24,000 BTU/h indoor unit (MPN 8733962675), and two 12,000 BTU/h indoor units (MPN 8733962673).

Key Features

• 36,000 BTU/h total system capacity across 2 zones
• Includes one outdoor unit and three indoor air handlers in a single kit
• Zone 1 indoor unit rated at 24,000 BTU/h for larger spaces
• Zone 2 includes two indoor units each rated at 12,000 BTU/h
• Kit net weight of 235.45 pounds supports straightforward staging and logistics planning

Compatibility

This kit includes ODU 8733962697, IDU 8733962675 (x1), and IDU 8733962673 (x2) as factory-matched components. No line set is included with this configuration.

Installation Notes

Installation must be performed by a licensed HVAC technician with EPA Section 608 certification for refrigerant handling. Power must be disconnected at the breaker before any wiring work is performed on the indoor or outdoor units. Line sets, mounting hardware, and electrical disconnect equipment are not included and must be sourced separately. Follow all local mechanical and electrical codes during installation and commissioning.

Technical Specifications

• Total System Capacity: 36,000 BTU/h
• Number of Zones: 2
• Zone 1 Indoor Unit MPN: 8733962675 (24,000 BTU/h, qty 1)
• Zone 2 Indoor Unit MPN: 8733962673 (12,000 BTU/h, qty 2)
• Outdoor Unit MPN: 8733962697 (qty 1)
• Kit Net Weight: 235.45 pounds
• Kit Gross Weight: 300 pounds
• UPC: 52575023786

Standard Information

• Brand: BOSCH
• Manufacturer Part Number: 8733980478
