Bosch 8733980476 36000 Btu 2-zone Mini-split Kit

Product Description

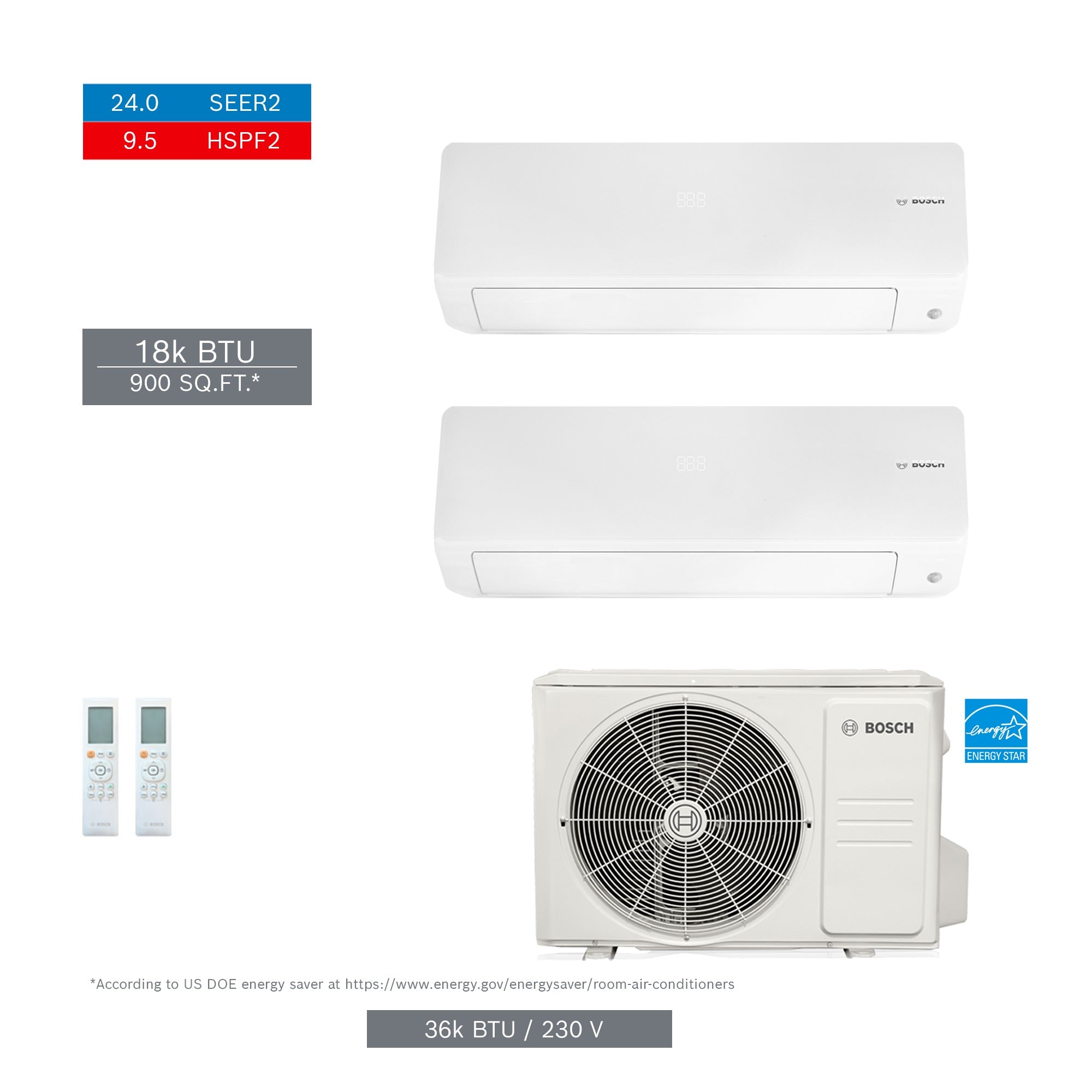

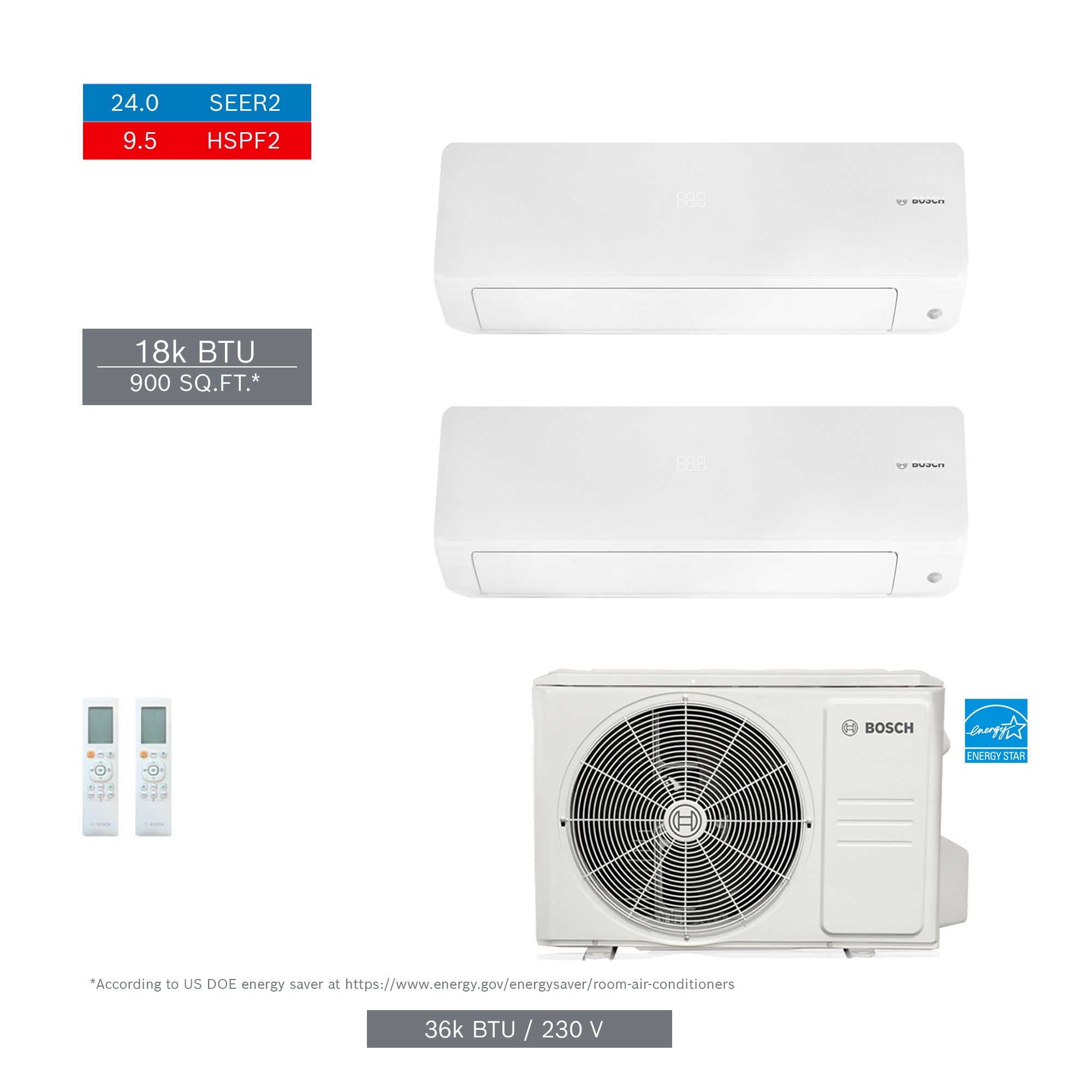

The BOSCH 8733980476 is a 2-zone ductless mini-split system kit rated at 36000 BTU/h, designed for residential and light-commercial applications requiring independent climate control in two separate spaces. The kit includes two 18000 BTU/h indoor air handlers and one matched outdoor condensing unit, providing a complete, factory-matched assembly ready for installation by a licensed HVAC technician. This generation-4 refrigerant system configuration ships without a line set, allowing the installing contractor to size and supply line sets appropriate to each job site layout.

This kit is suited for multi-room residential installations, additions, or small commercial spaces where zoned comfort without ductwork is required. Each of the two indoor units operates as an independent zone, allowing different temperature setpoints in each area served. The absence of a pre-installed line set makes this configuration flexible for jobs where run lengths vary between zones. A licensed HVAC technician should verify refrigerant type, line set sizing, and electrical service requirements before beginning the installation.

Key Features

• 36000 BTU/h total system capacity split across two independent zones
• Includes two 18000 BTU/h indoor units (IDU 8733962674 x2) and one outdoor unit (ODU 8733962697 x1)
• Factory-matched components for reliable performance and simplified commissioning
• No line set included, allowing field-supplied line sets sized to actual run lengths
• Generation-4 system configuration

Compatibility

This kit is designed as a matched multi-zone ductless mini-split assembly. Included components are IDU 8733962674 (quantity 2) and ODU 8733962697 (quantity 1). No additional indoor or outdoor unit substitutions are specified in the available product data.

Installation Notes

• Installation must be performed by a licensed HVAC technician holding the appropriate EPA 608 certification for refrigerant handling.
• Disconnect and lock out all electrical power to the installation area before mounting indoor or outdoor units or making any electrical connections.
• Field-supplied line sets must be sized per the manufacturer specifications and applicable mechanical codes; verify refrigerant type and line set length limits before purchasing materials.
• Follow all local building codes and manufacturer installation instructions for mounting, electrical rough-in, drainage, and refrigerant charging procedures.

Technical Specifications

• System Capacity: 36000 BTU/h total
• Zone Count: 2
• Indoor Unit Capacity (each): 18000 BTU/h
• Indoor Unit Part Number: 8733962674 (quantity 2)
• Outdoor Unit Part Number: 8733962697 (quantity 1)
• Kit Net Weight: 196.21 pounds
• Kit Gross Weight: 251.72 pounds
• UPC: 52575023762

Standard Information

• Brand: BOSCH
• Manufacturer Part Number: 8733980476
